Home >> Chevrolet >> 1992 >> Camaro V6-191 3.1L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Cable >> Locations

Ignition Cable: Locations

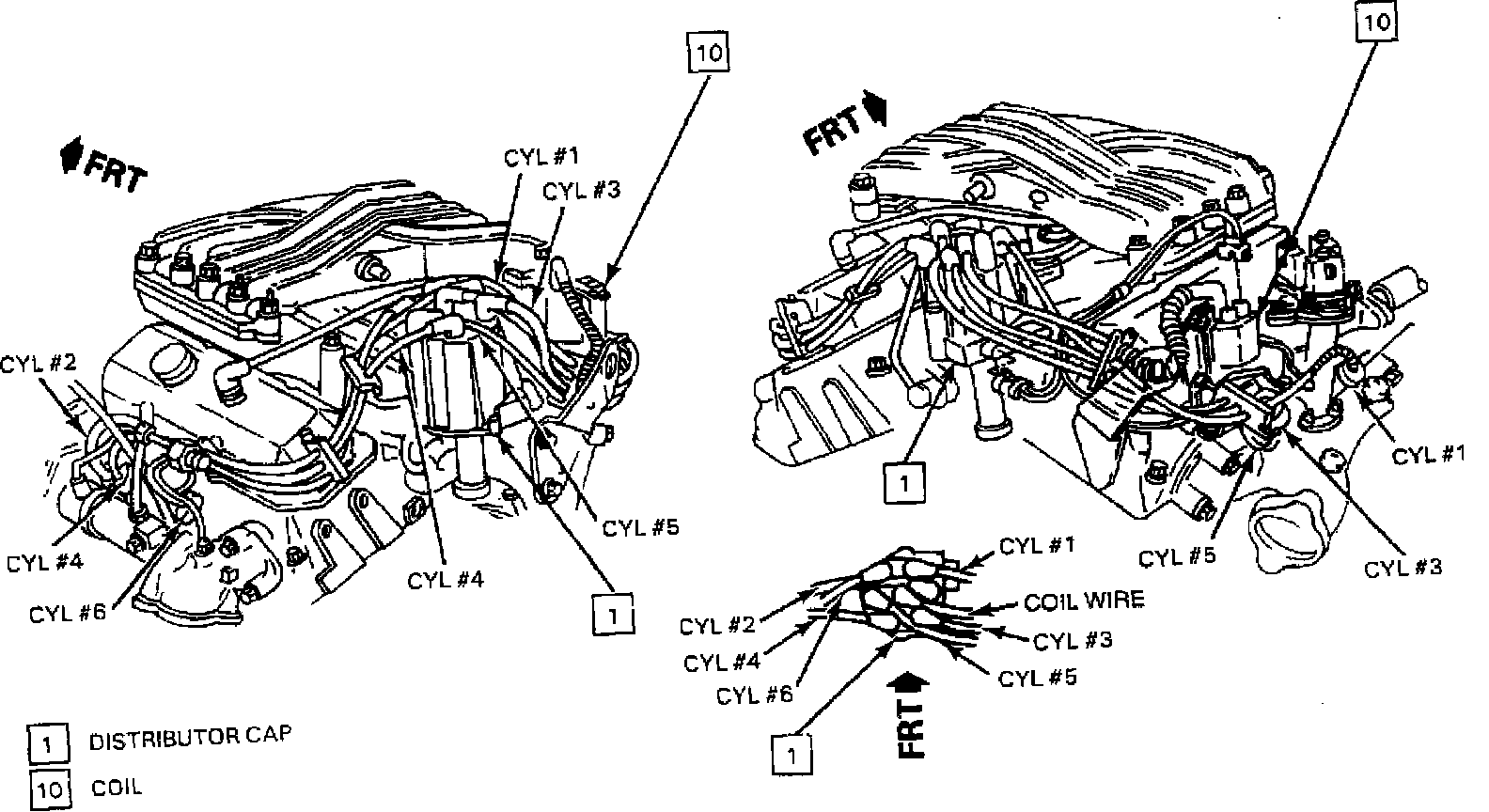

Spark Plug Wire Routing:

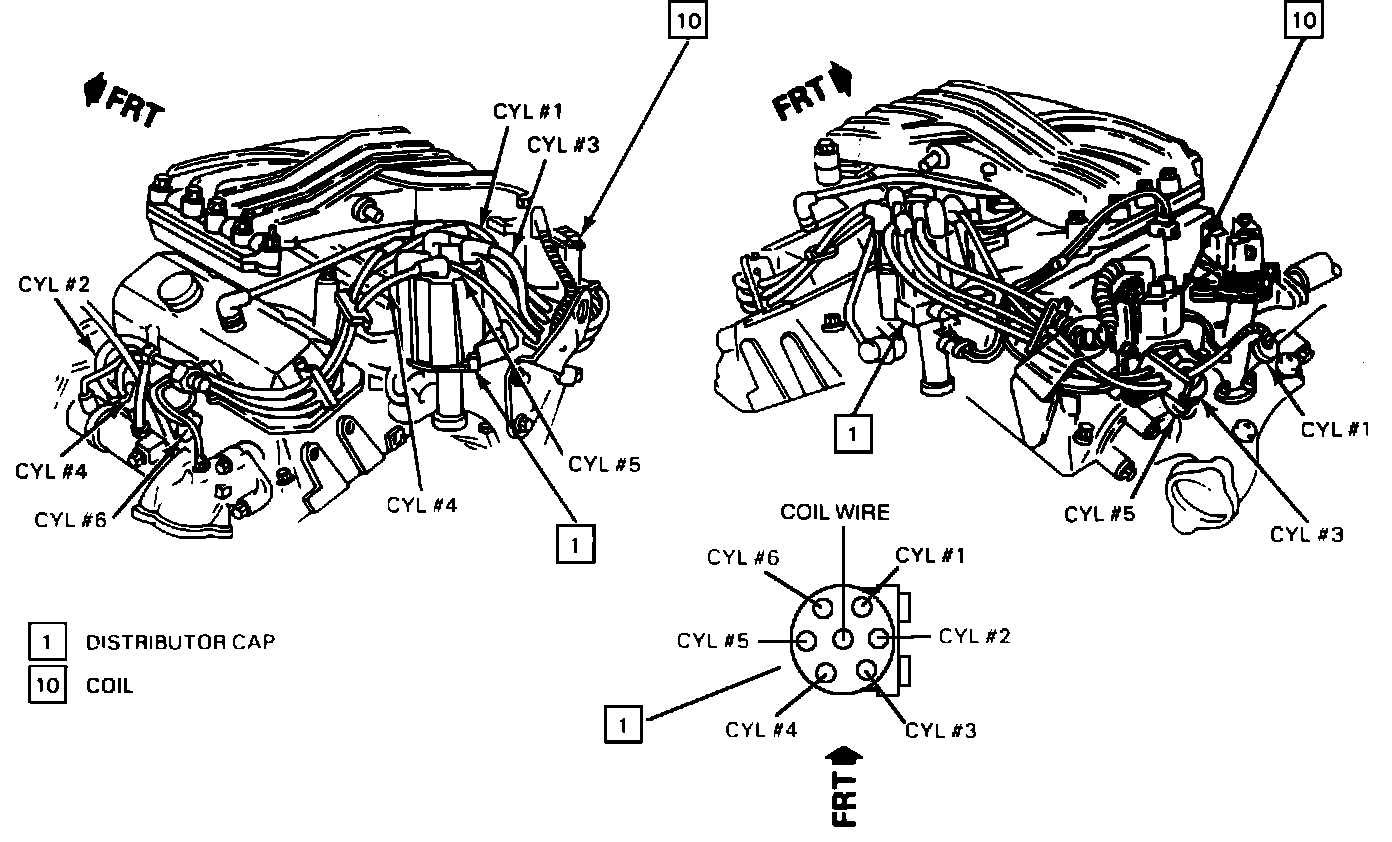

Spark Plug Wire Routing:
