Engine Control Module

Multi-Port Fuel Injection:



Multi-Port Fuel Injection:

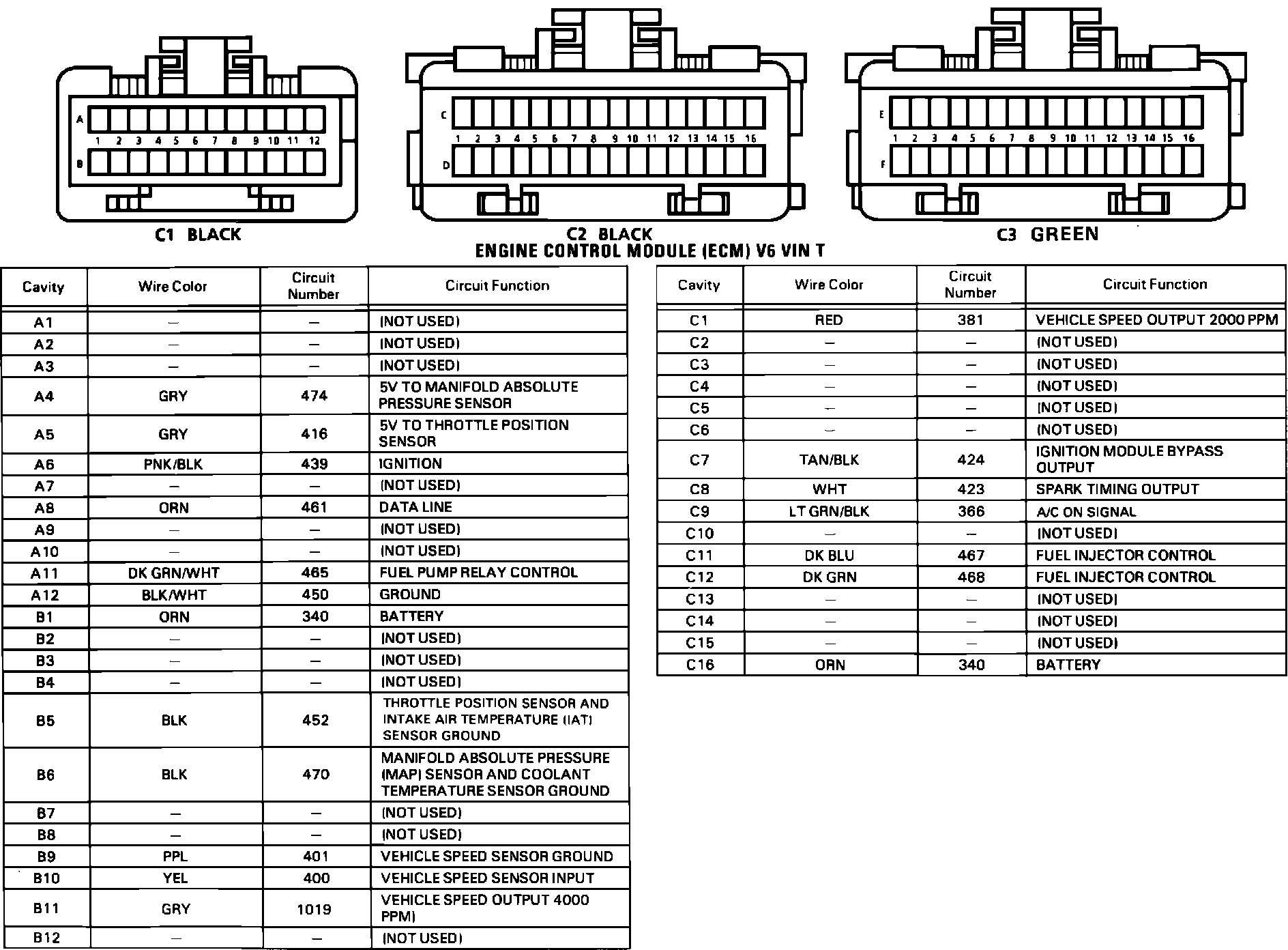

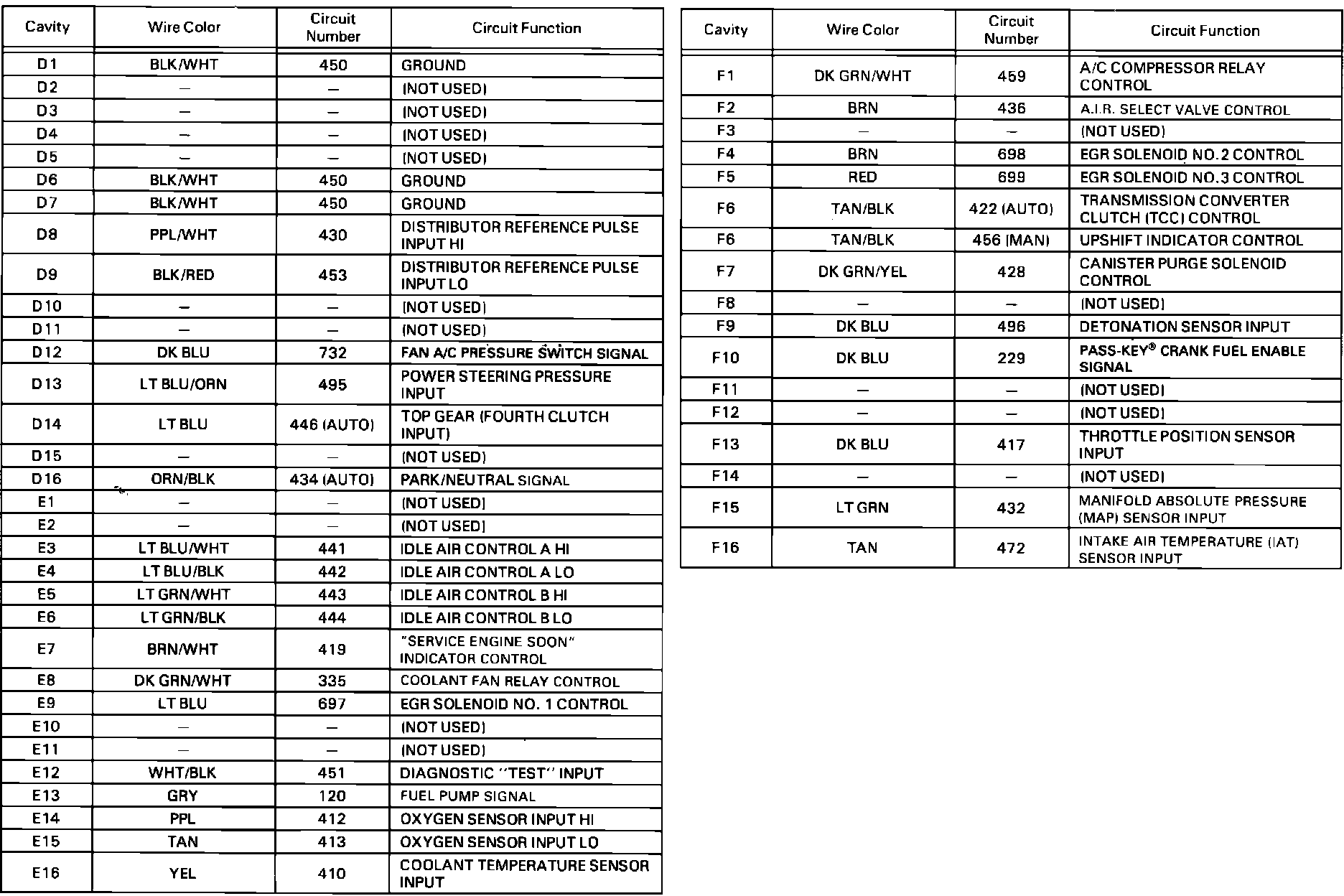

Engine Control Module (ECM) Connectors:

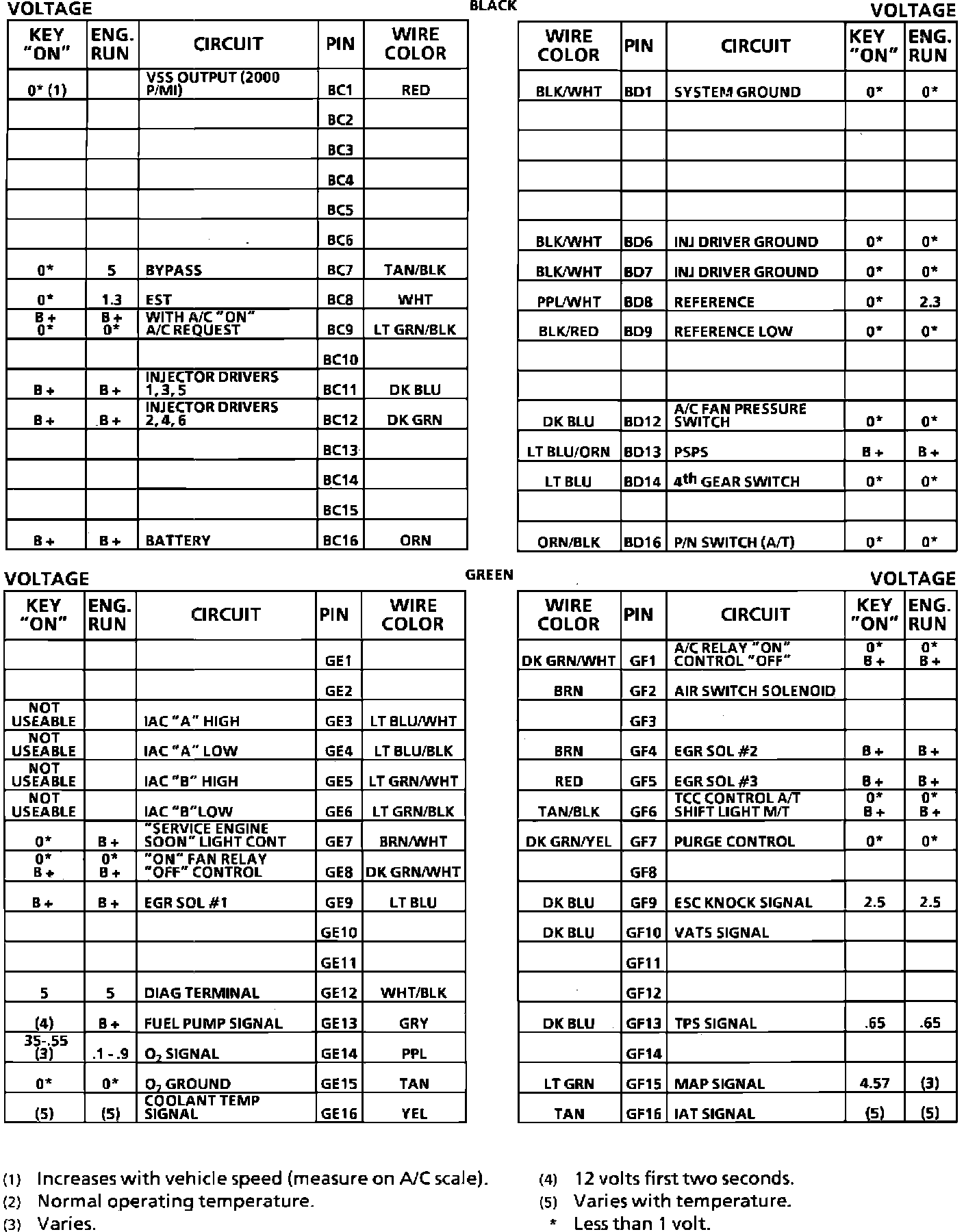

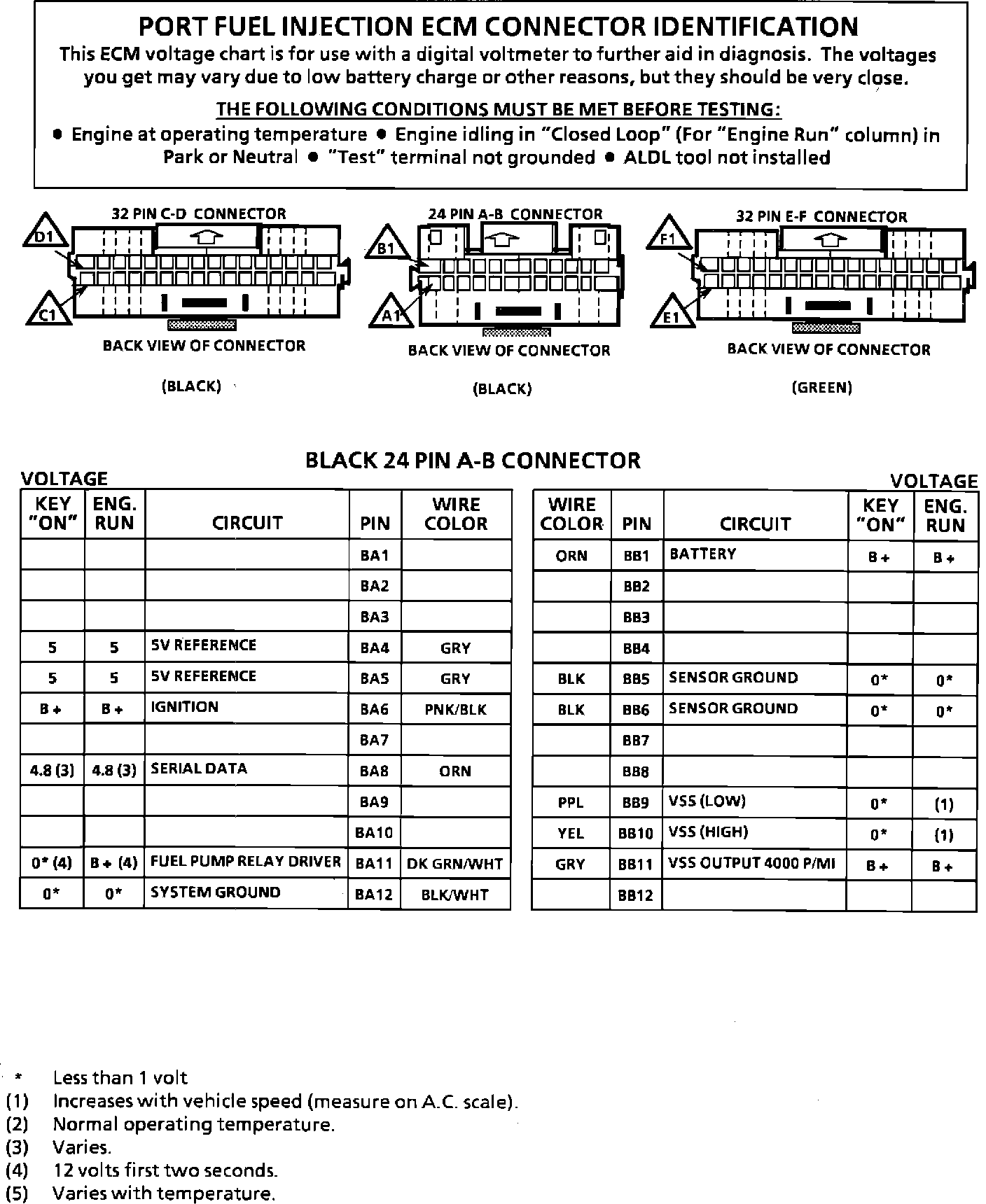

ECM Connector Pin-Out:



ECM Connector Pin-Out:
