LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
1991
>>
Beretta L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
A/C Compressor Control Relay
A/C Compressor Control Relay

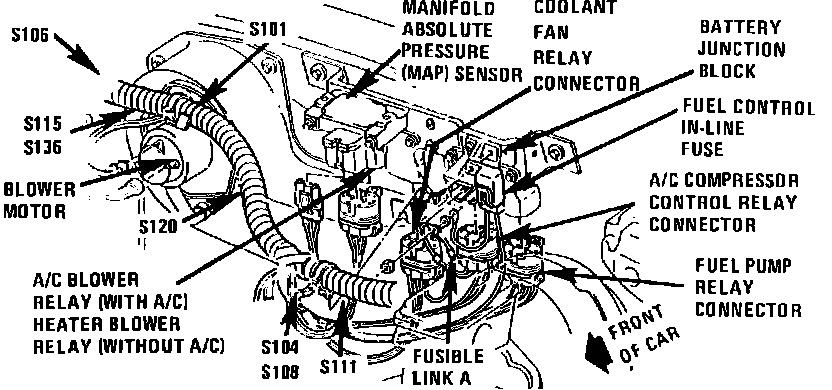

Rear View Of 2.2L:
Rear Of Engine Compartment, On Relay Bracket
Applicable to: 2L/4-134 Engine Compartment. 1991 Models
