Glow Plug

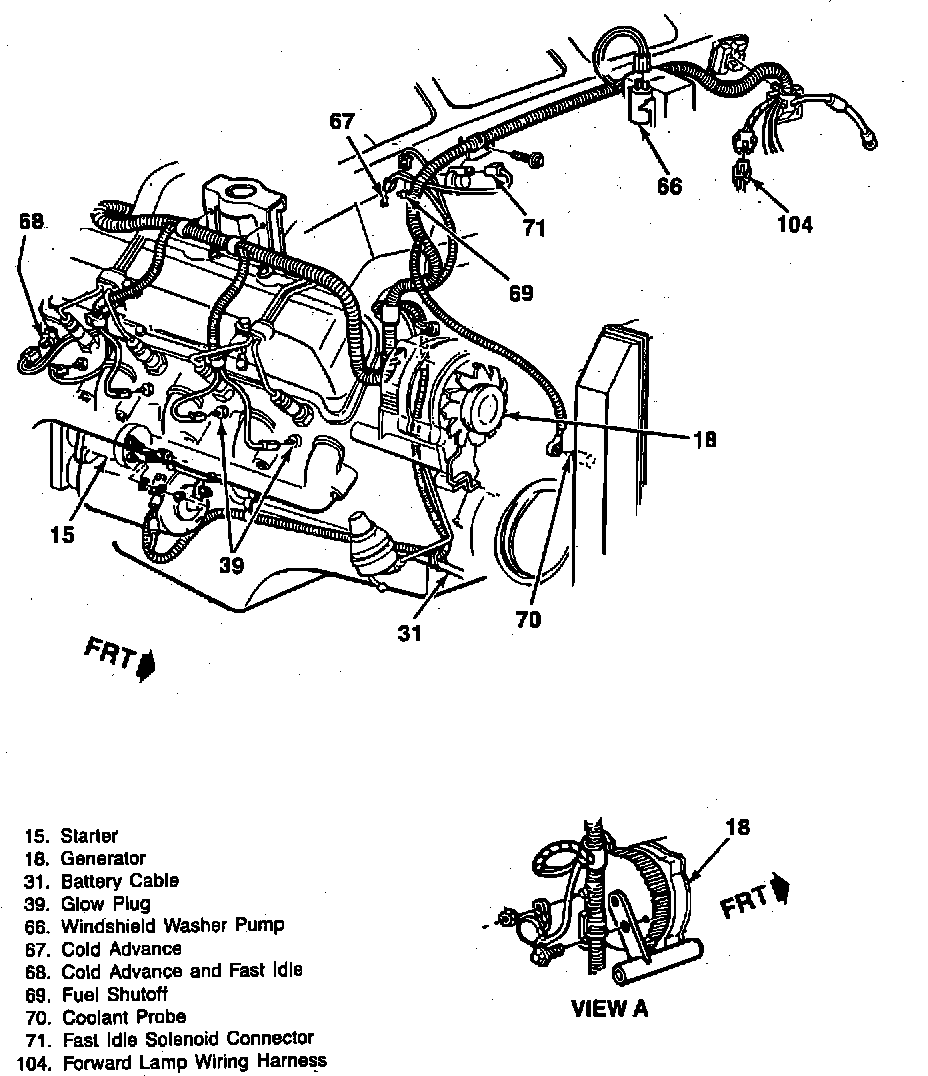

RH Side Of Engine.:




RH Side Of Engine

Applicable to: G Series w/V8-379/6.2L Diesel Engine

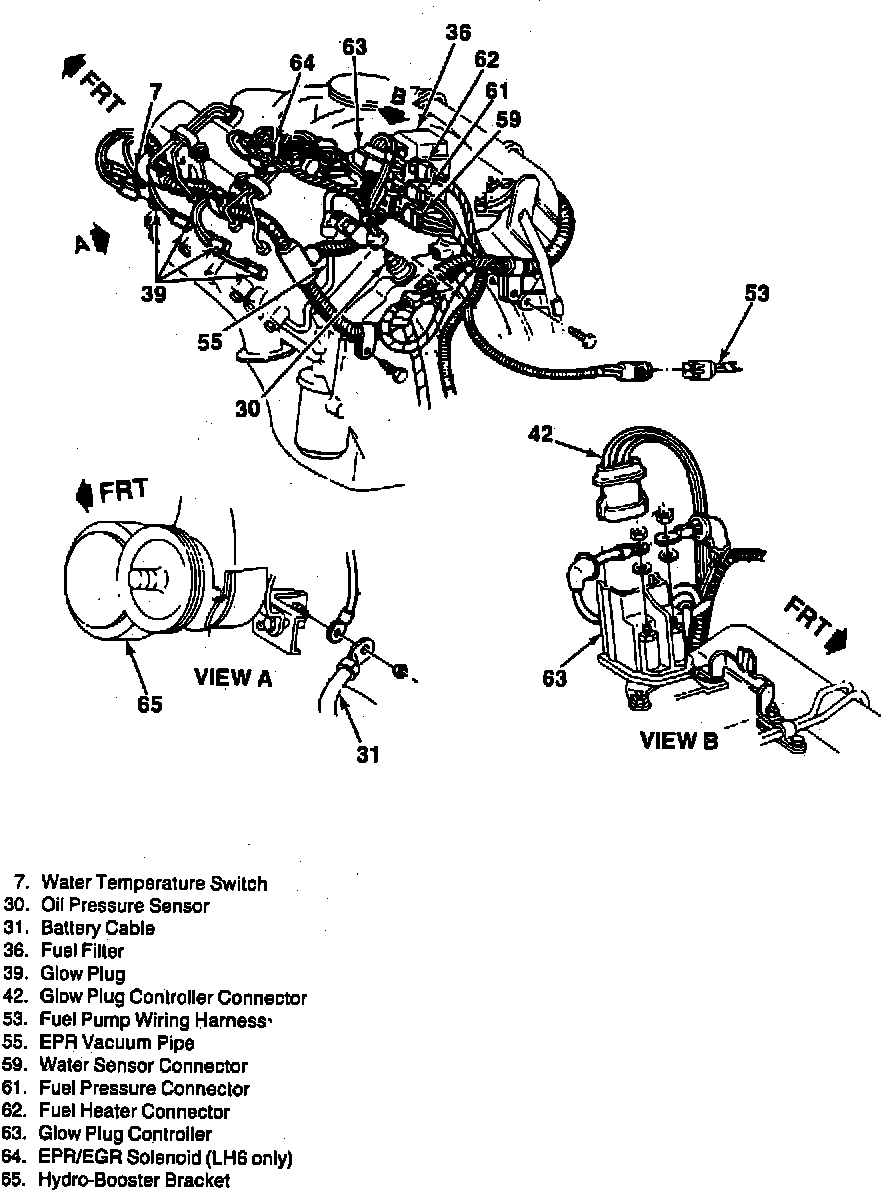

LH Side Of Engine.:




LH Side Of Engine

Applicable to: G Series w/V8-379/6.2L Diesel Engine
