Manifold Pressure/Vacuum Sensor: Locations

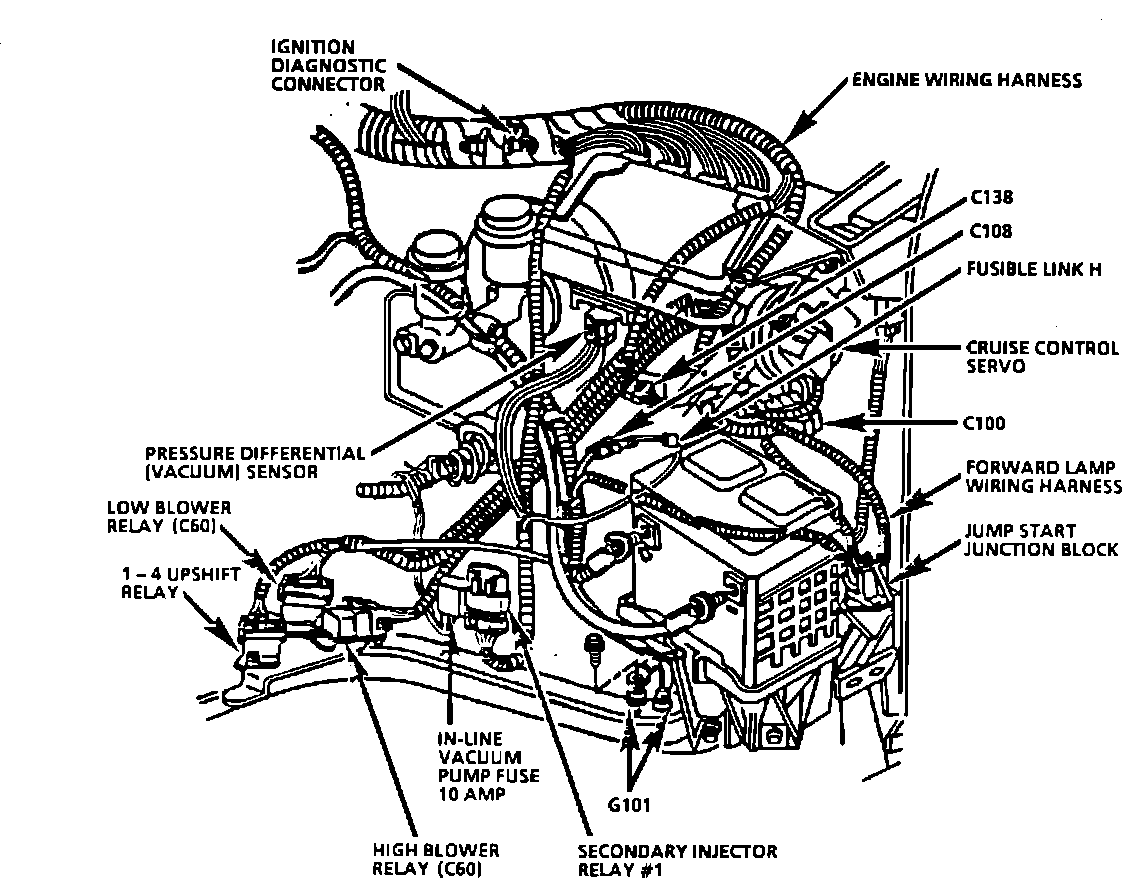

LH Side Of Engine Compartment:




Rear LH Side Of Engine Compartment

Applicable to: 1990
