Home
>>
Chevrolet
>>
1990
>>
Caprice V8-350 5.7L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
System Diagnosis
System Diagnosis

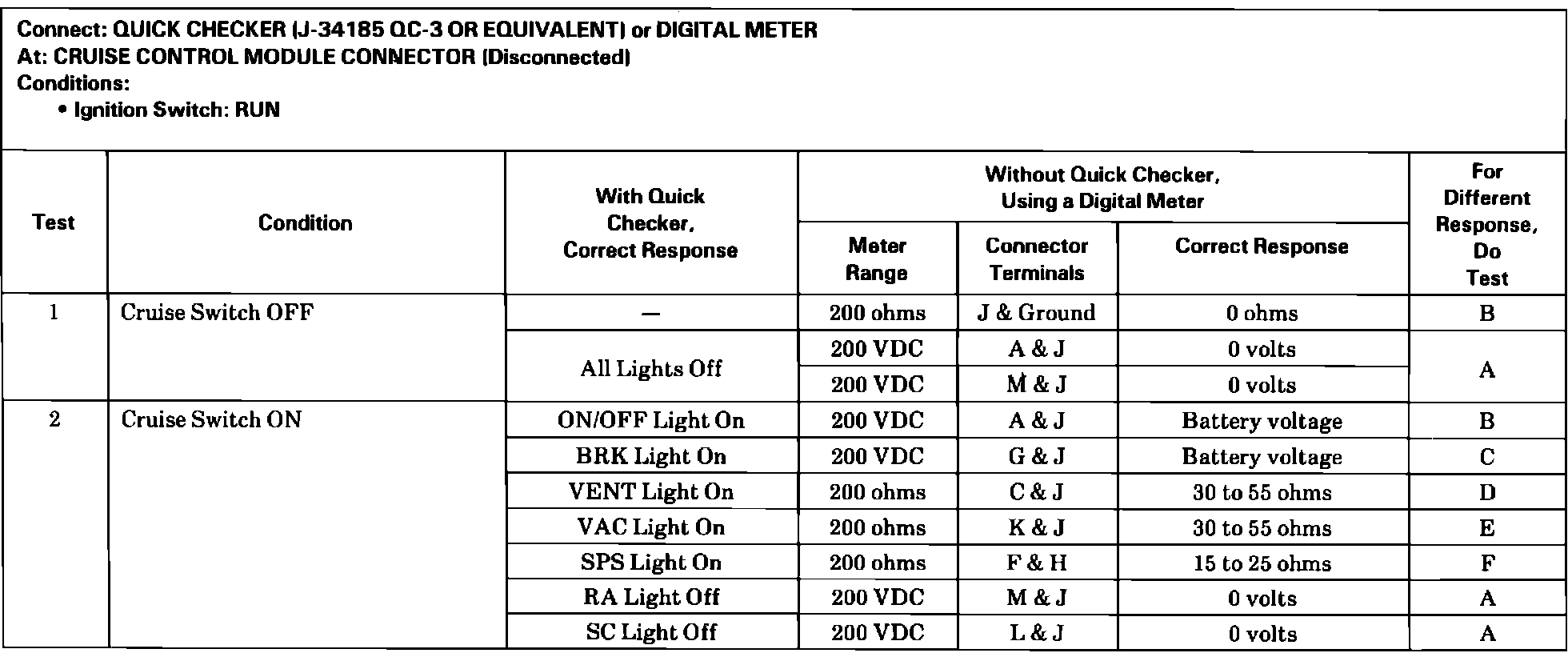

Fig. 5 Cruise Control System Diagnosis Chart (Part 1 Of 2):

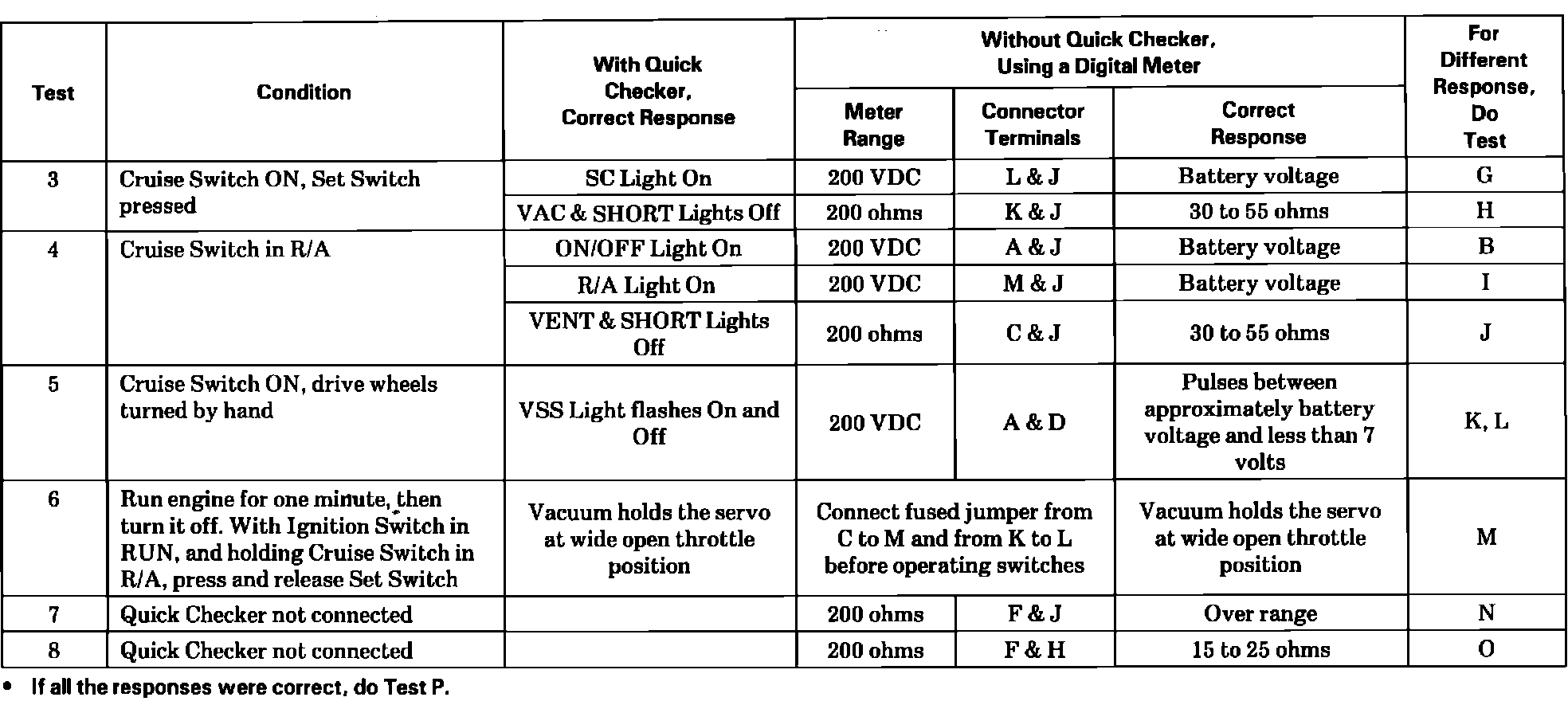

Fig. 5 Cruise Control System Diagnosis Chart (Part 2 Of 2):
