Rear Defogger Timer Relay
Rear Defogger Timer Relay

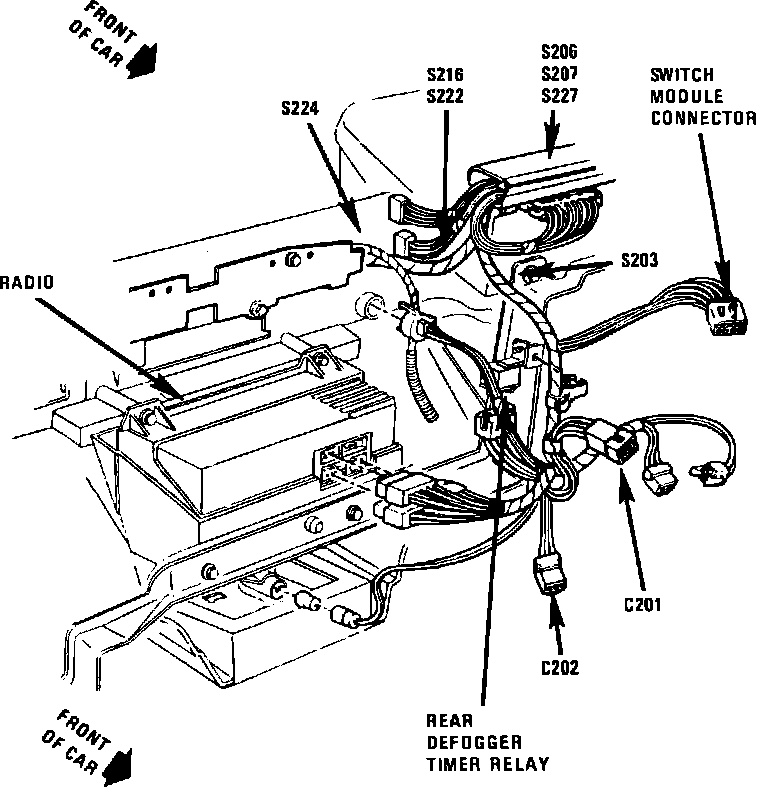

Rear Defogger Timer Relay.:
Behind LH Side Of I/P, On RH Side Of Steering Column Bracket
Applicable to: 1990
