Ignition Cable: Locations

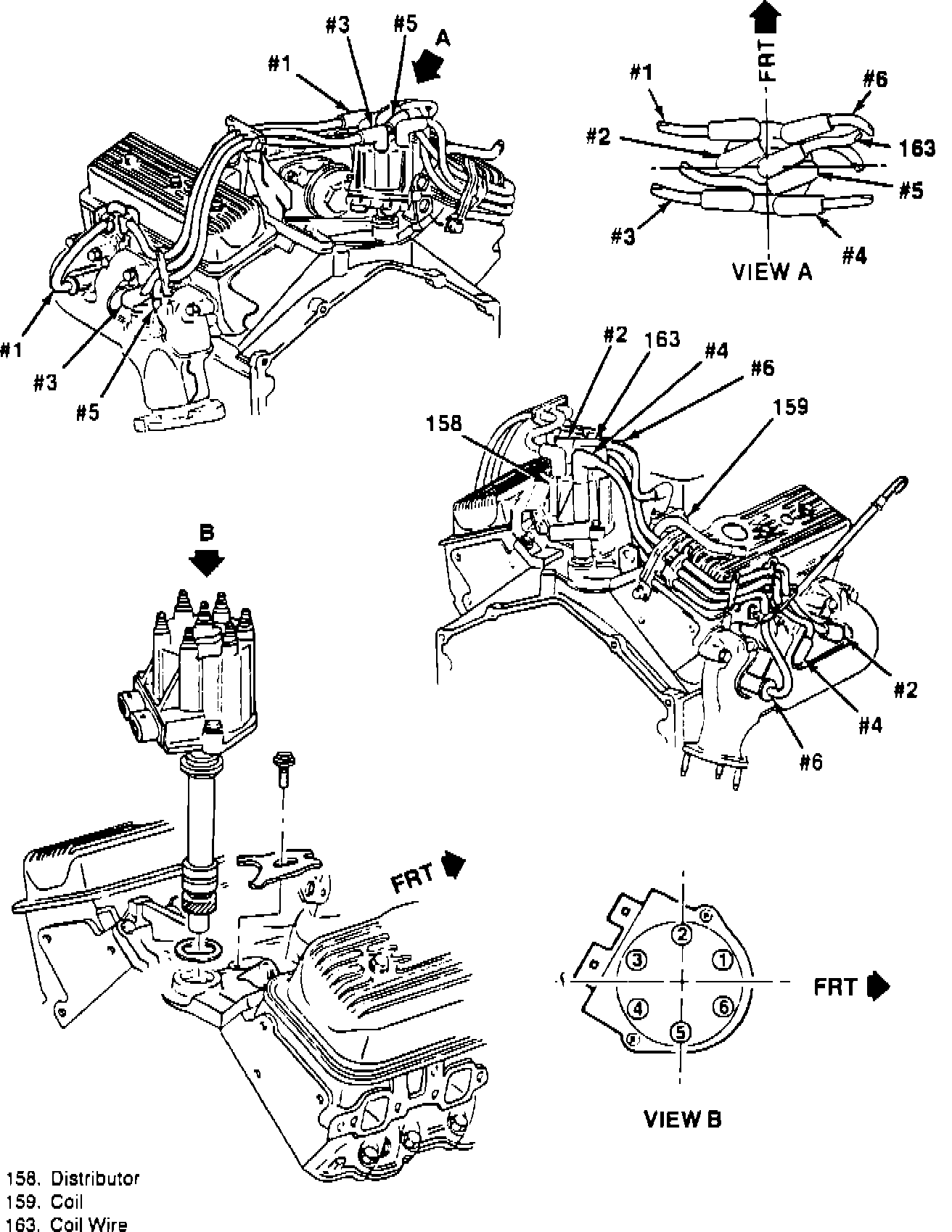

Spark Plug Wire Routing:







158 = DISTRIBUTOR.
159 = COIL.
166 = COIL WIRE.
