Chevrolet
>>
1990
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Specifications
>>

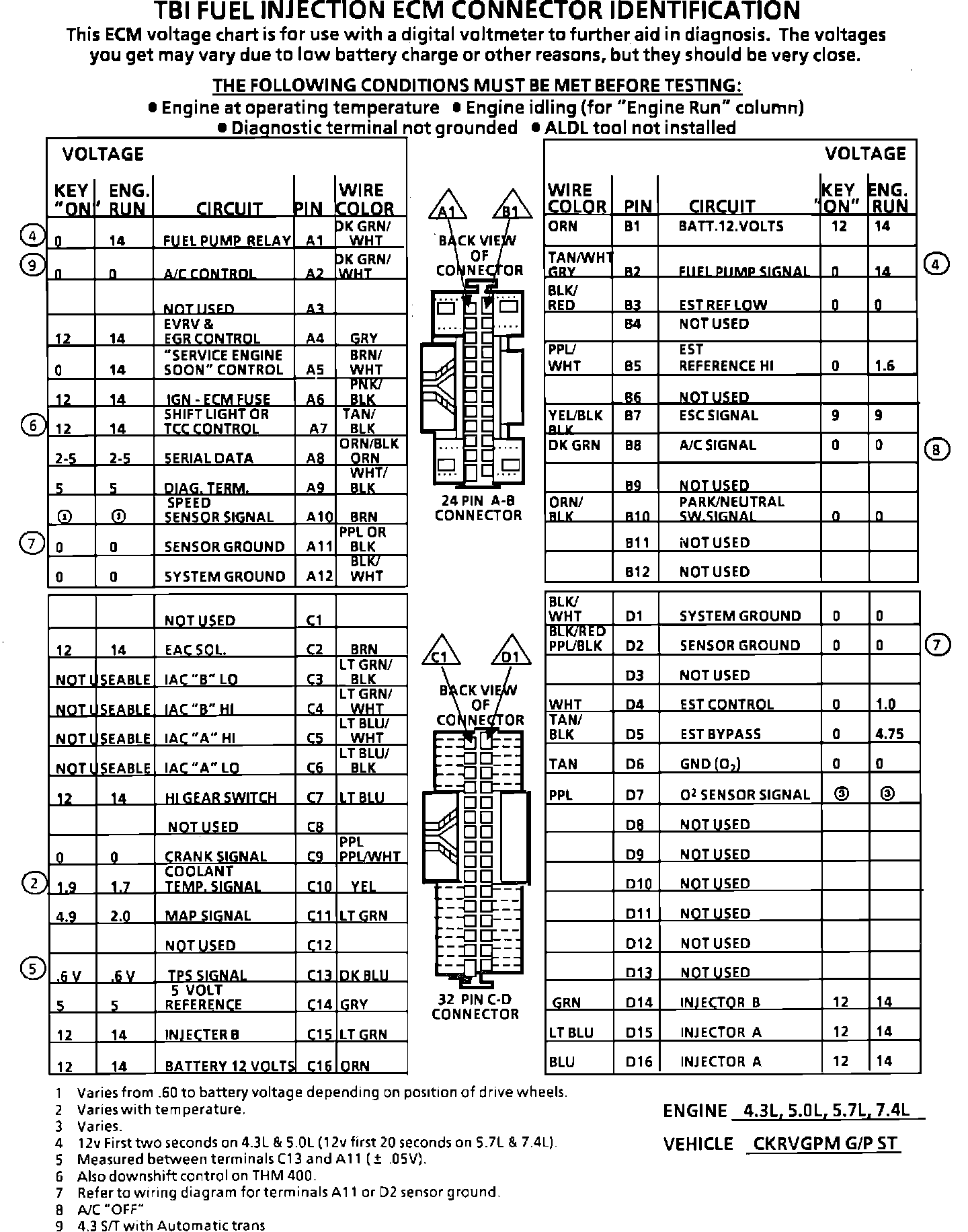

ECM Pinout/Terminal ID Charts
ECM Pinout/Terminal ID Charts
ECM Connector Terminal End View:
