Home >> Chevrolet >> 1990 >> Astro Van M V6-262 4.3L >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Cruise Control Module

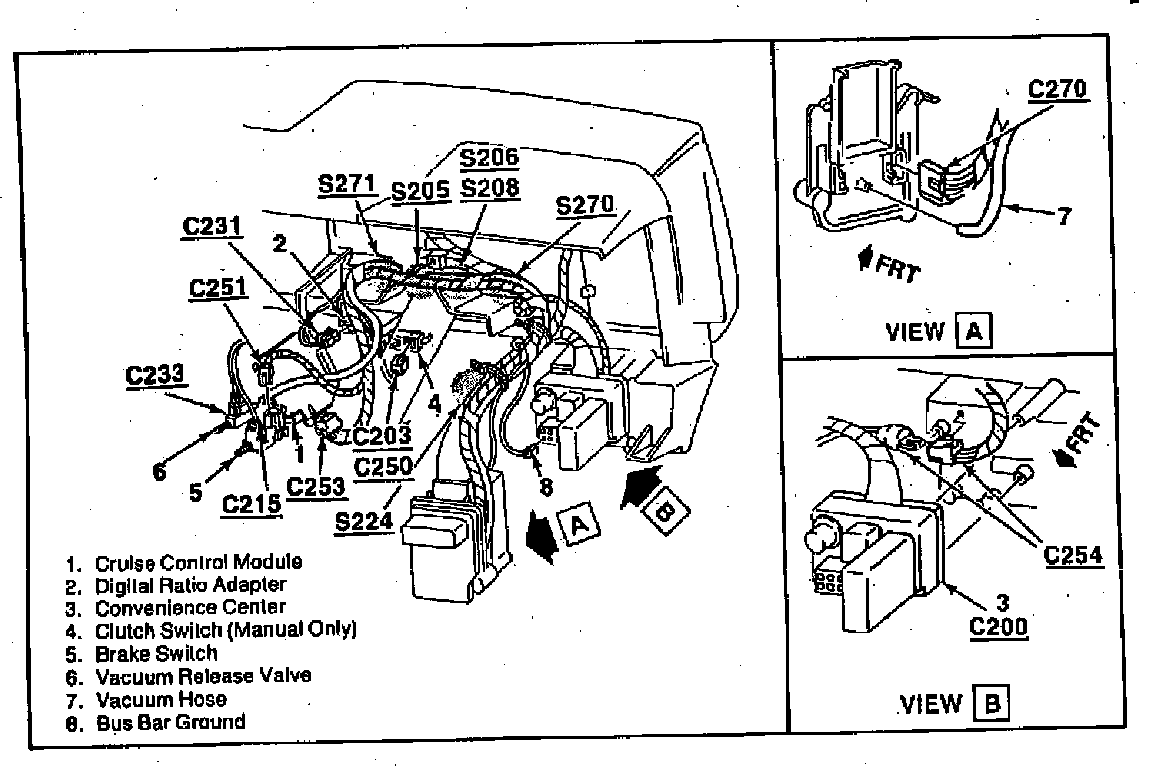

Cruise Control Module

Behind LH Side Of I/P.:




LH Front Of I/P, Near Brake Booster

Applicable to: 1990
