Home >> Chevrolet >> 1990 >> Astro Van M L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Components >> Switches >> Stop Light Switch

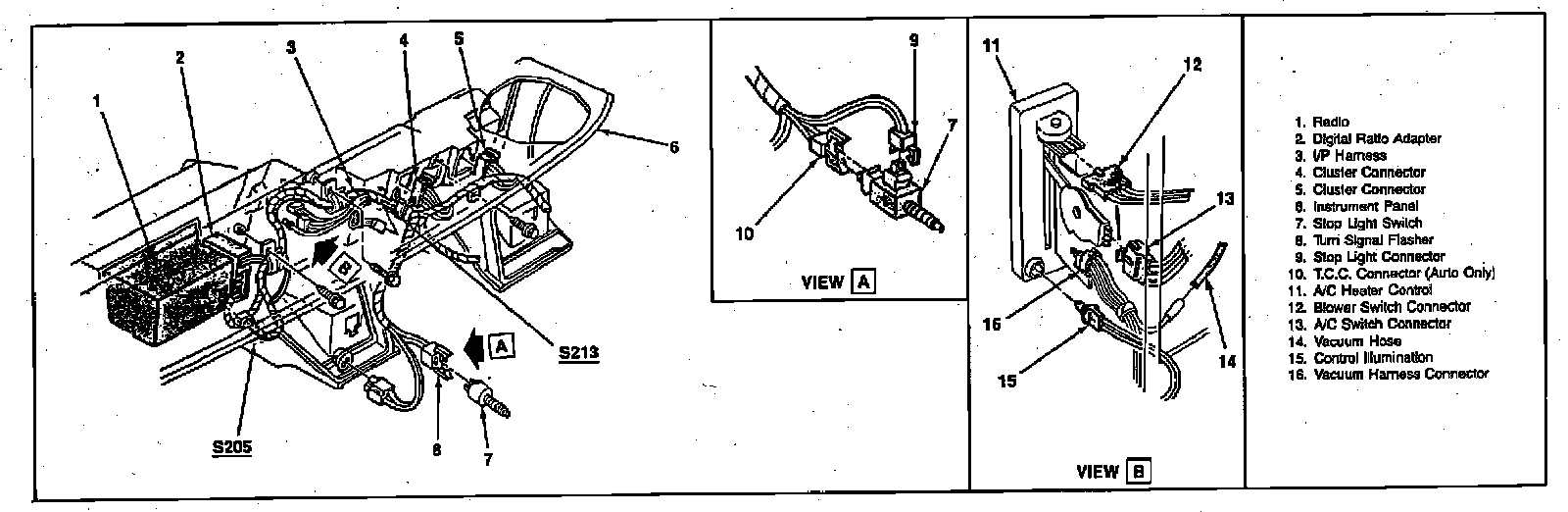

Stop Light Switch

Behind LH Side Of I/P:




Beneath LH Side Of I/P
