System Specifications

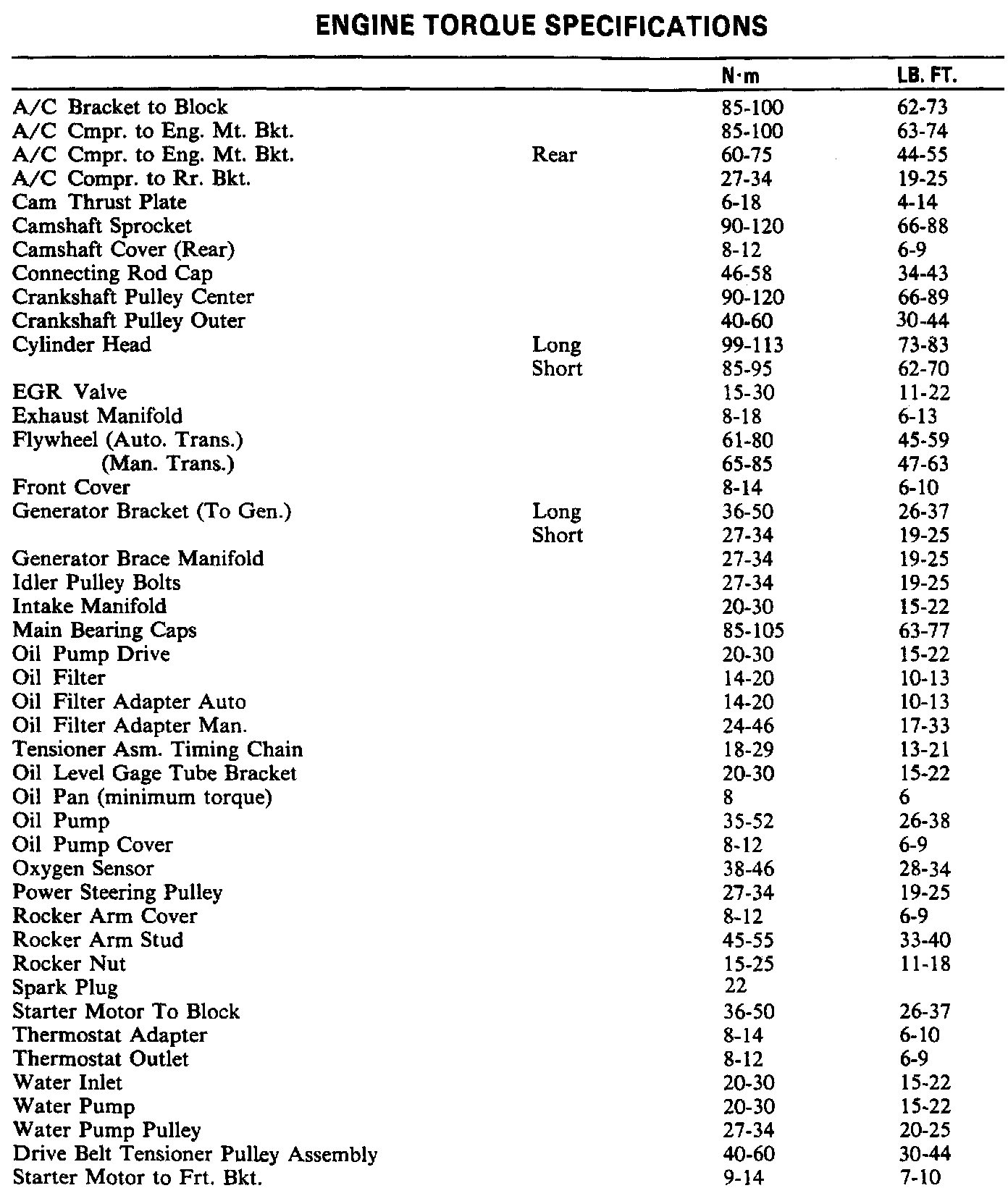

Torque Specifications:

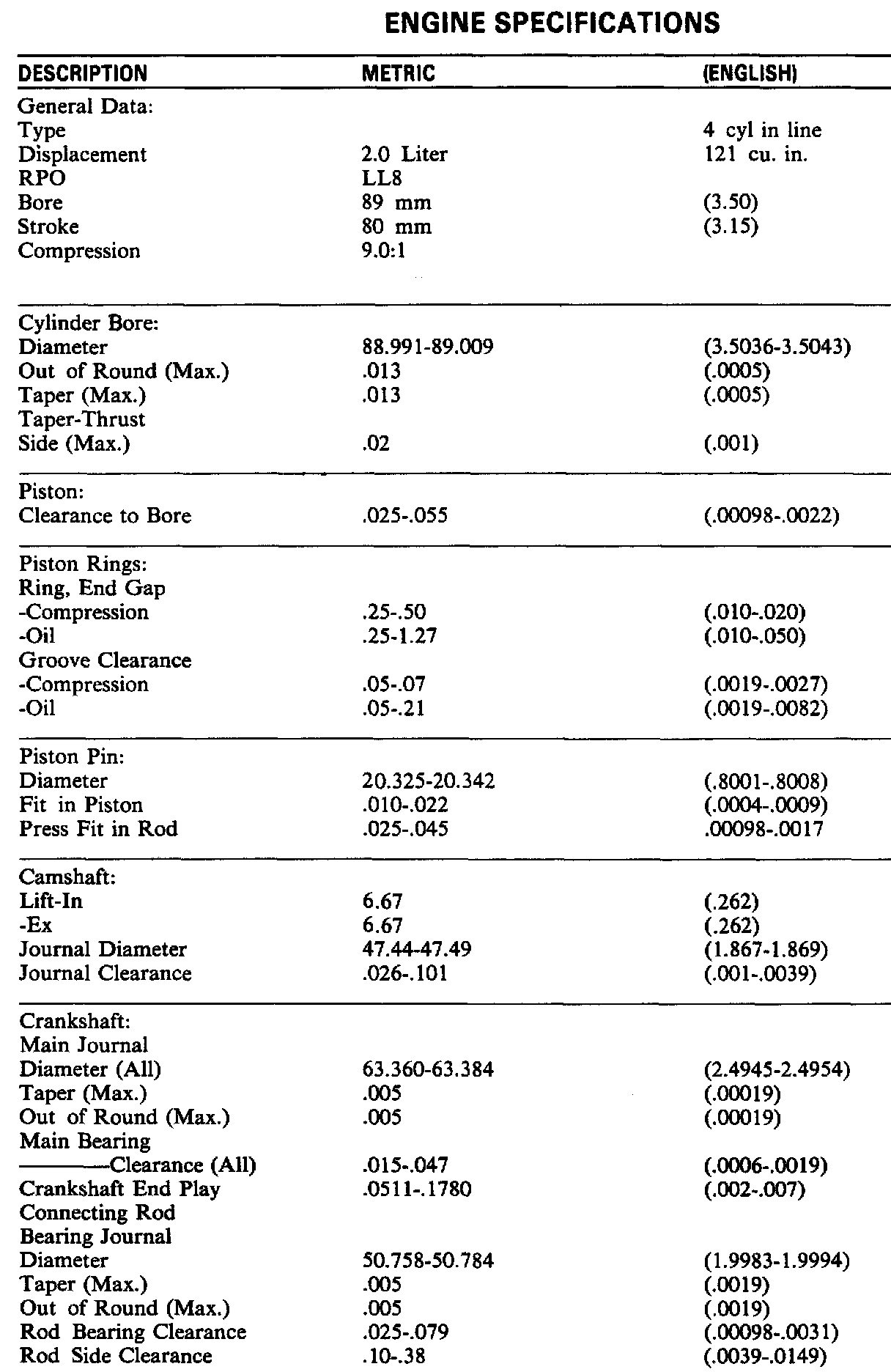

Engine Specifications:

Continued Engine Specifications:

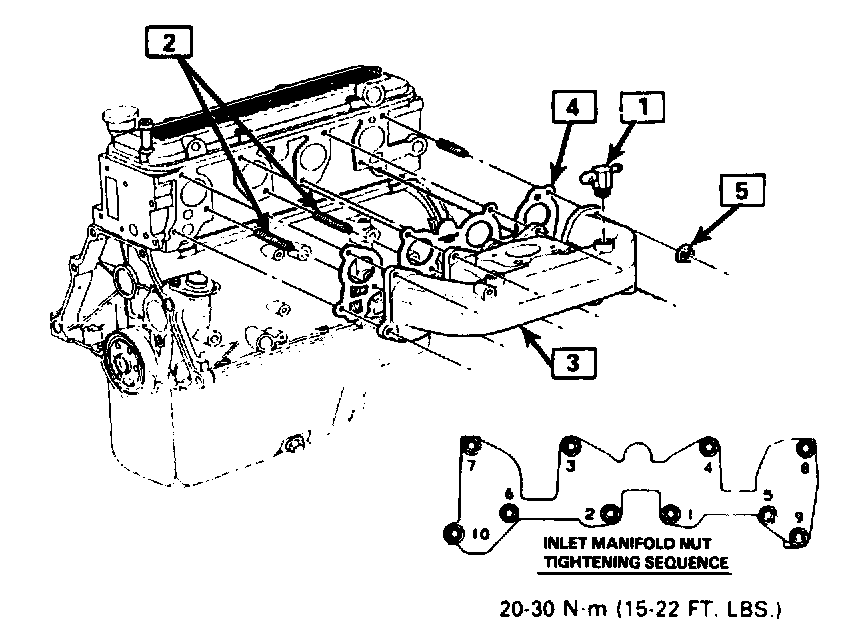

Intake Manifold Sequence:

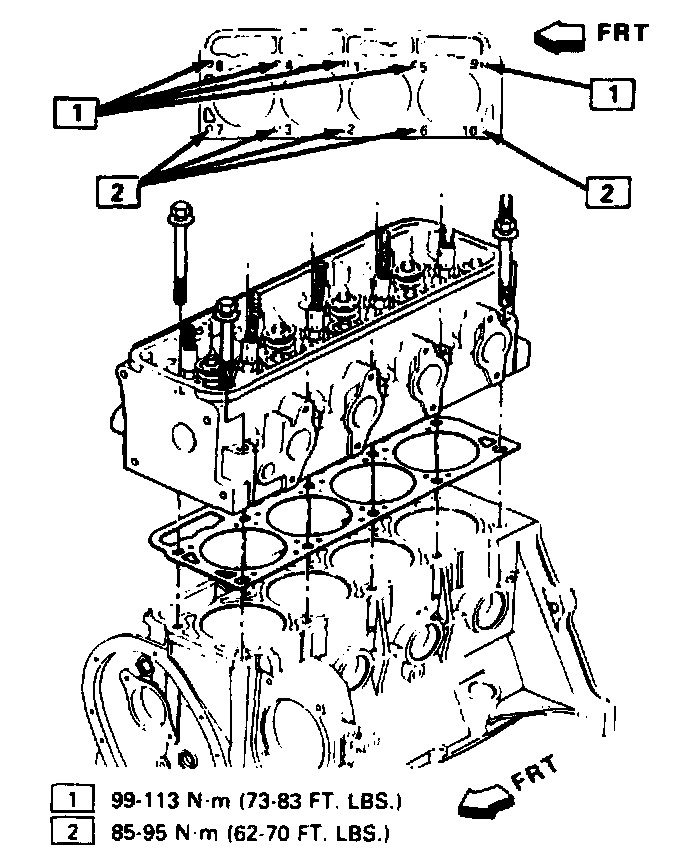

Cylinder Head Sequence:
