Astro Van M L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Compressor HVAC
>>
With A-6 Compressor
With A-6 Compressor

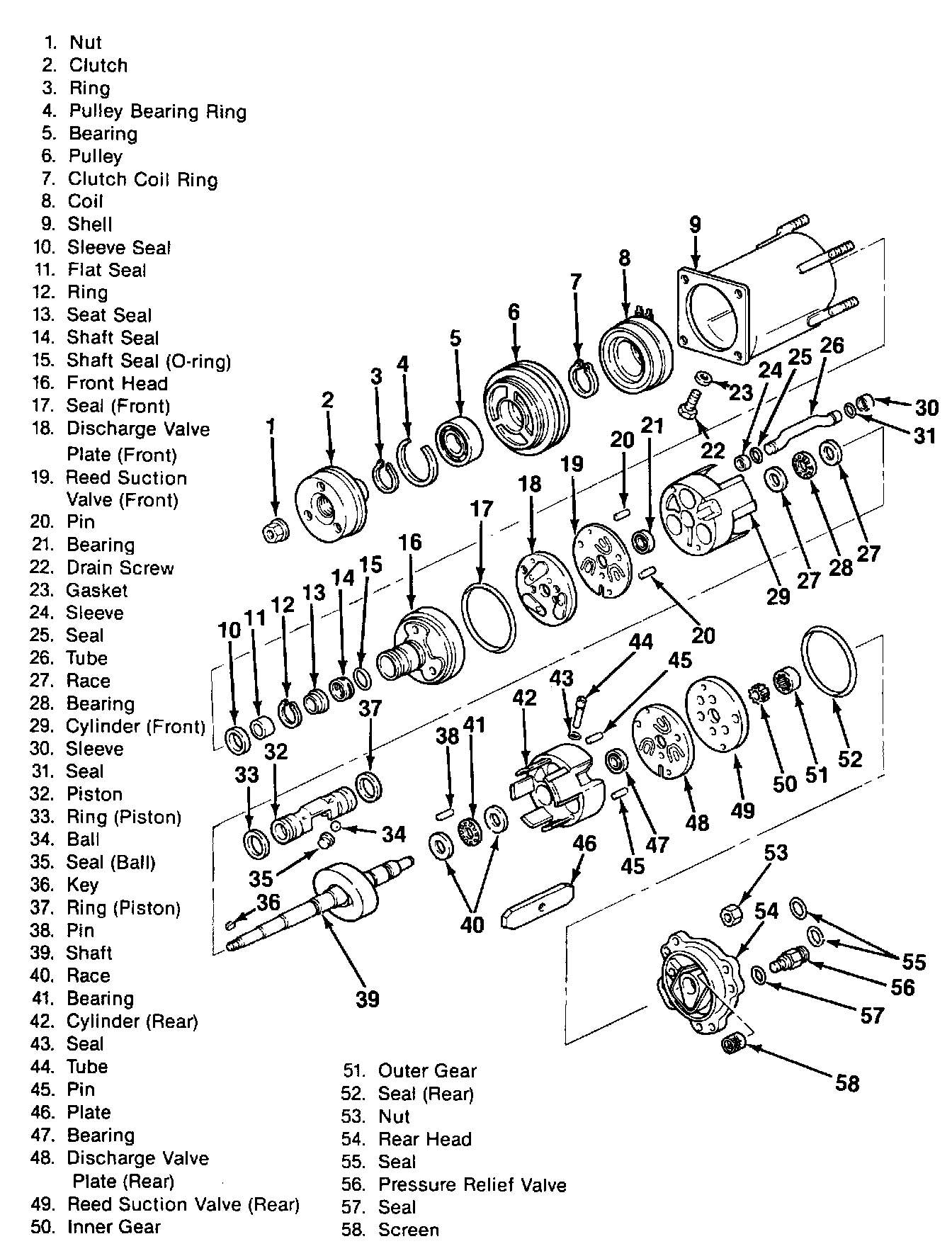

A-6 Compressor Component View:
