Chevrolet
>>
1988
>>
Nova/Chevy II L4-1600cc 4ALC Nummi
>>
Repair and Diagnosis
>>
Diagrams
>>

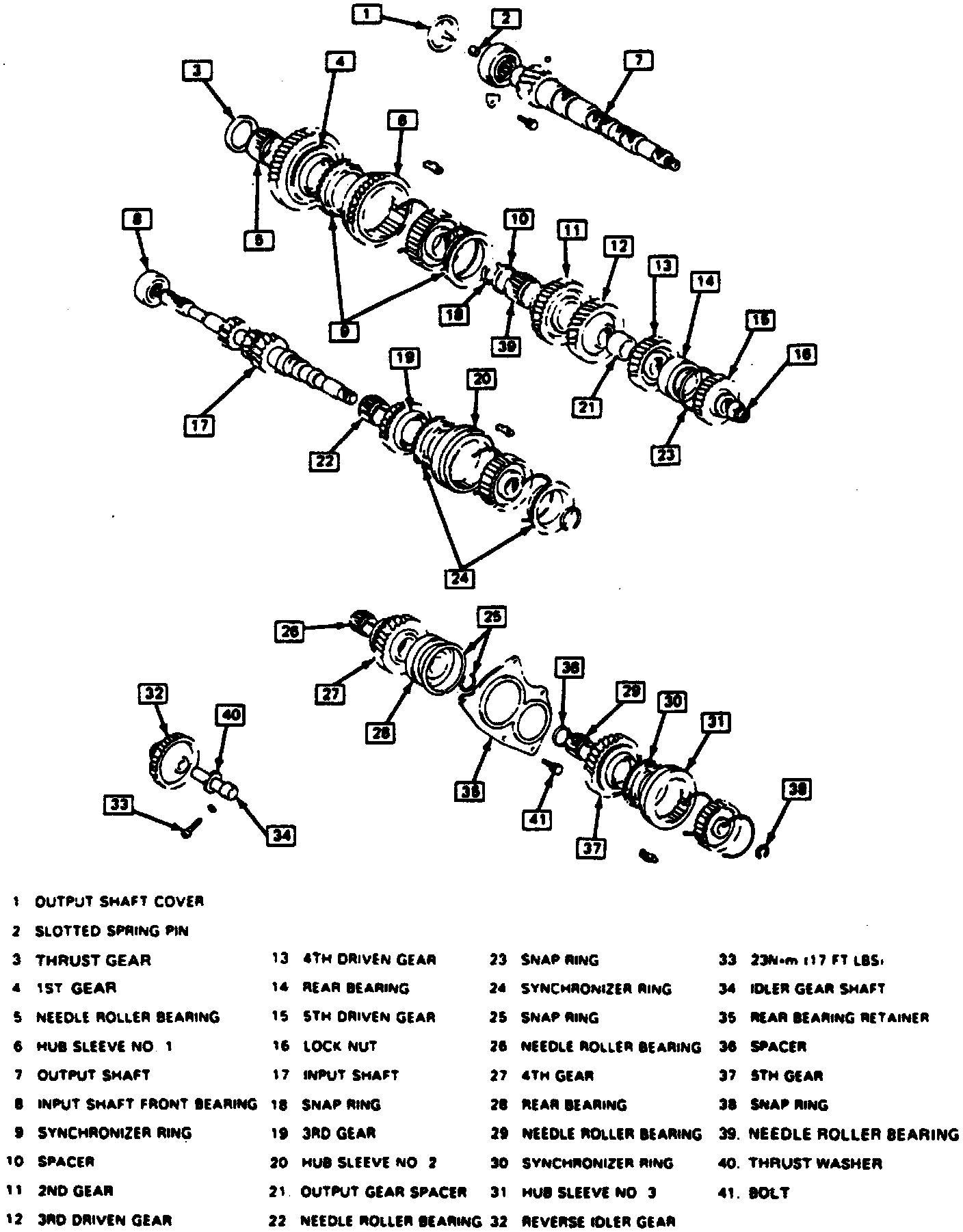

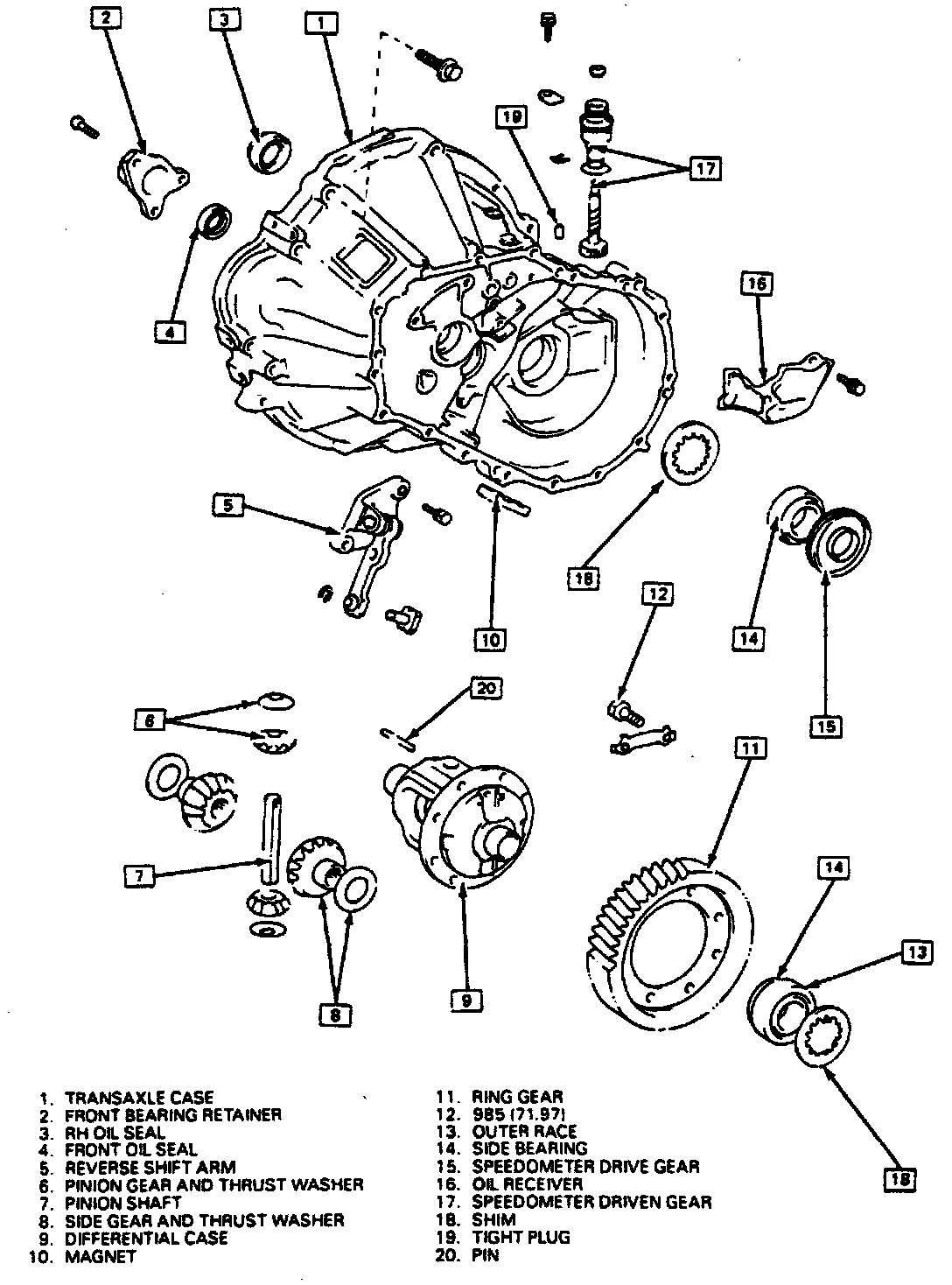

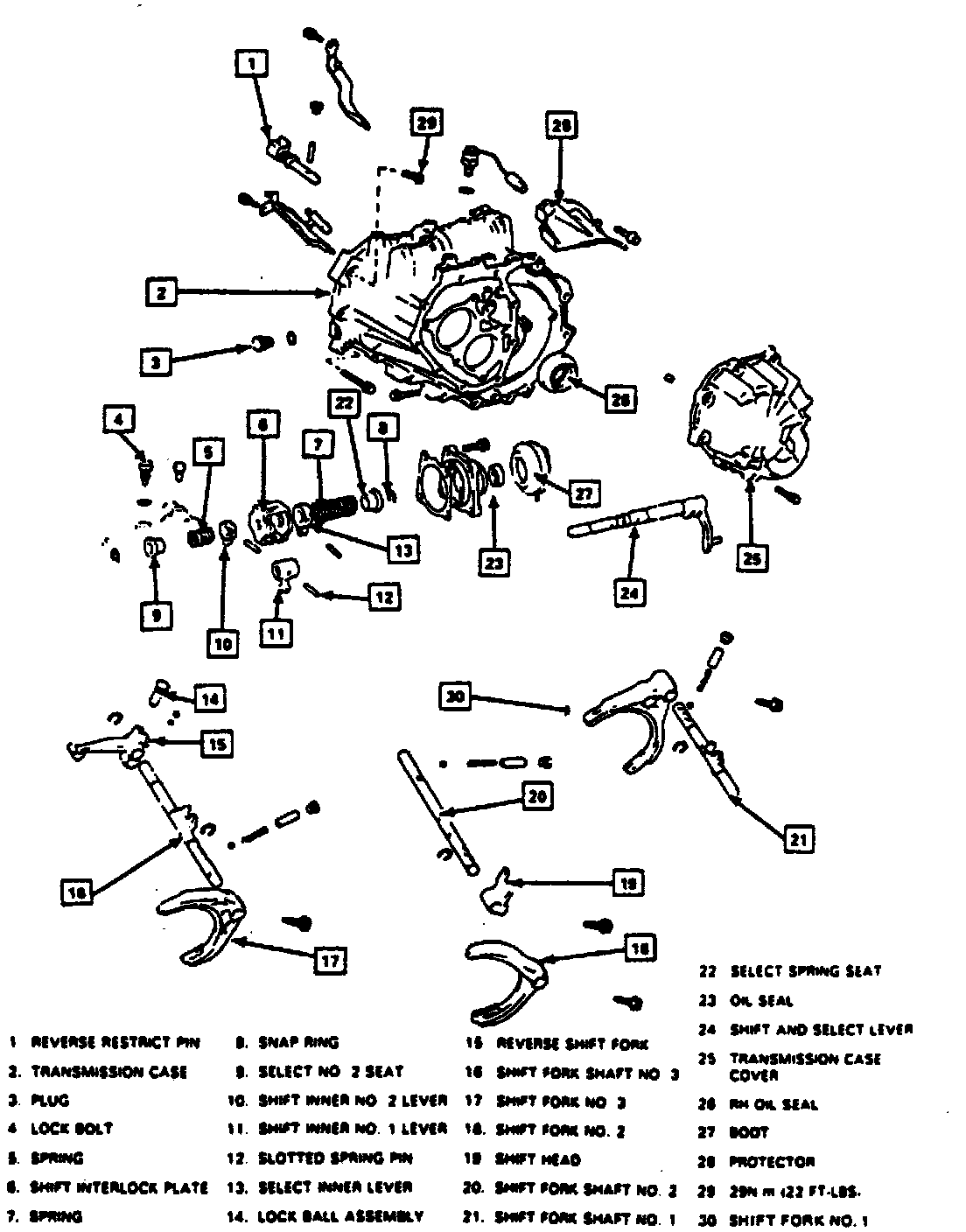

Exploded Views
>>
Manual Transmission/Transaxle
Manual Transmission/Transaxle
Description:
Description:
Description:
