Home >> Chevrolet >> 1988 >> Cavalier/Z24 L4-121 2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

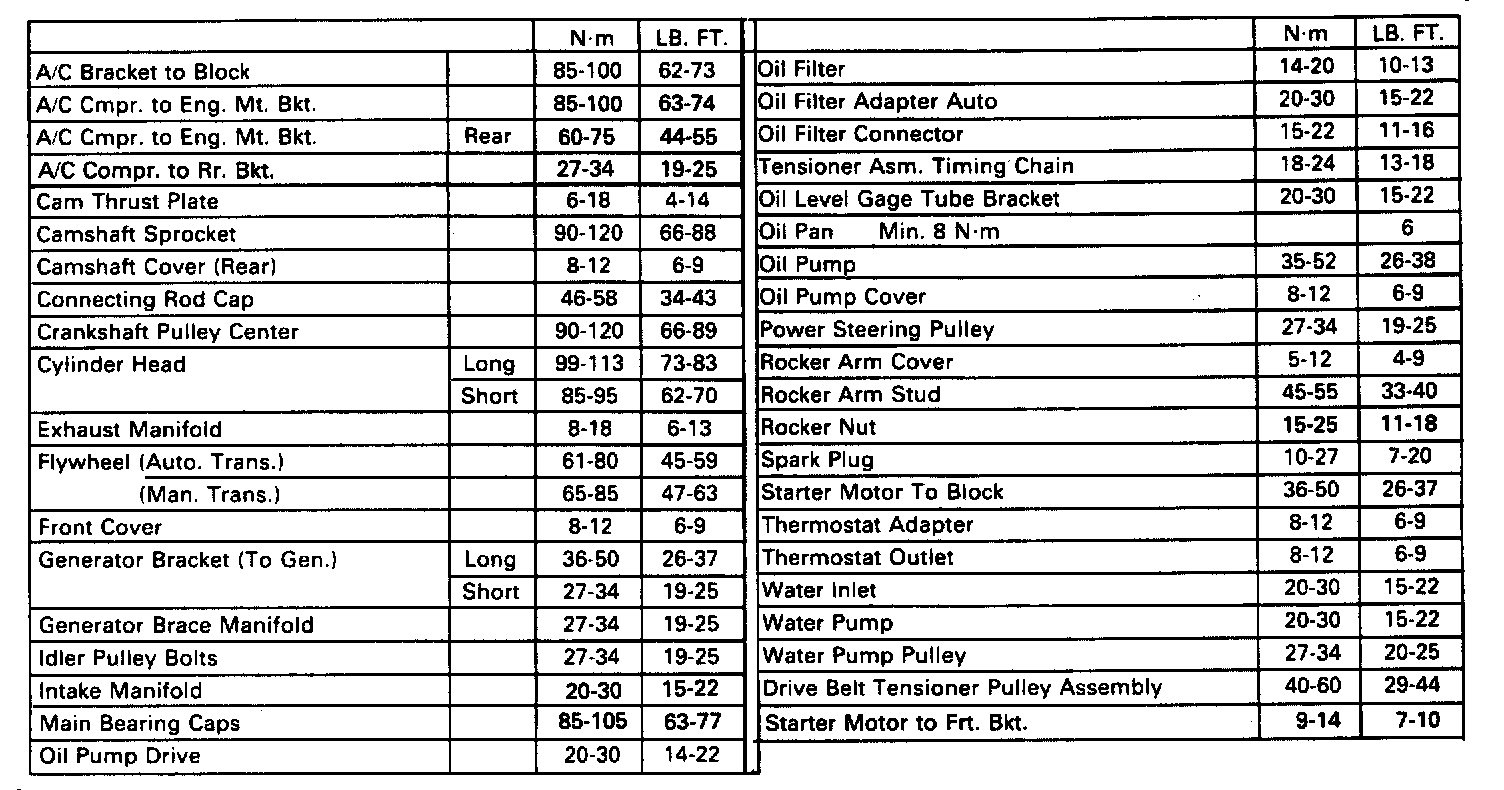

Torque Specifications:

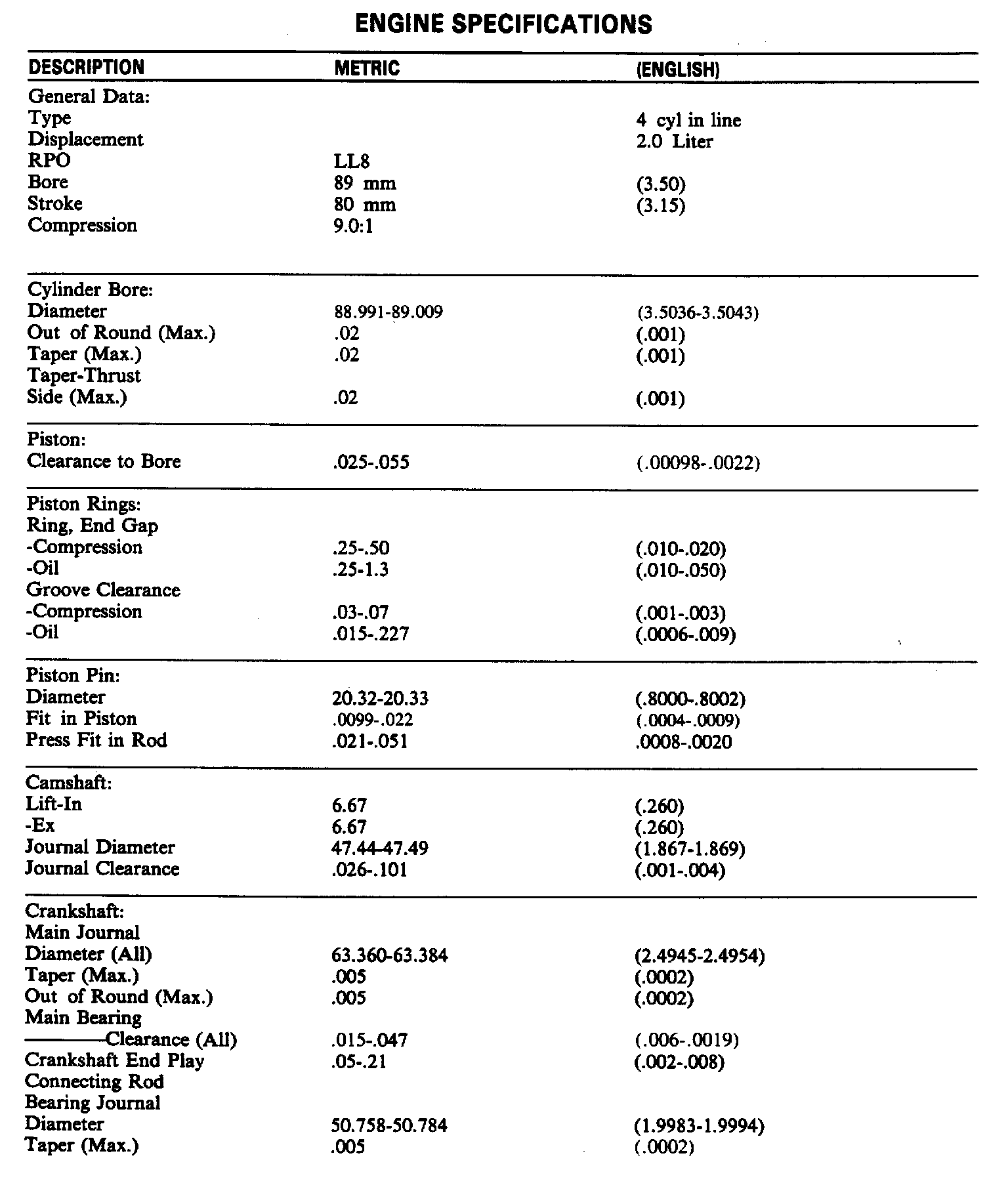

Engine Specifications:

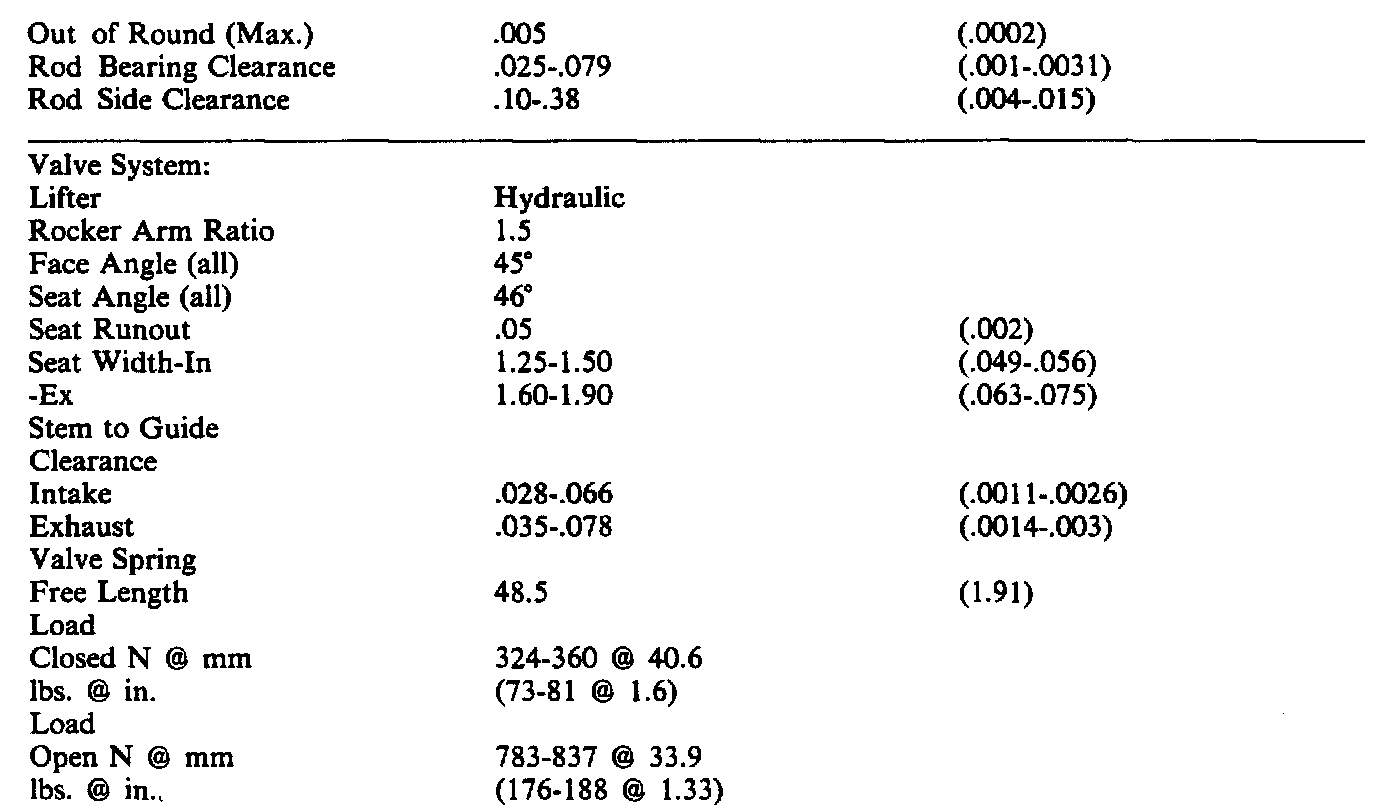

Engine Specifications:





Intake Manifold Torque Sequence:

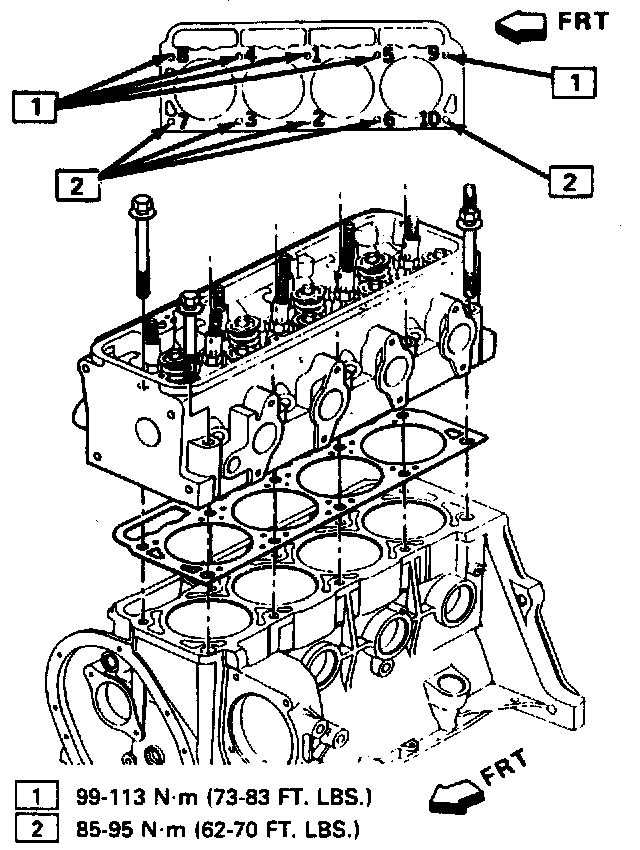

Cylinder Head Torque Sequence:
