Home >> Chevrolet >> 1988 >> Caprice V6-262 4.3L >> Repair and Diagnosis >> Starting and Charging >> Specifications

Starting and Charging: Specifications


BATTERY SPECIFICATIONS

I Of III:





II Of III:





III Of III:

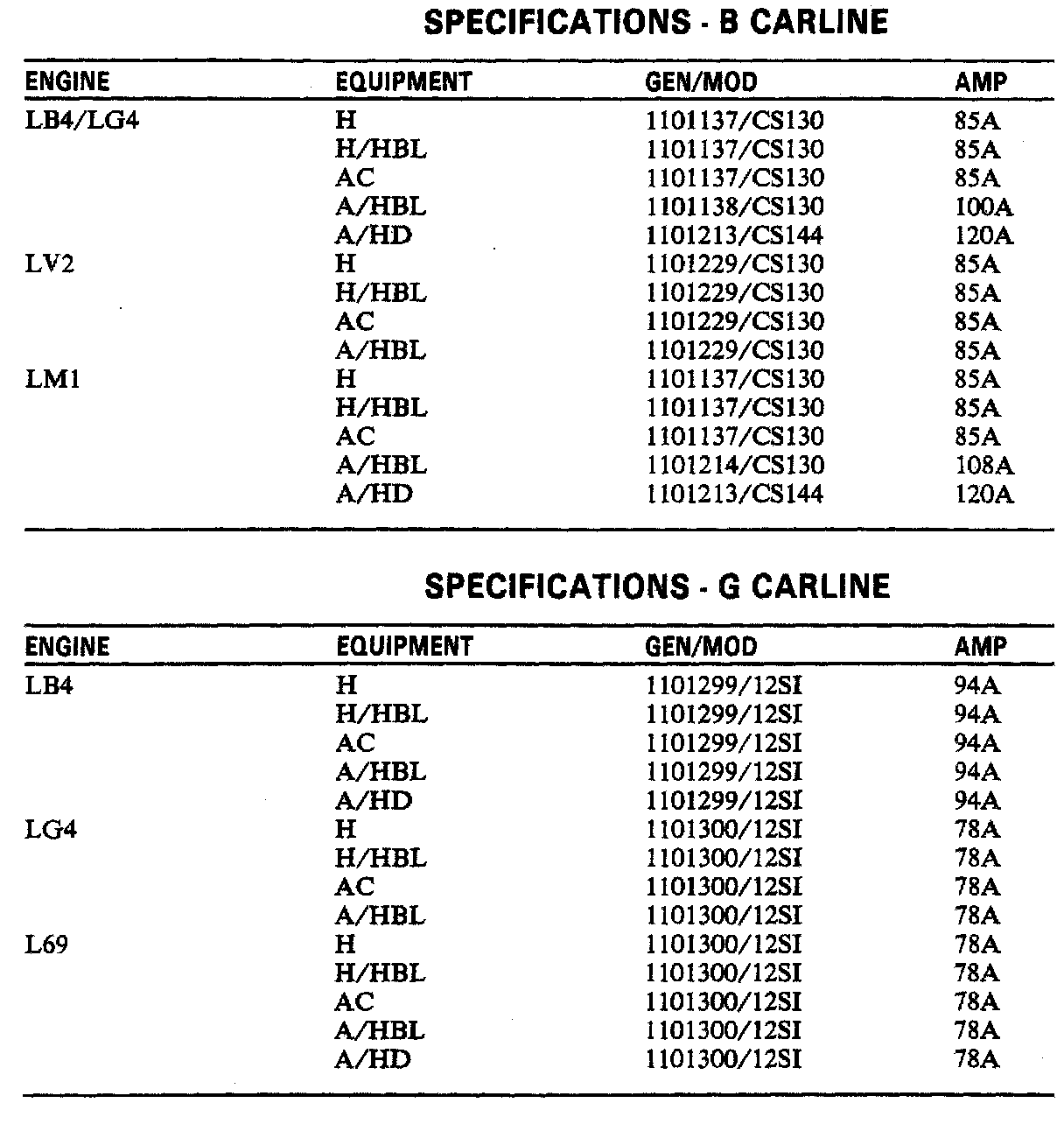

ALTERNATOR SPECIFICATIONS

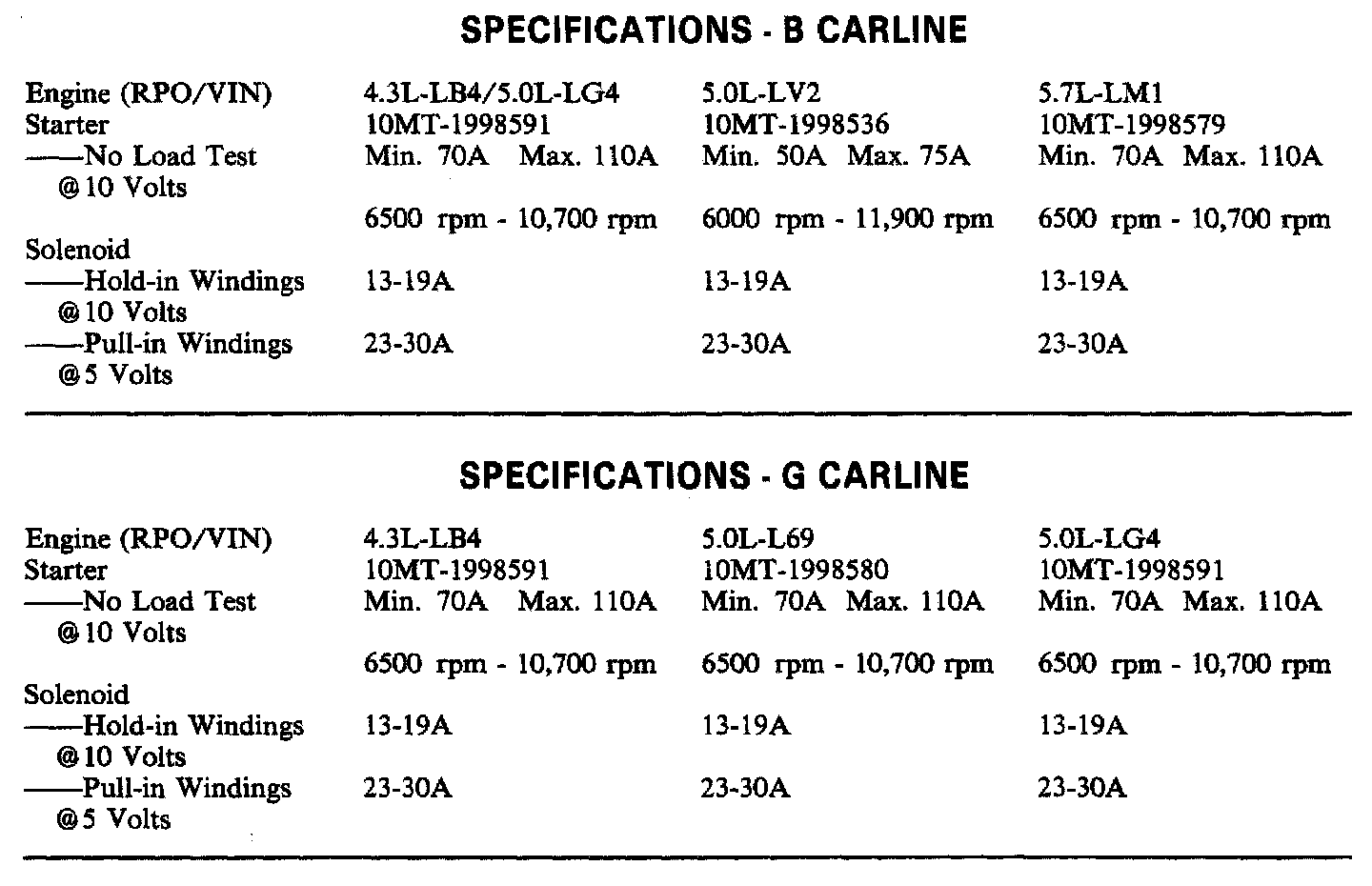

STARTER SPECIFICATIONS
