System Specifications

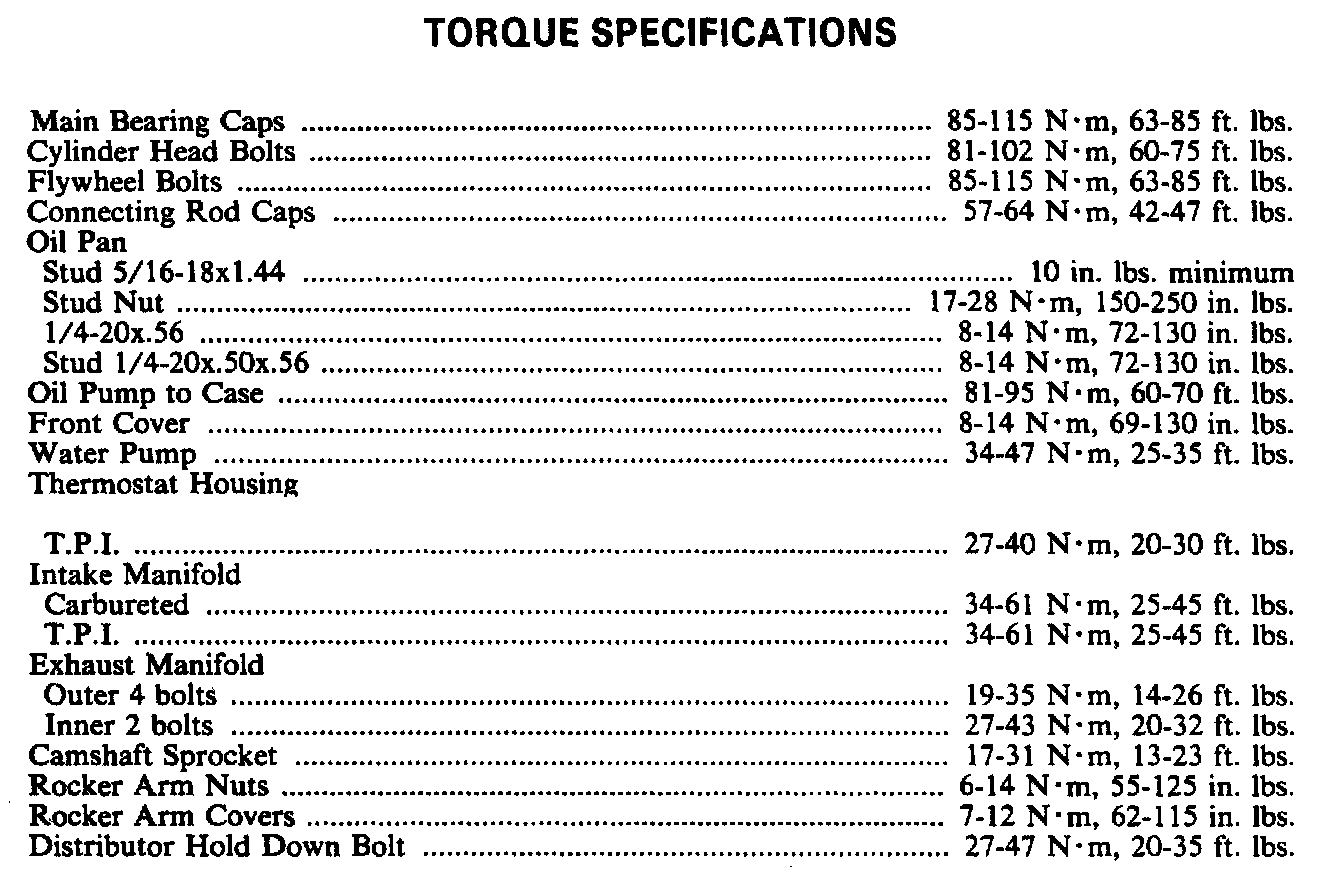

Torque Specifications:

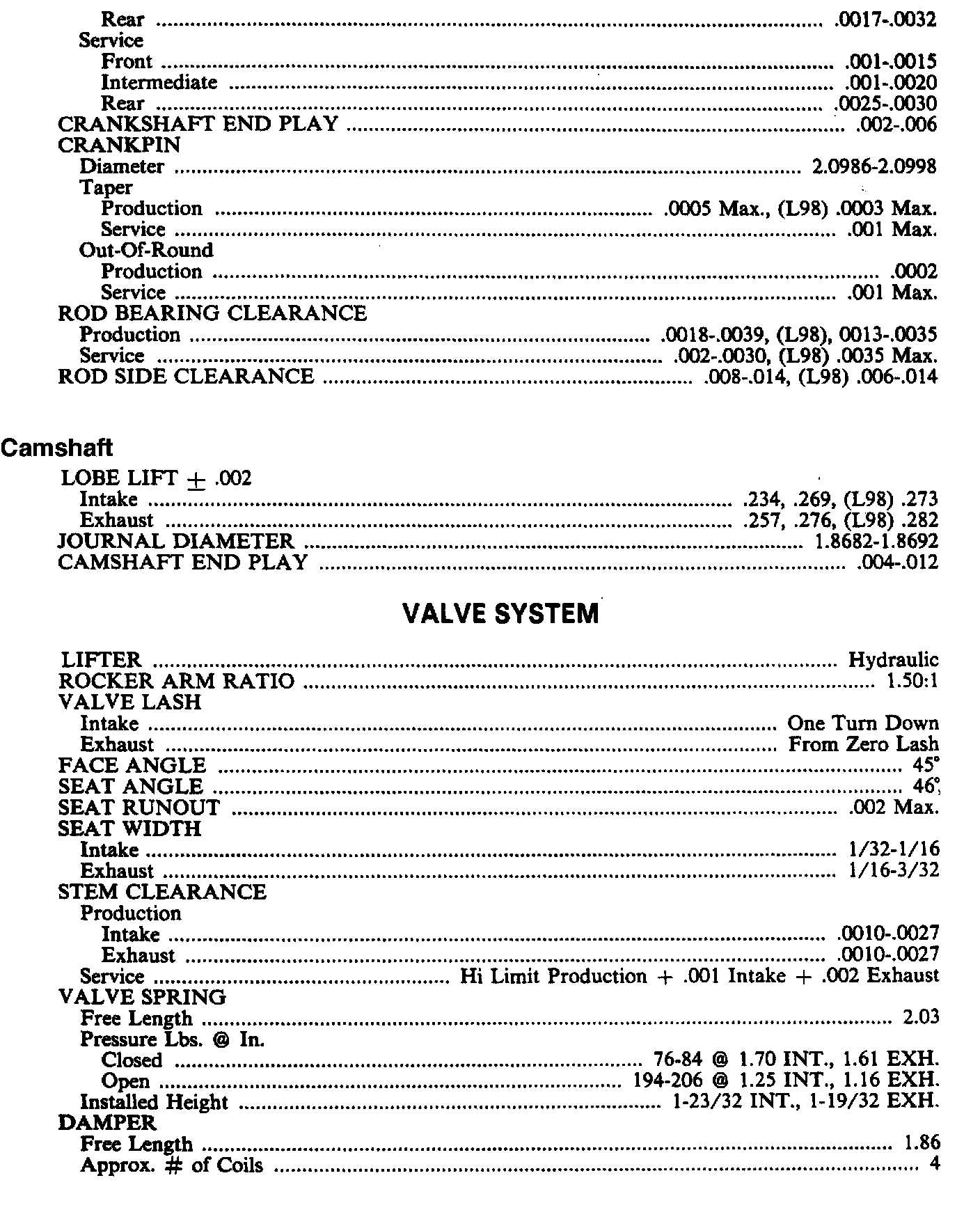

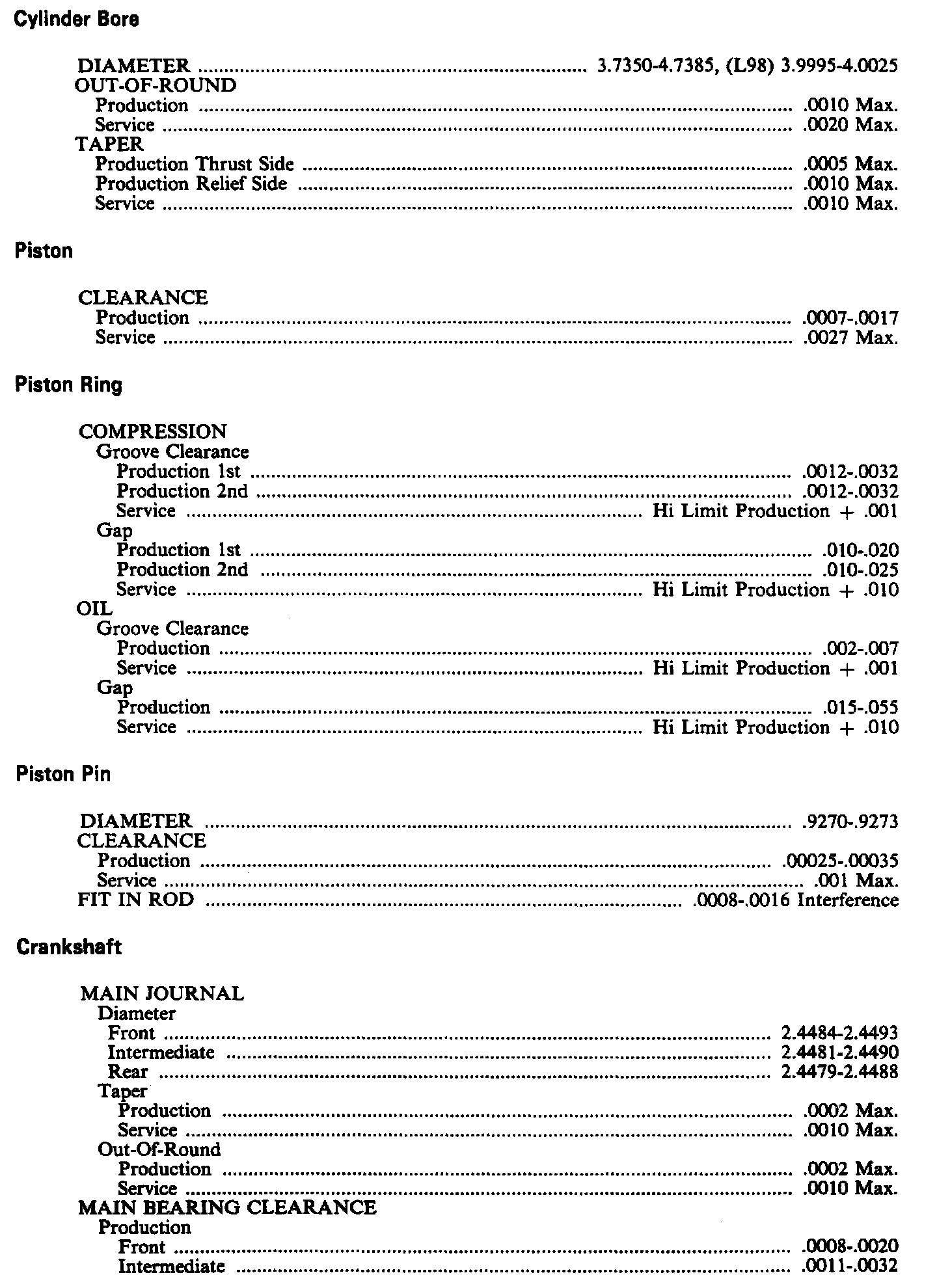

Engine Specifications:





Engine Specifications:





Engine Specifications:

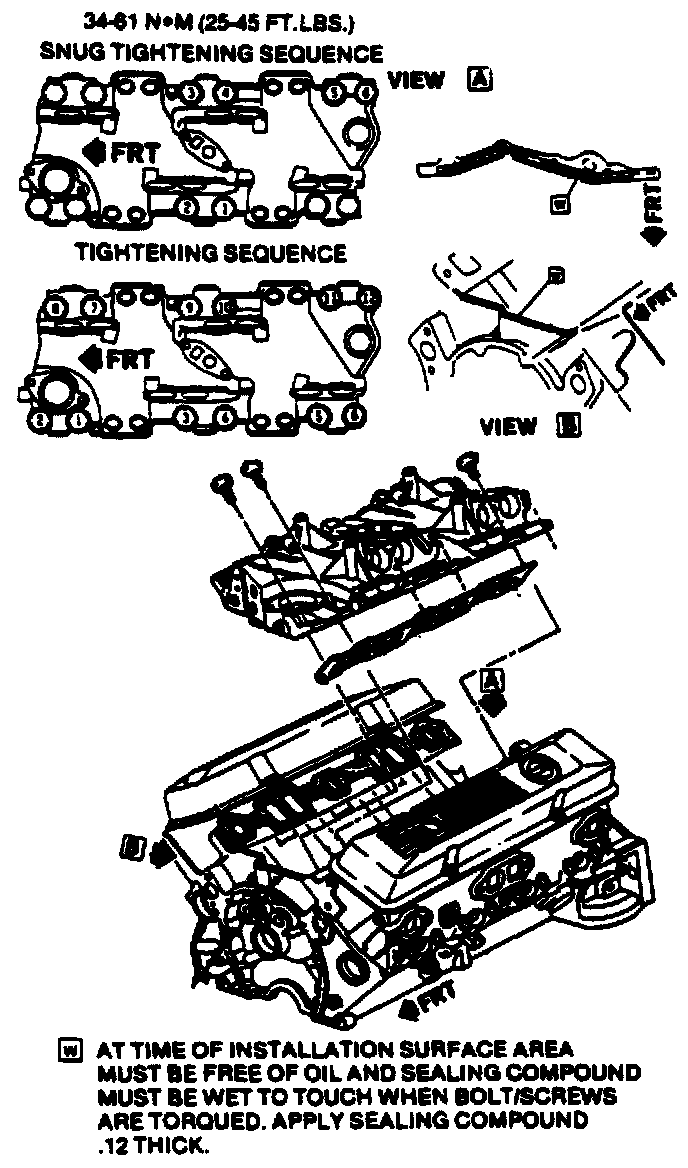

Intake Manifold Torque Sequence (L03):





Intake Manifold Torque Sequence (PFI):





Cylinder Head Torque Sequence:
