Engine Specifications

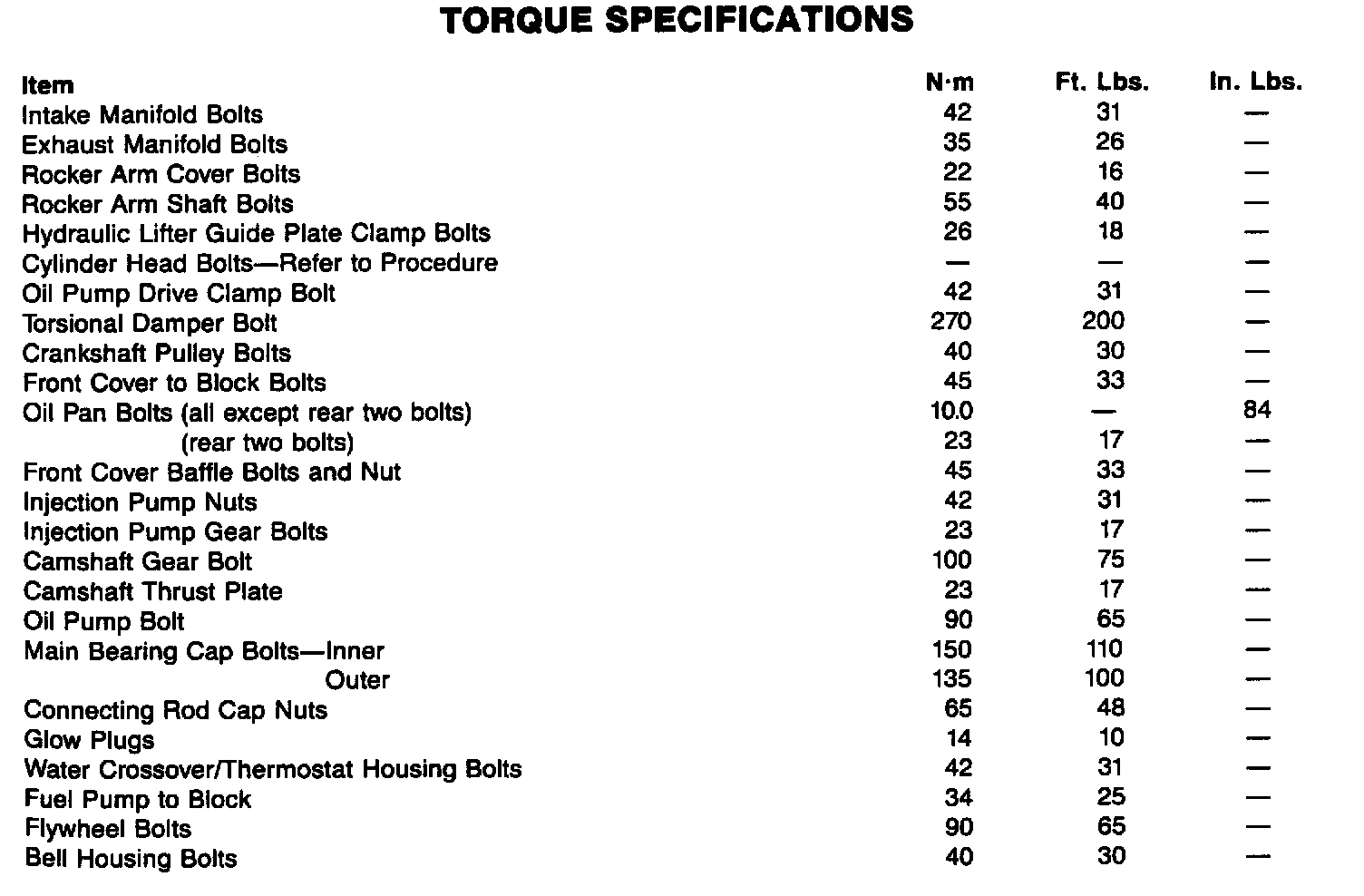

Torque Specifications:

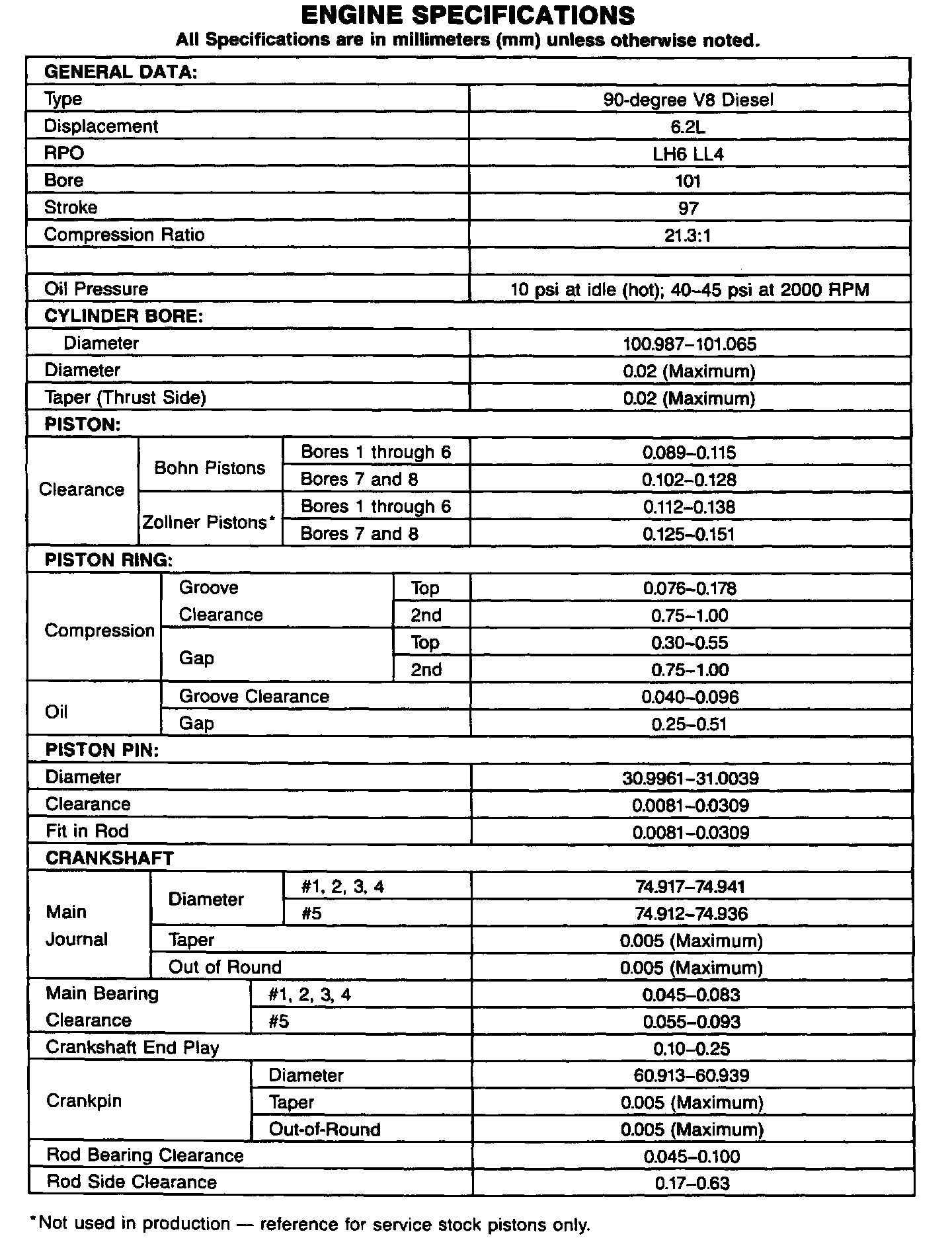

Engine Specifications:

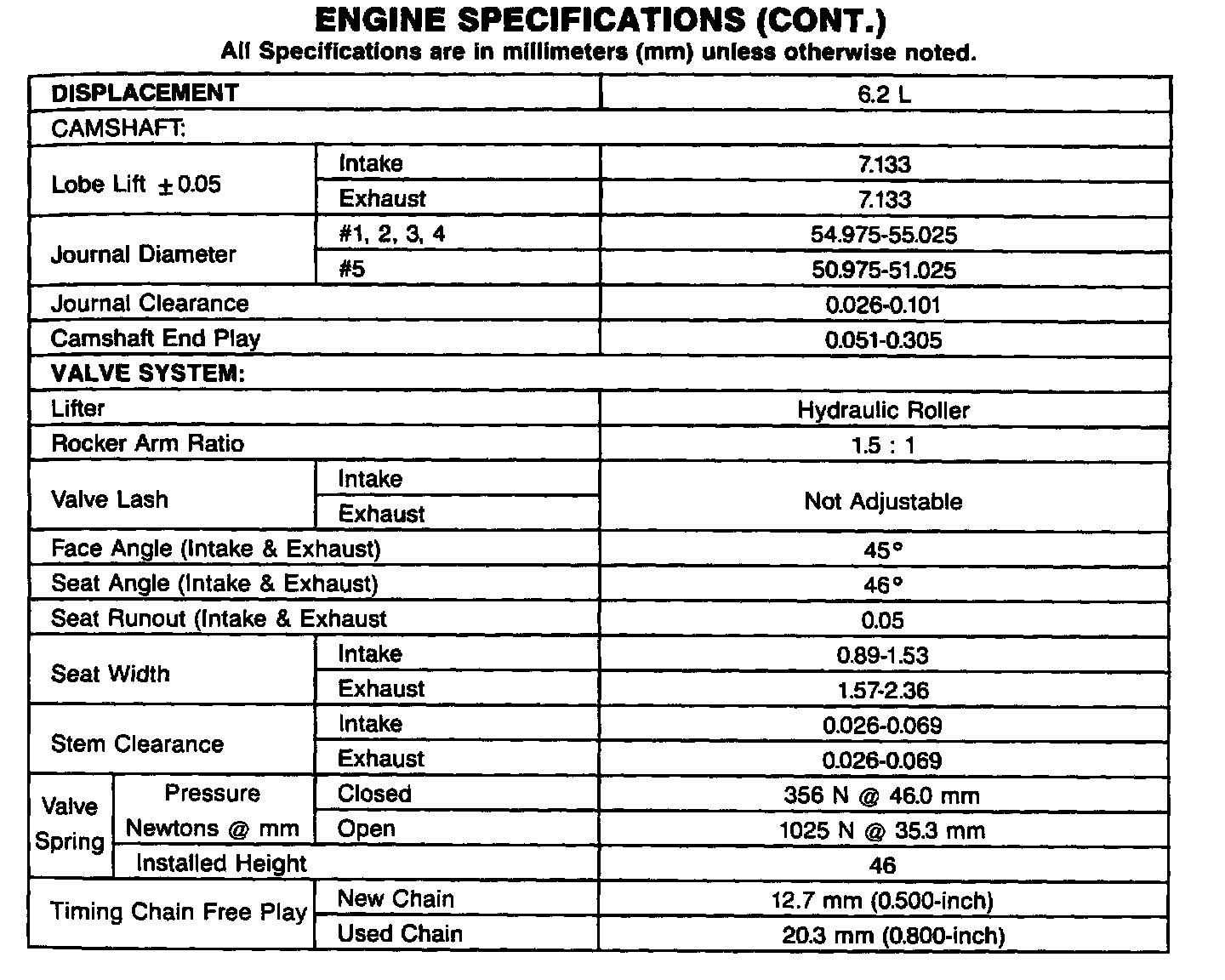

Continued Engine Specifications:

Intake Manifold Sequence:

Cylinder Head Sequence:
