Anti-Lock Brake Diode
Anti-Lock Brake Diode

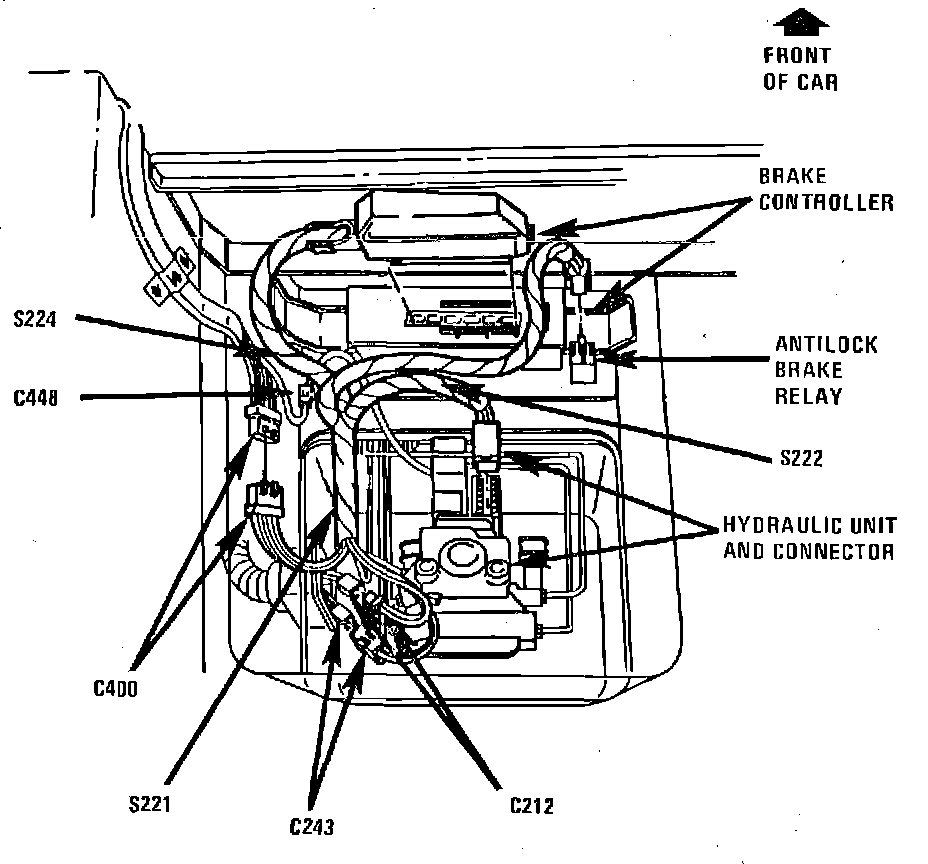

LH Side Of Cargo Compartment:
ABS Harness, Underneath LH Rear Compartment
