Idle Up Control Valve: Diagrams

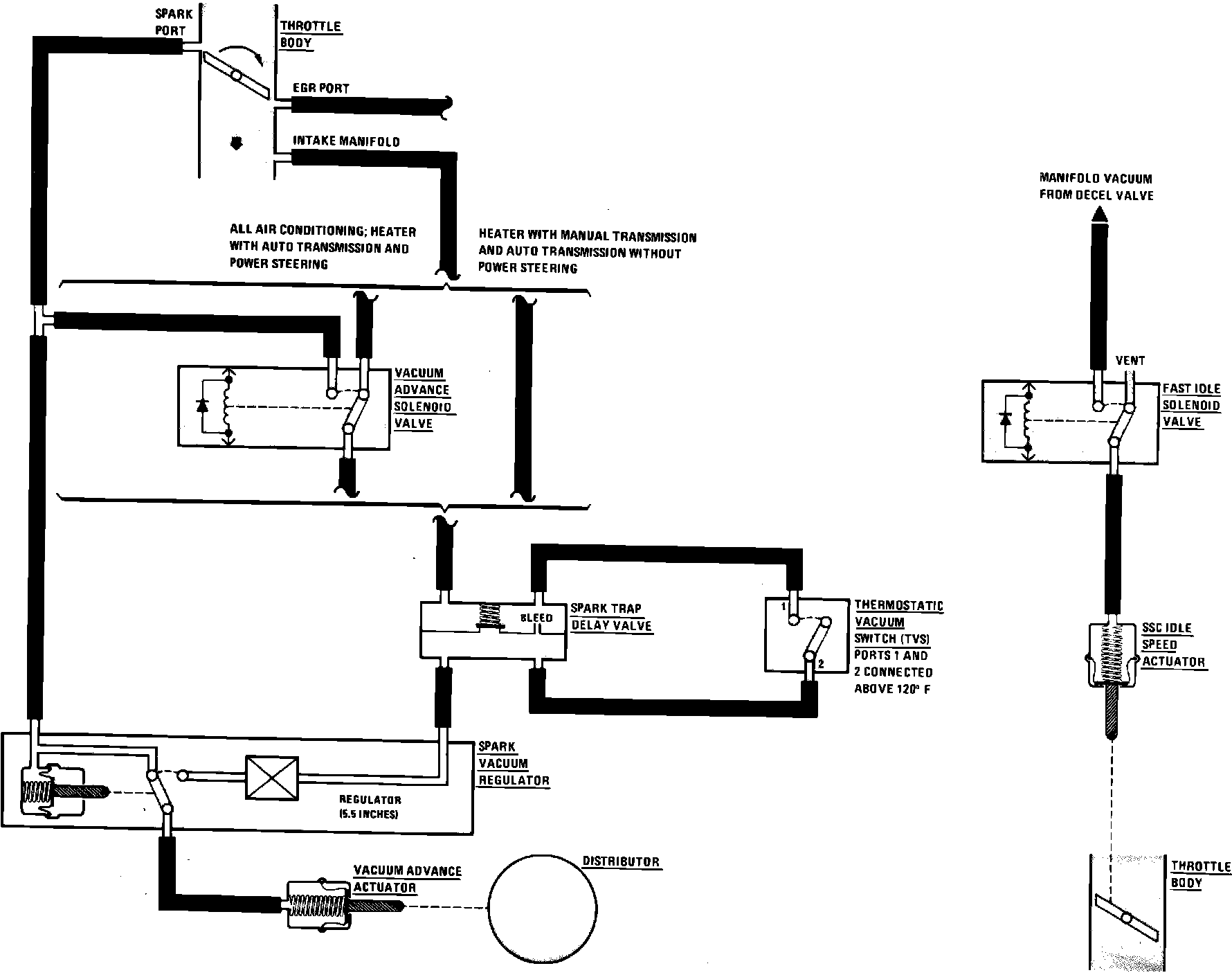

Fig. 31 Stepped Speed Control Vacuum Circuit. 1985 Chevette & T1000:
