Home >> Chevrolet >> 1987 >> Cavalier/Z24 L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Resistance Wire

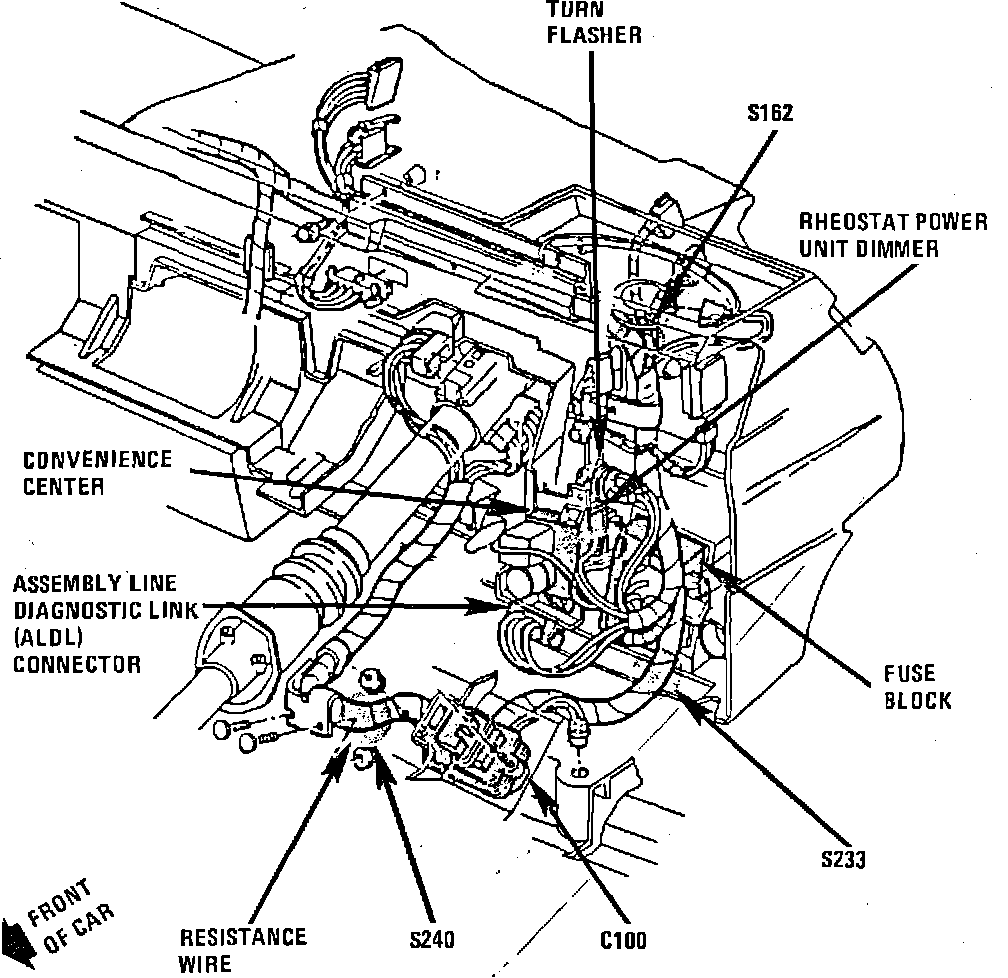

Resistance Wire

Behind LH Side Of I/P:




In I/P Harness Between Ignition Switch & C100
