LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
1987
>>
Camaro V8-350 5.7L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
Engine Control Module

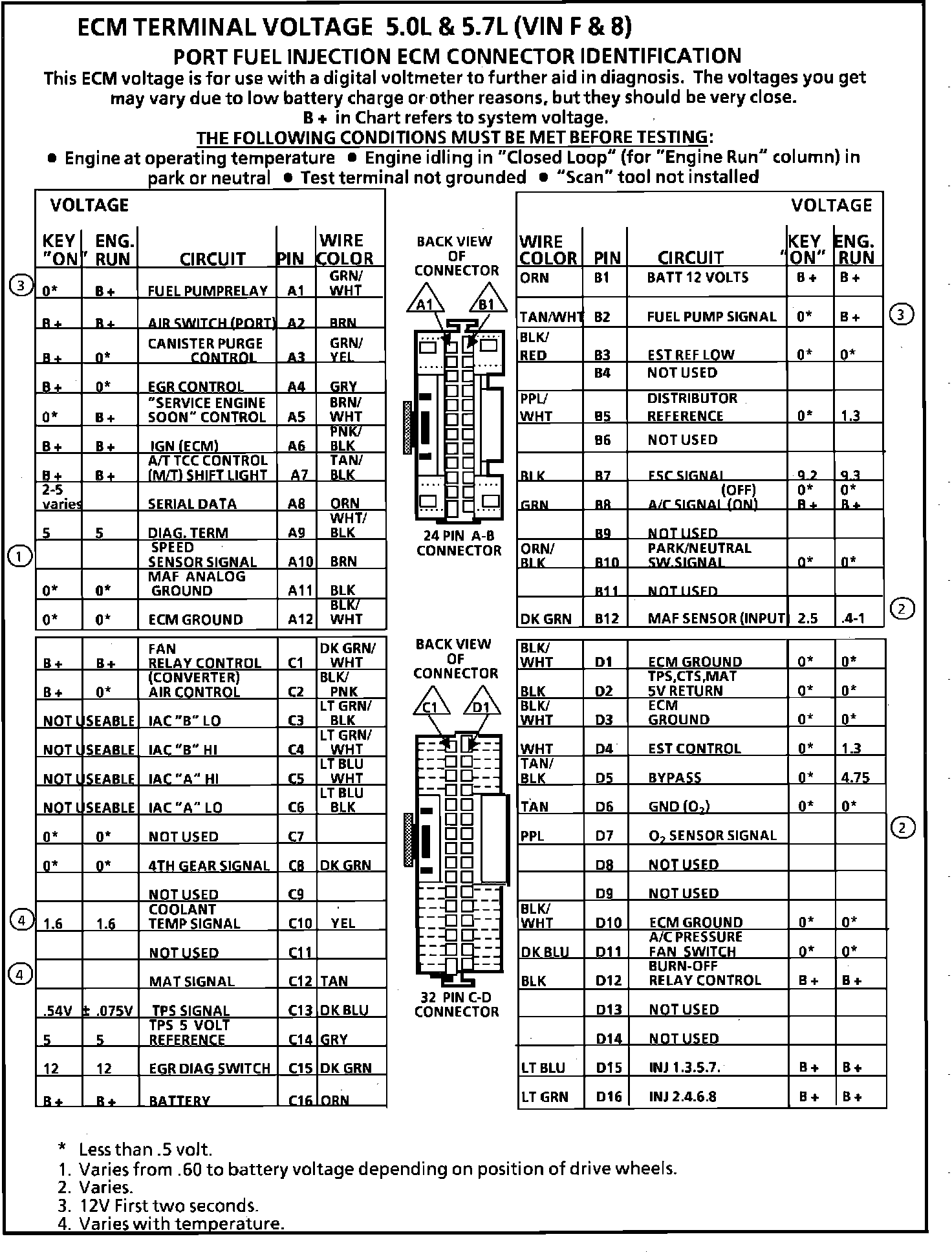

ECM Terminal ID and Voltage Specifications:
