System Specifications

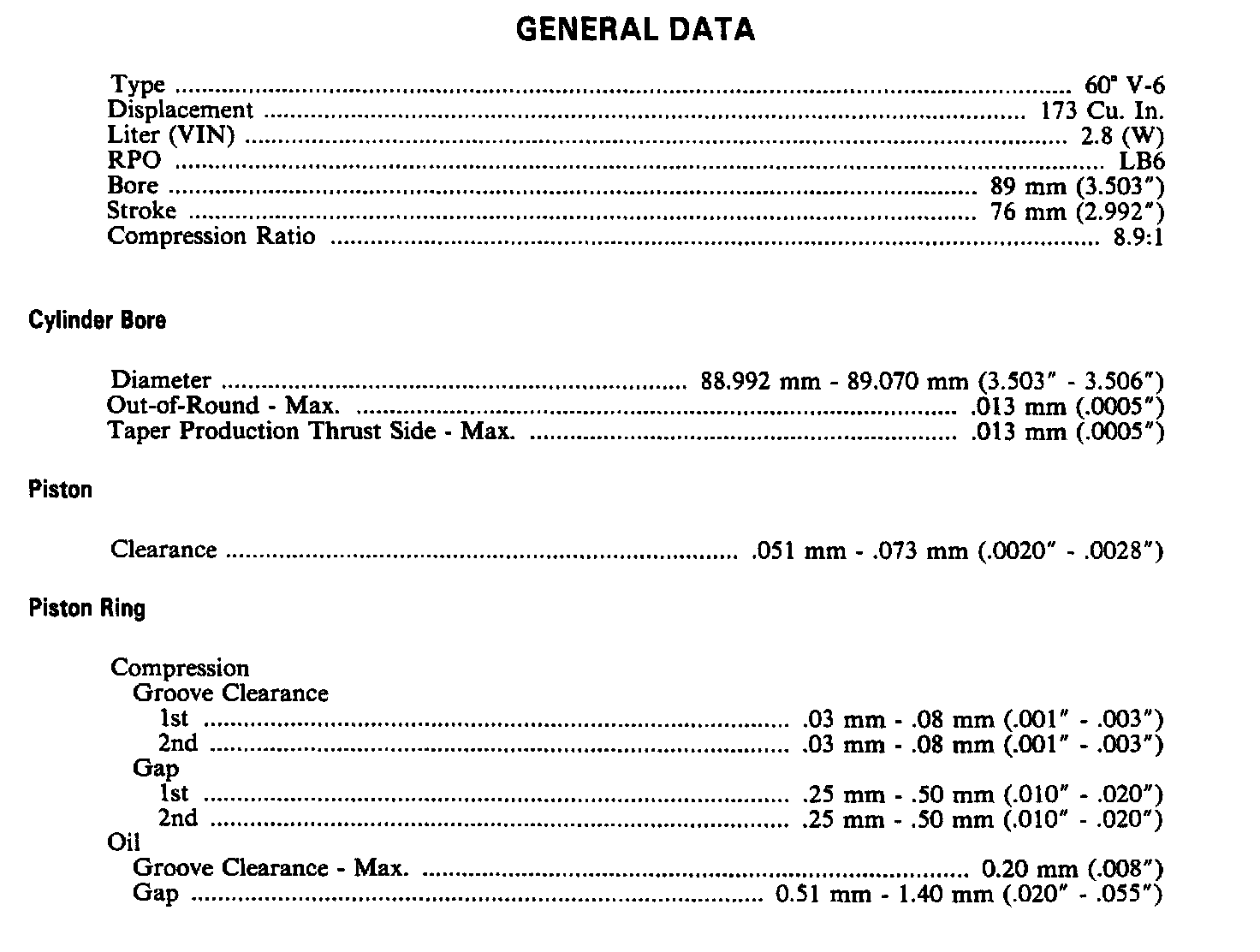

Dimension Specifications:

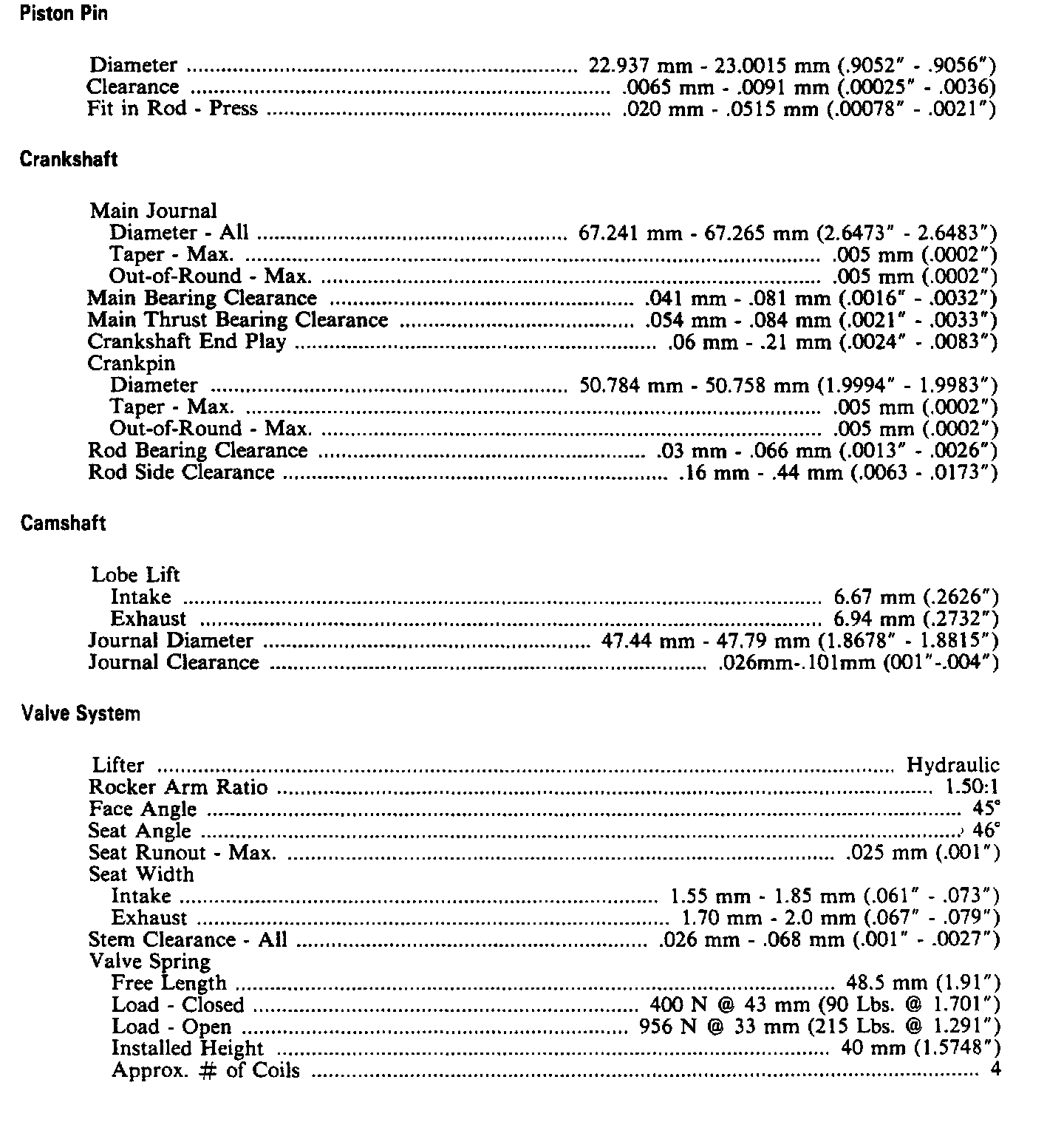

Continued Engine Specifications:

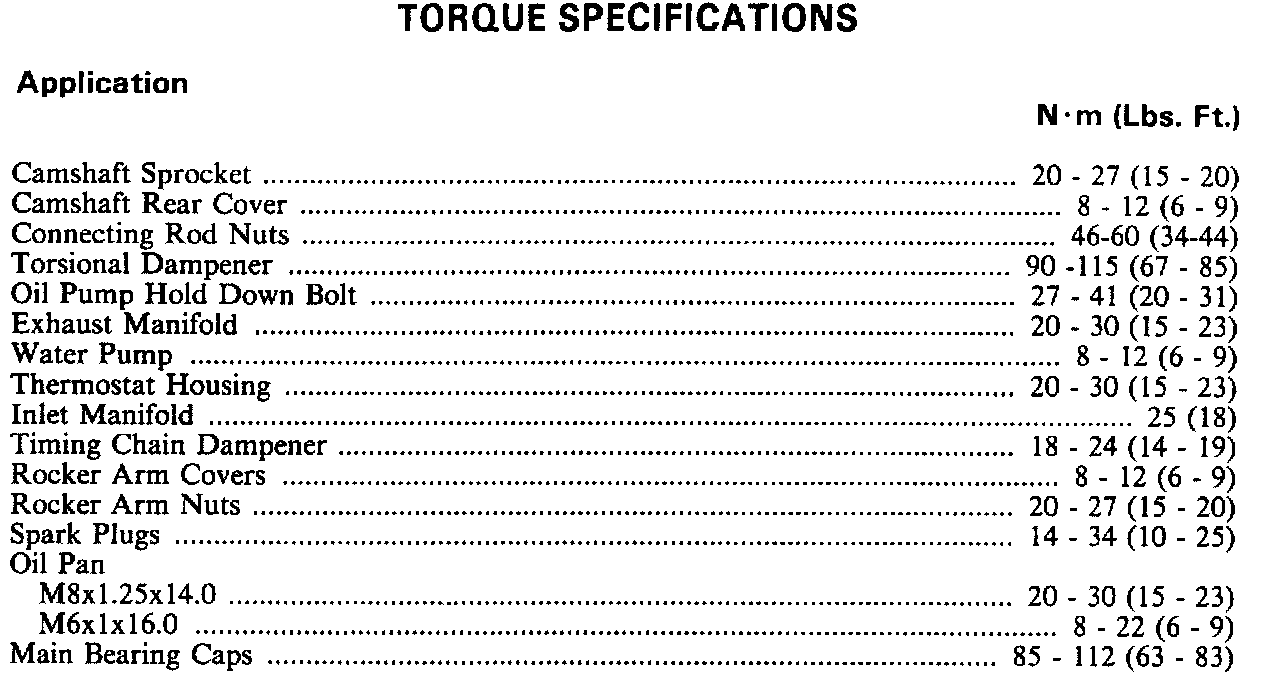

Torque Specifications:

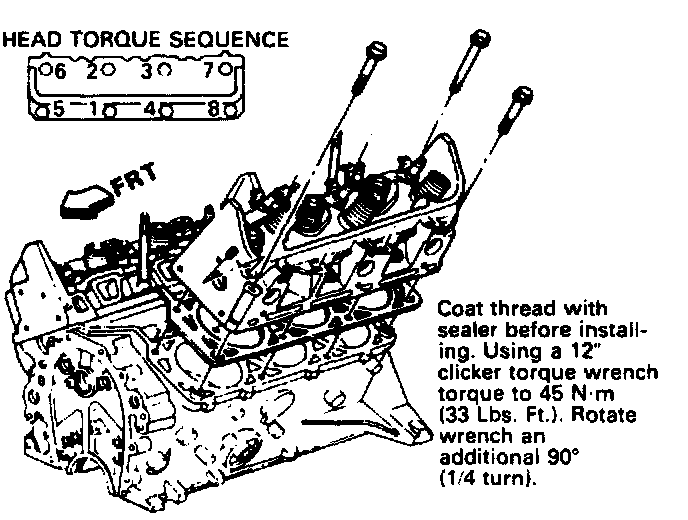

Cylinder Head Sequence:
