Direct Ignition System

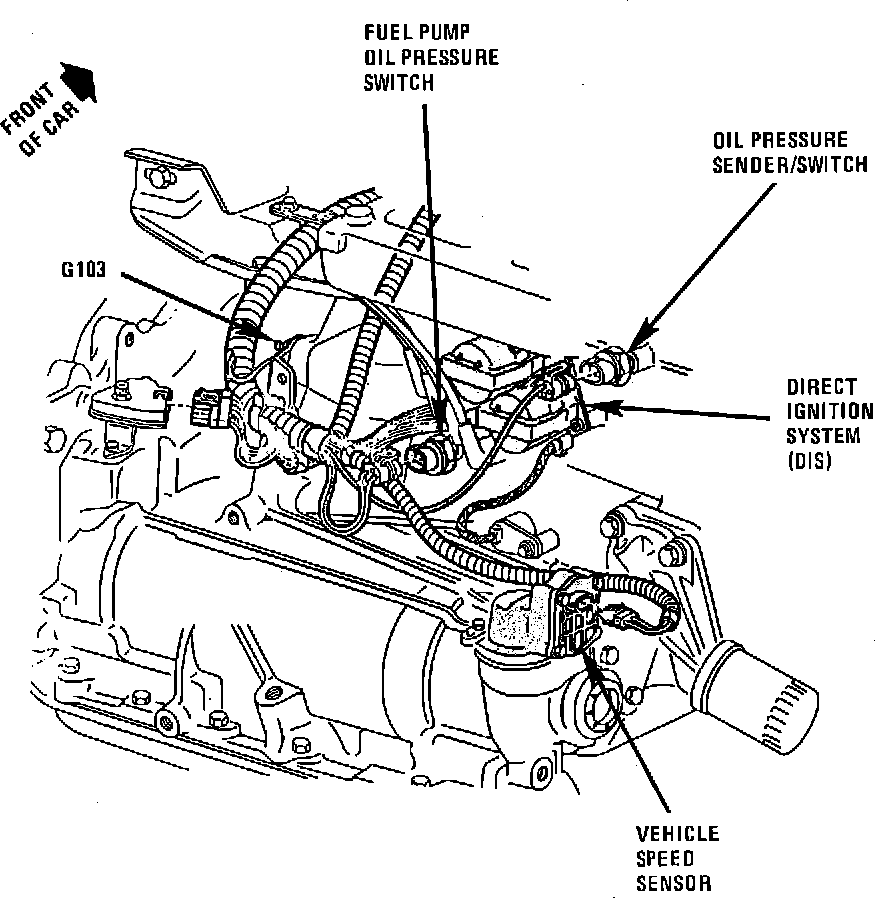

Rear Of Engine.:

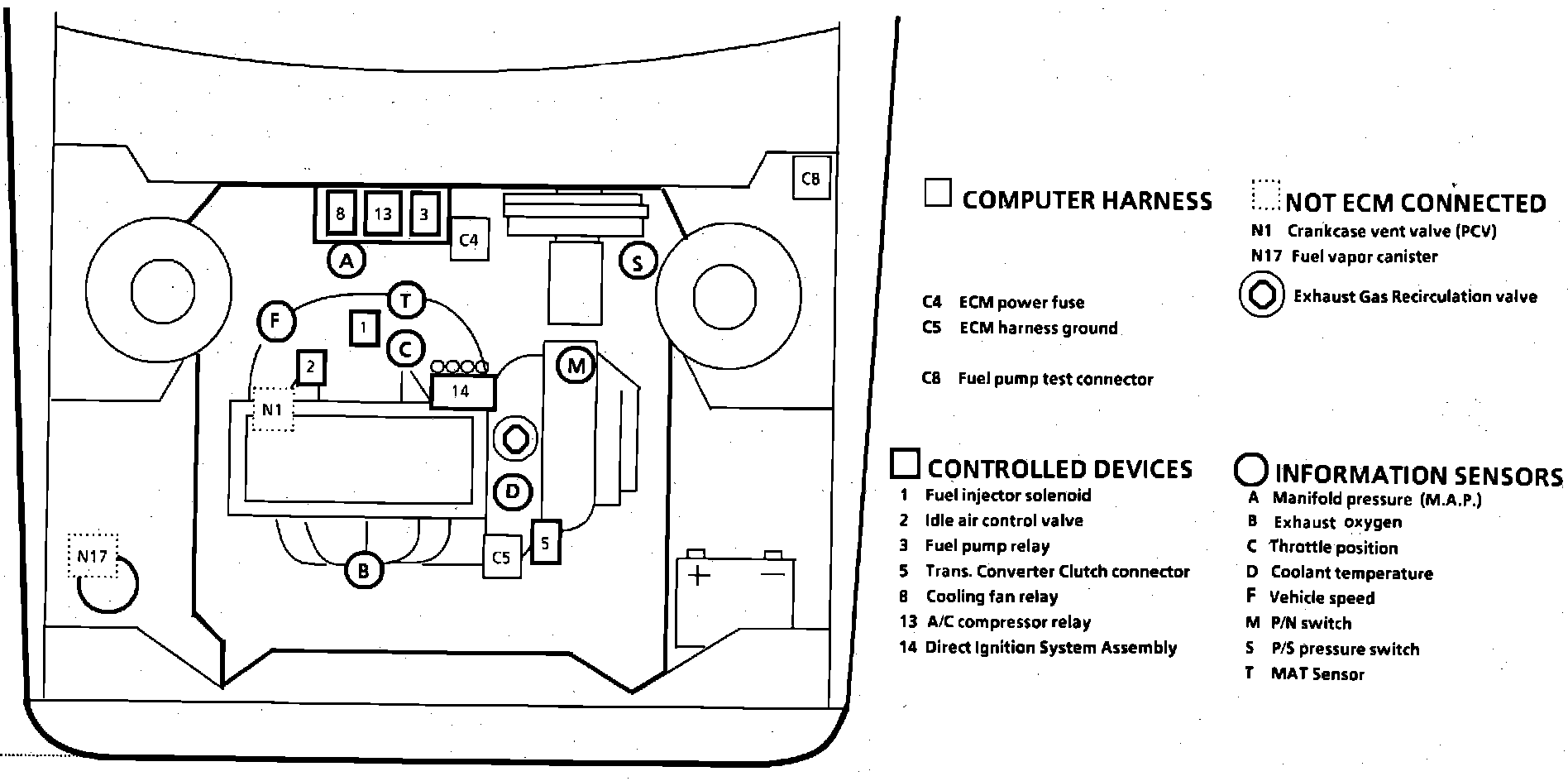

Engine & Underdash Components.:




Rear Of Engine

Applicable to: 4-121/2.0L
