System Specifications

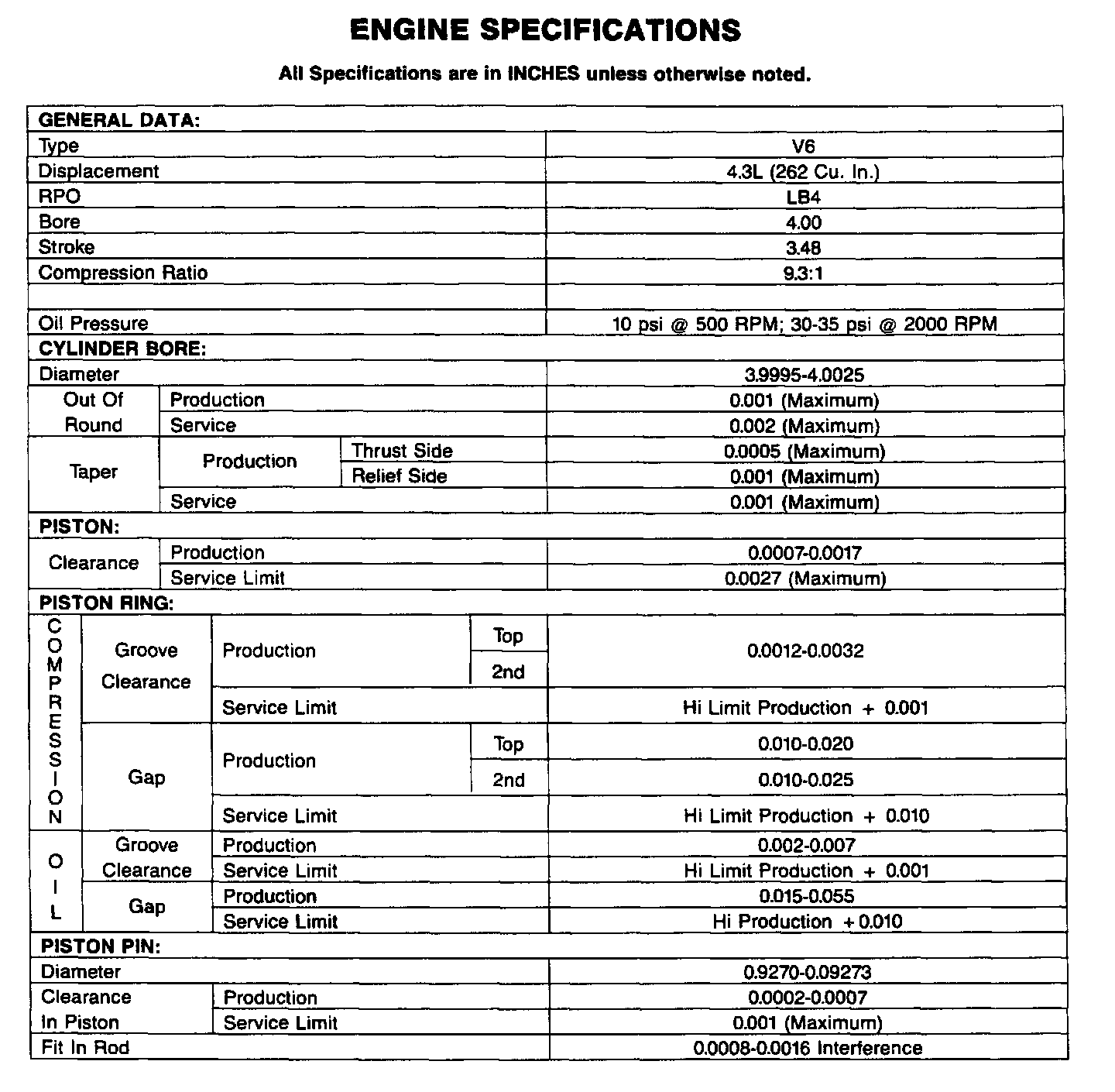

Engine Specifications:

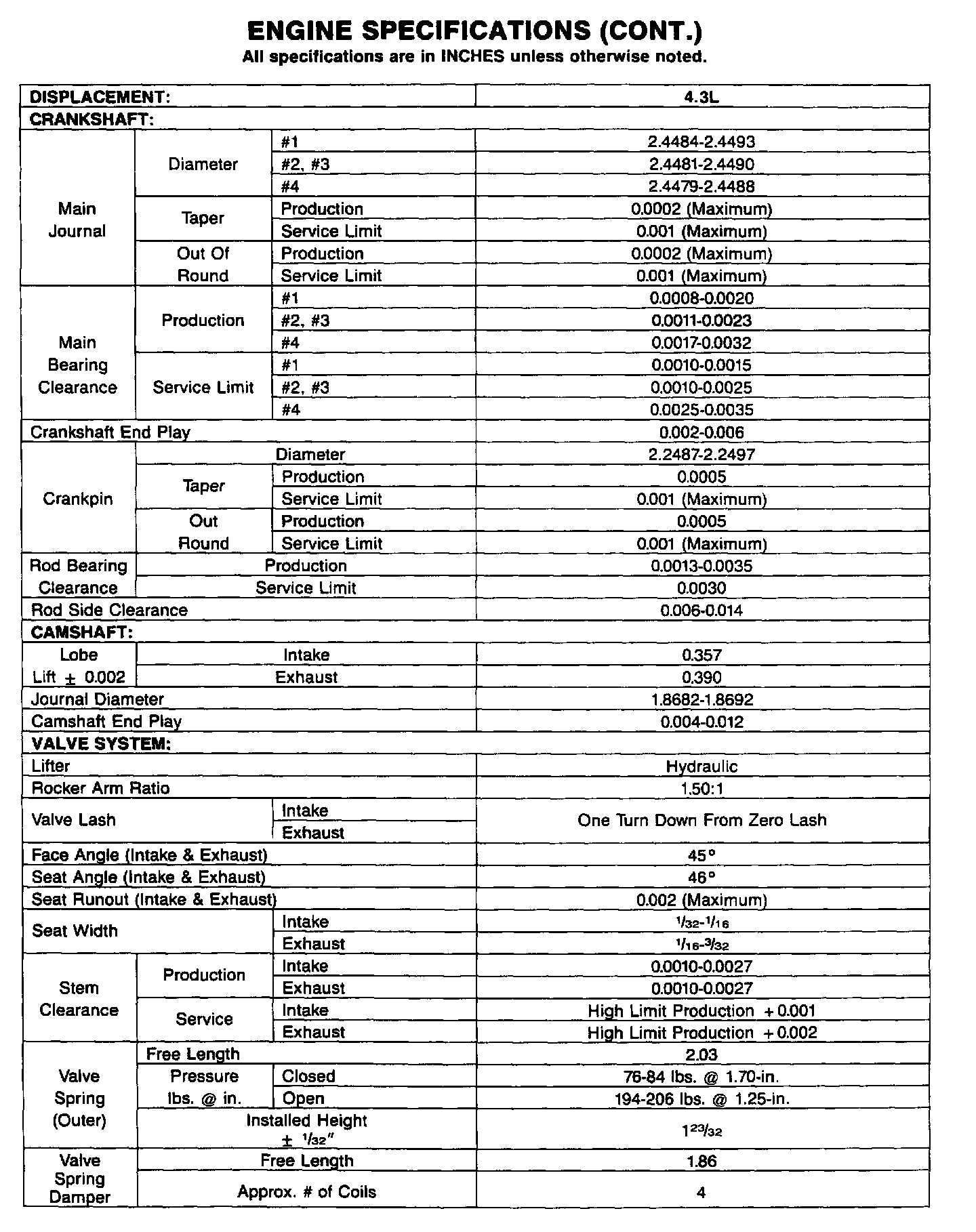

Continued Engine Specifications:

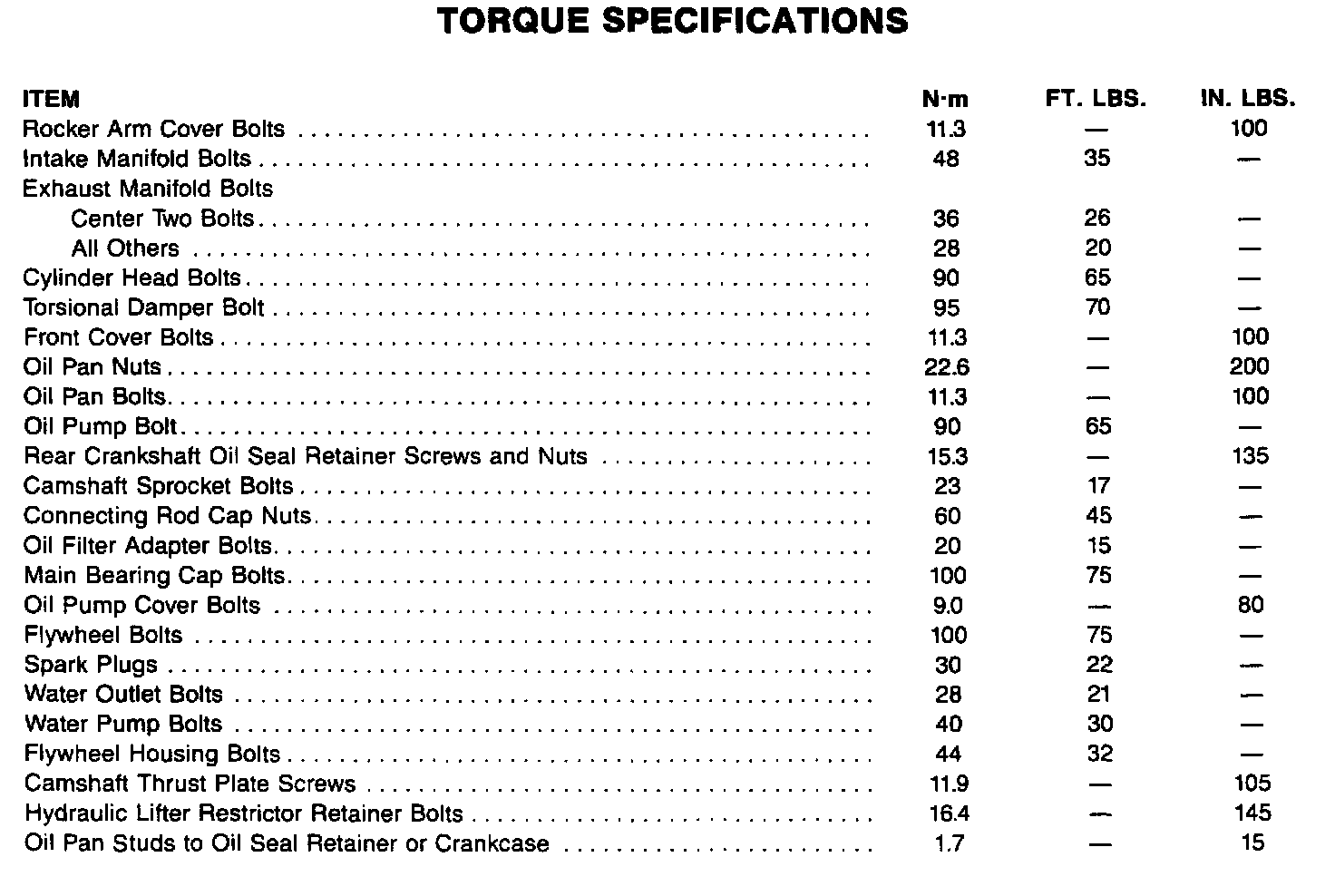

Torque Specifications:

Intake Manifold Sequence:

Cylinder Head Sequence:
