Electronic/Powertrain Control Module (ECM/PCM)

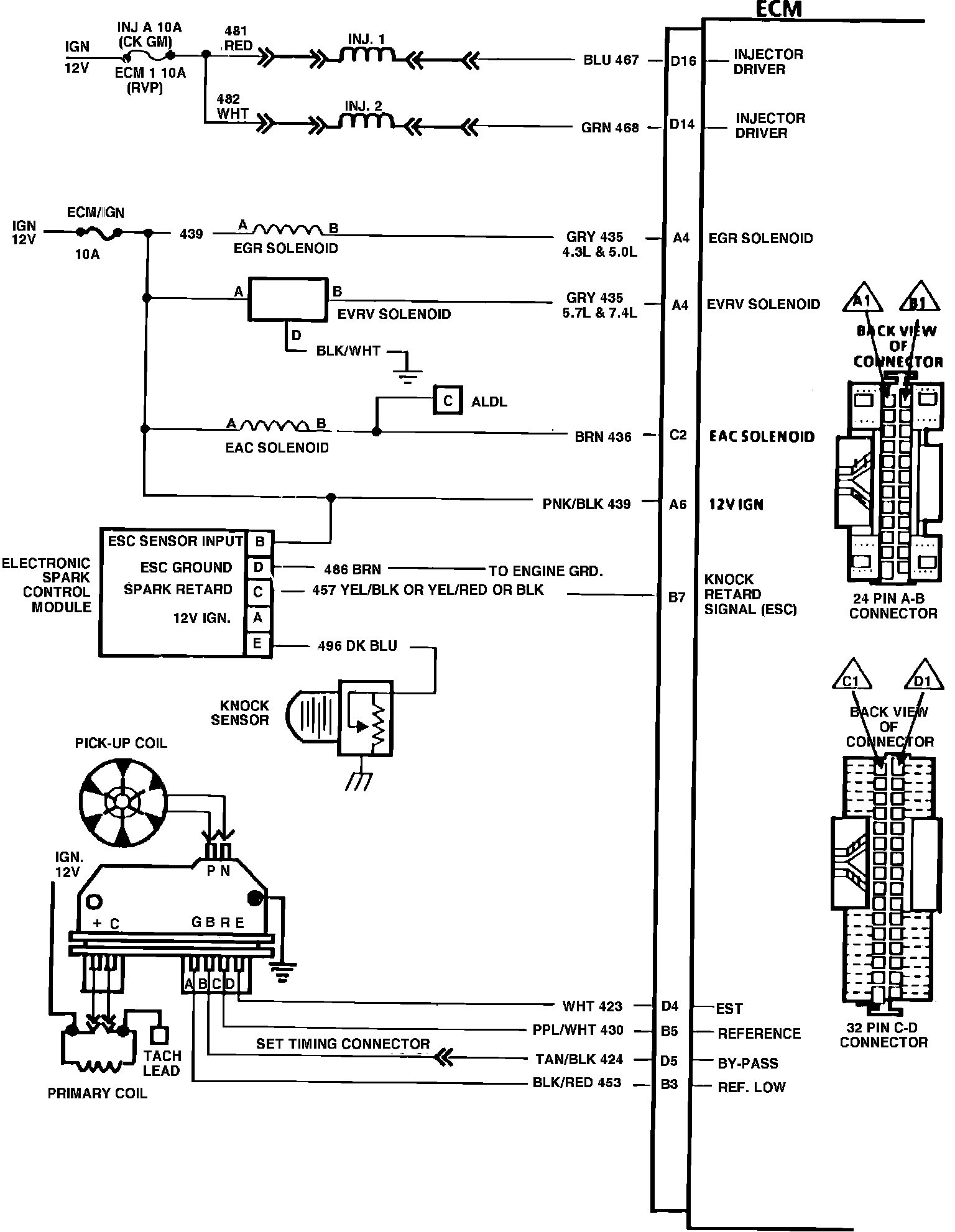

ECM Wiring Schematic (Part 1 of 4):

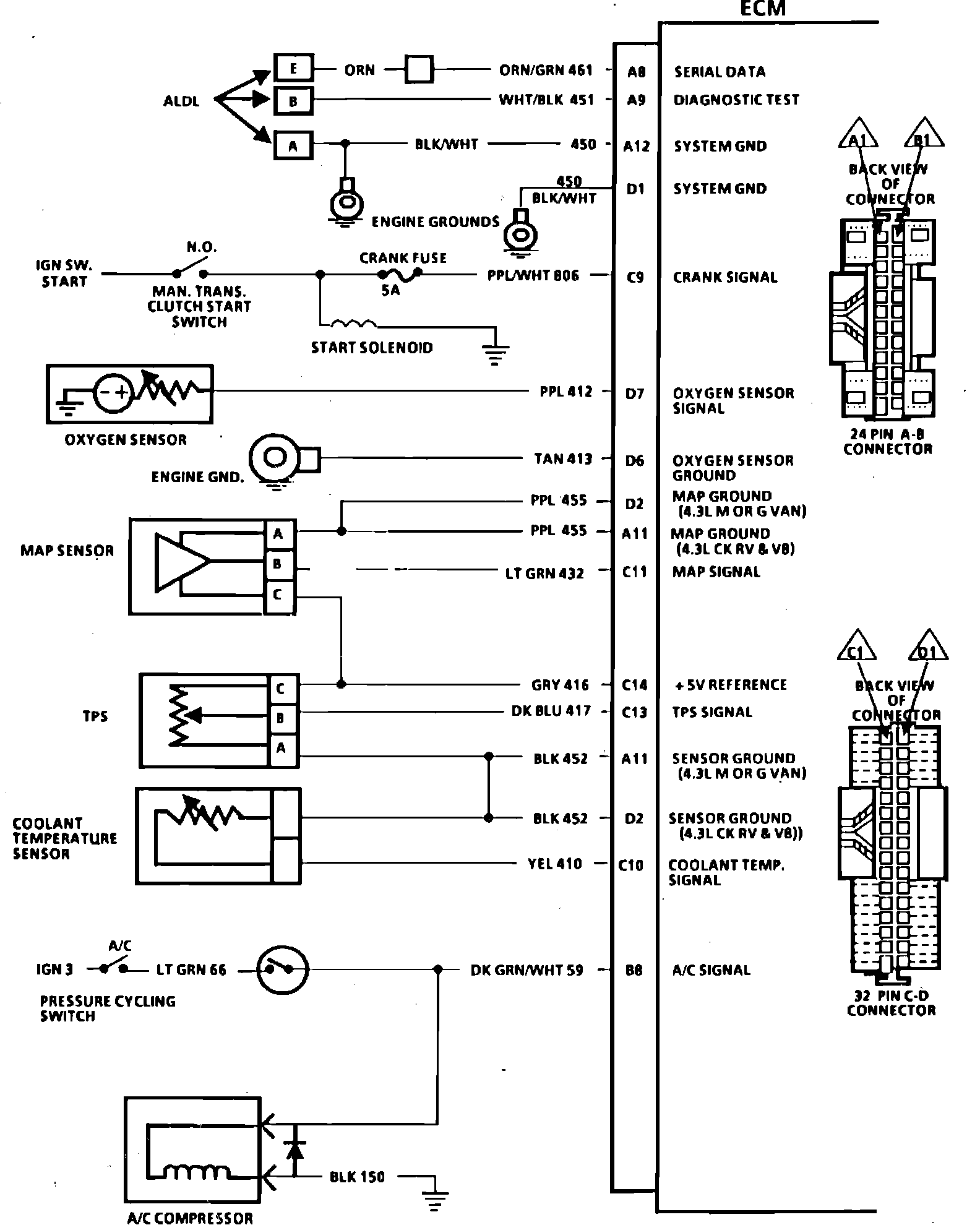

ECM Wiring Schematic (Part 2 of 4):

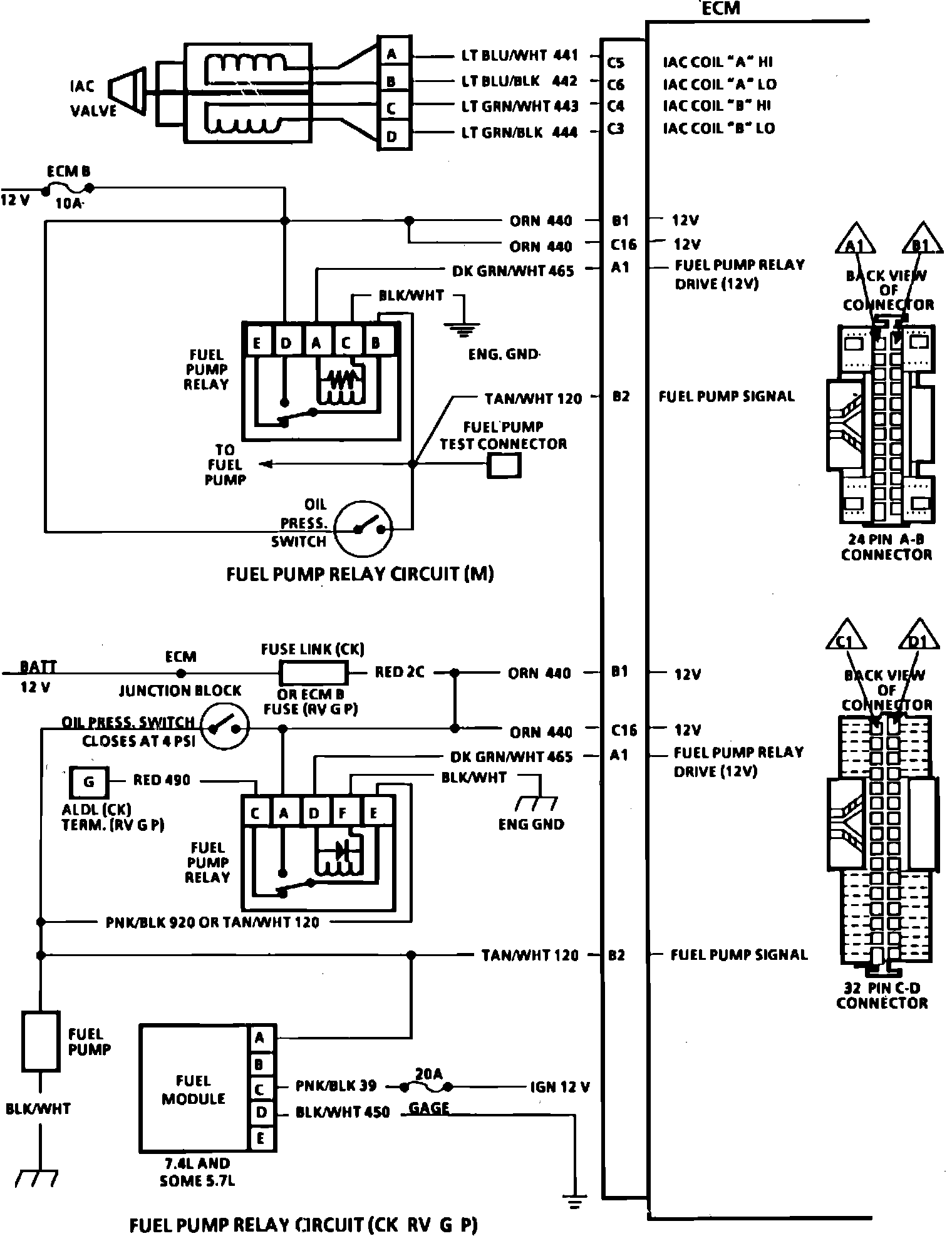

ECM Wiring Schematic (Part 3 of 4):

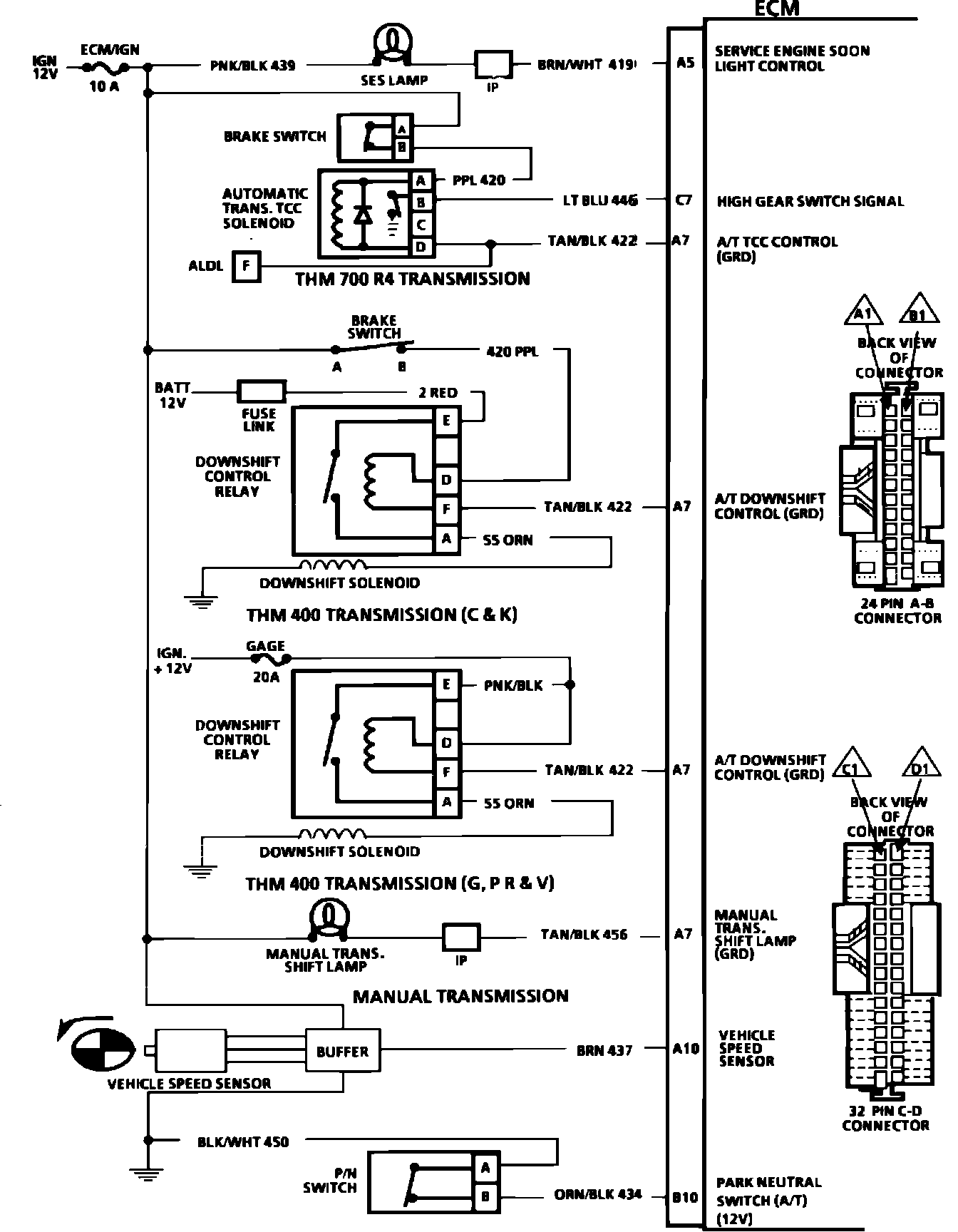

ECM Wiring Schematic (Part 4 of 4):
