Home >> Chevrolet >> 1987 >> Astro Van M L4-151 2.5L >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Testing and Inspection >> CS-144 Series Alternators

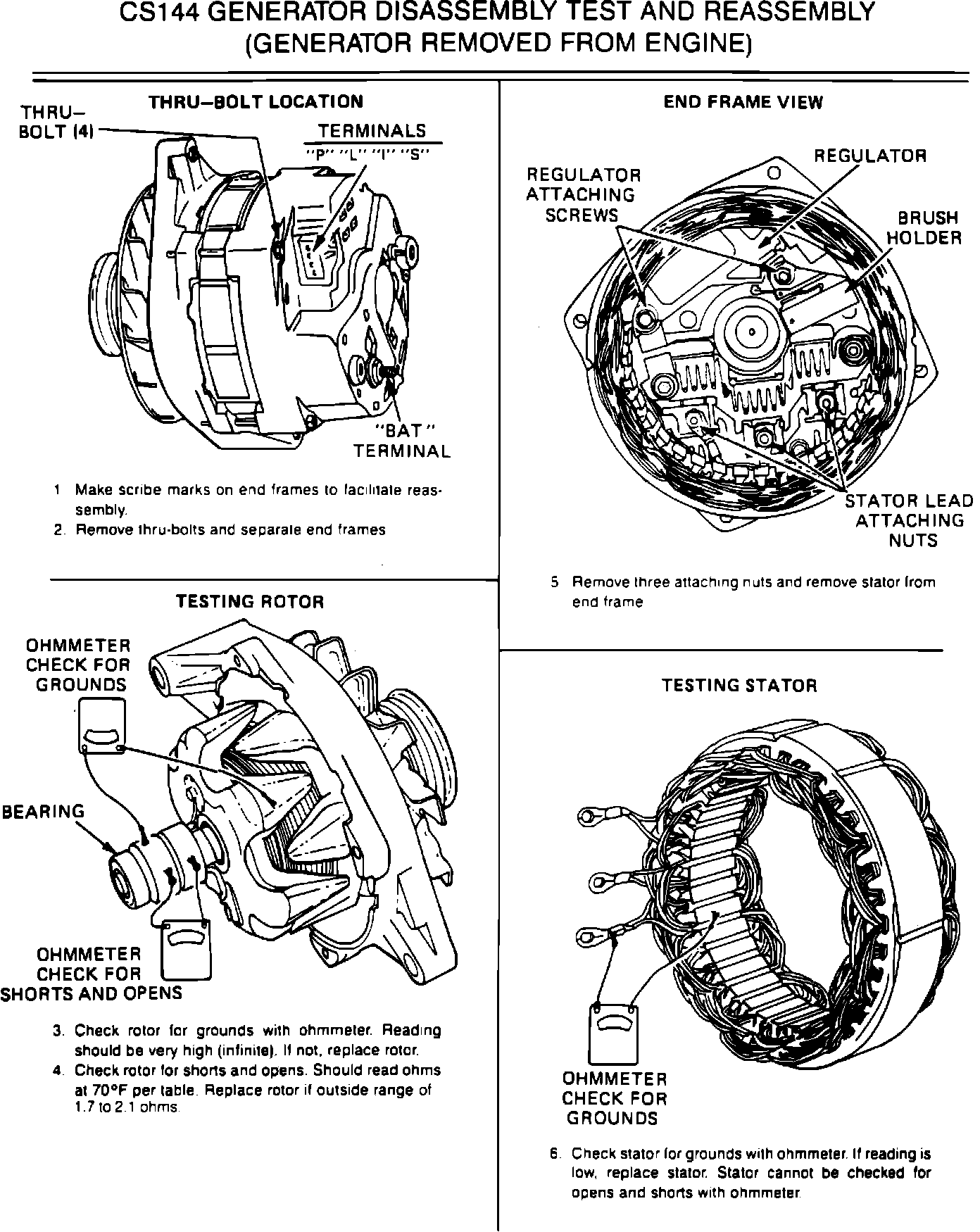

CS-144 Series Alternators

Testing Of CS Series Alternators - Part 1 Of 3:



Testing Of CS Series Alternators - Part 3 Of 3:



Testing Of CS Series Alternators - Part 2 Of 3:
