CT Switch
CT Switch

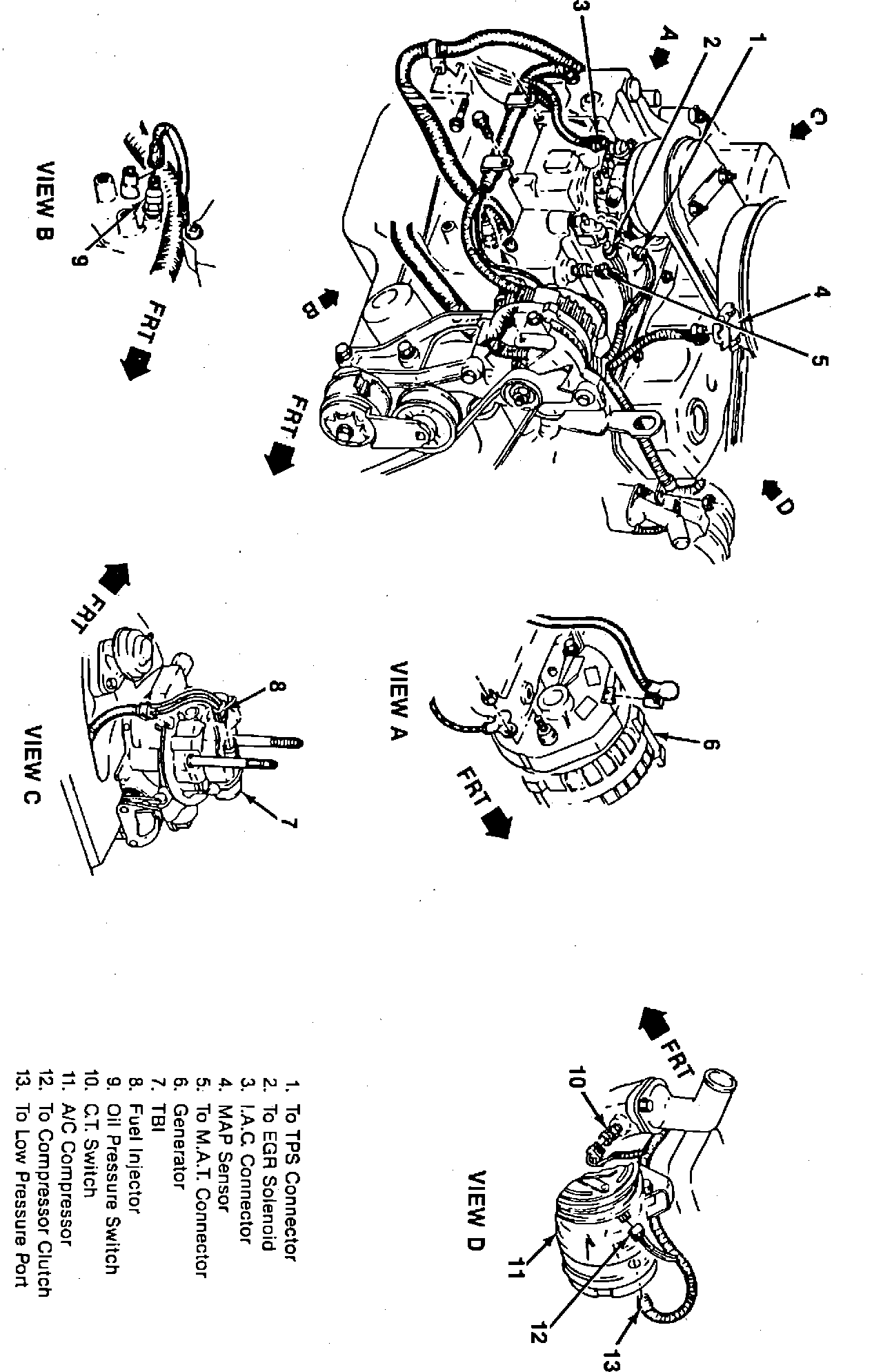

Right Side Engine Wiring Harness.:
In RH Side Of Engine Wiring Harness
Applicable to: 1987 Astro Van & Safari w/4-151/2.5L Engine
