Engine Specifications

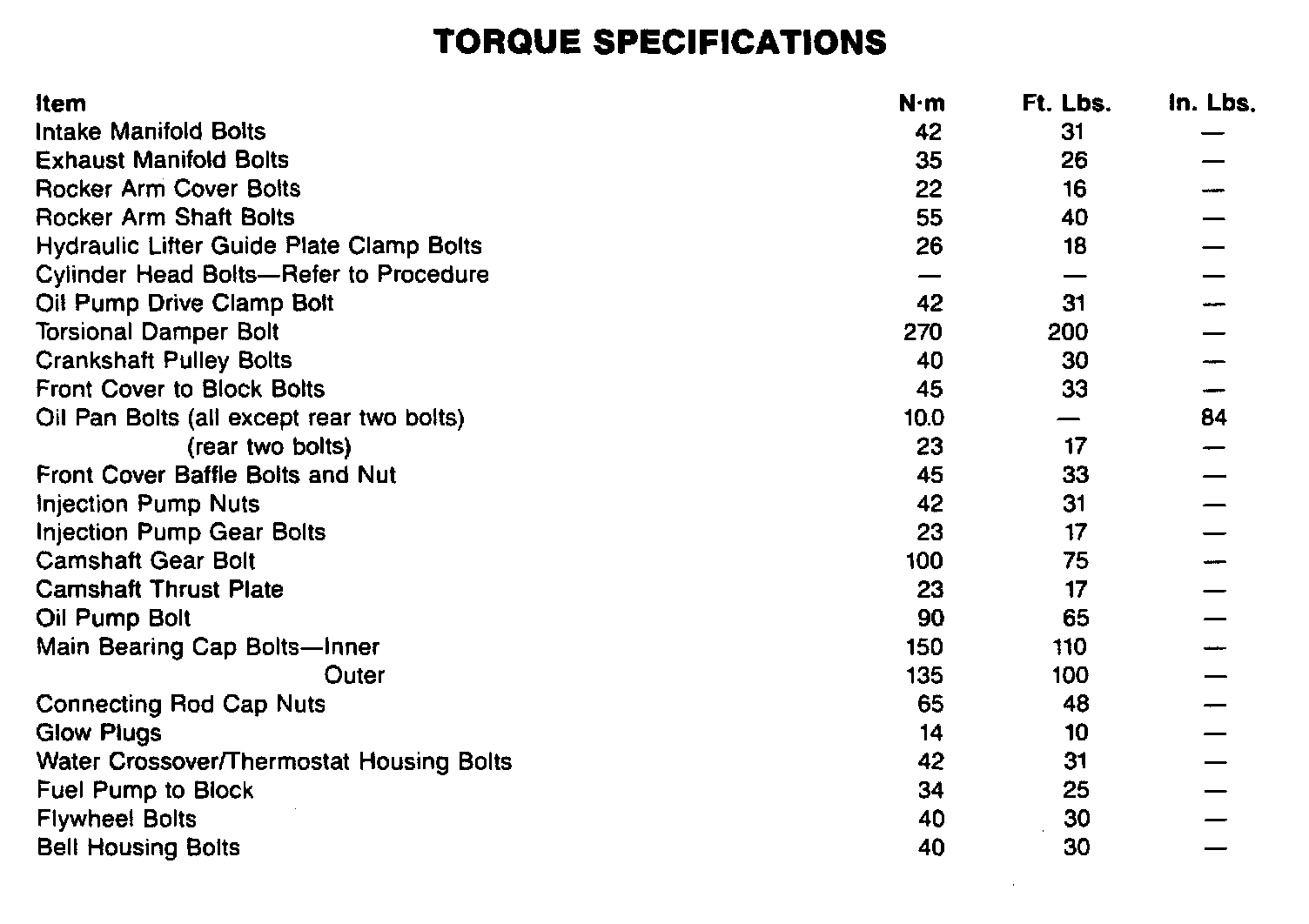

Torque Specifications:

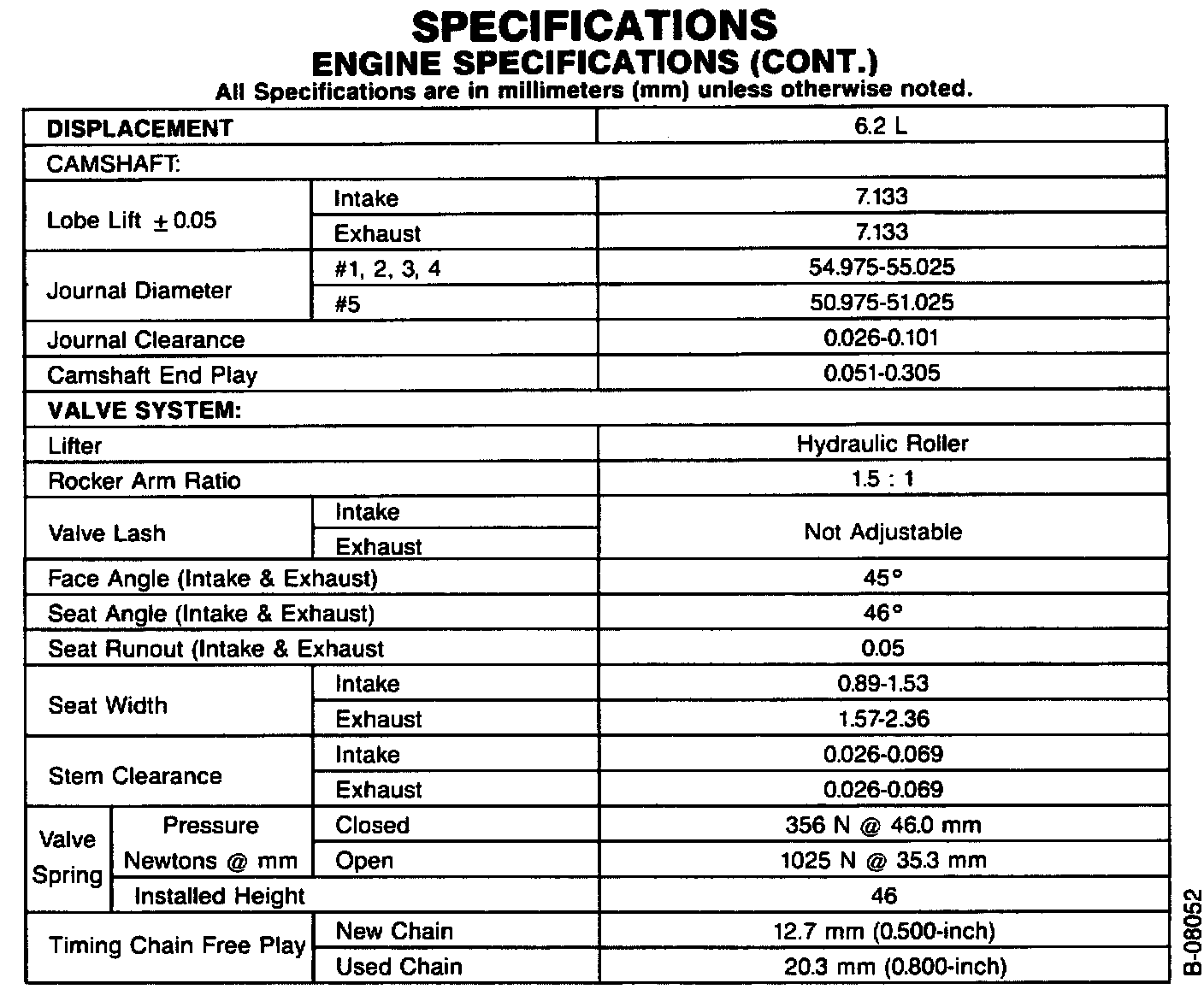

Engine Specifications:

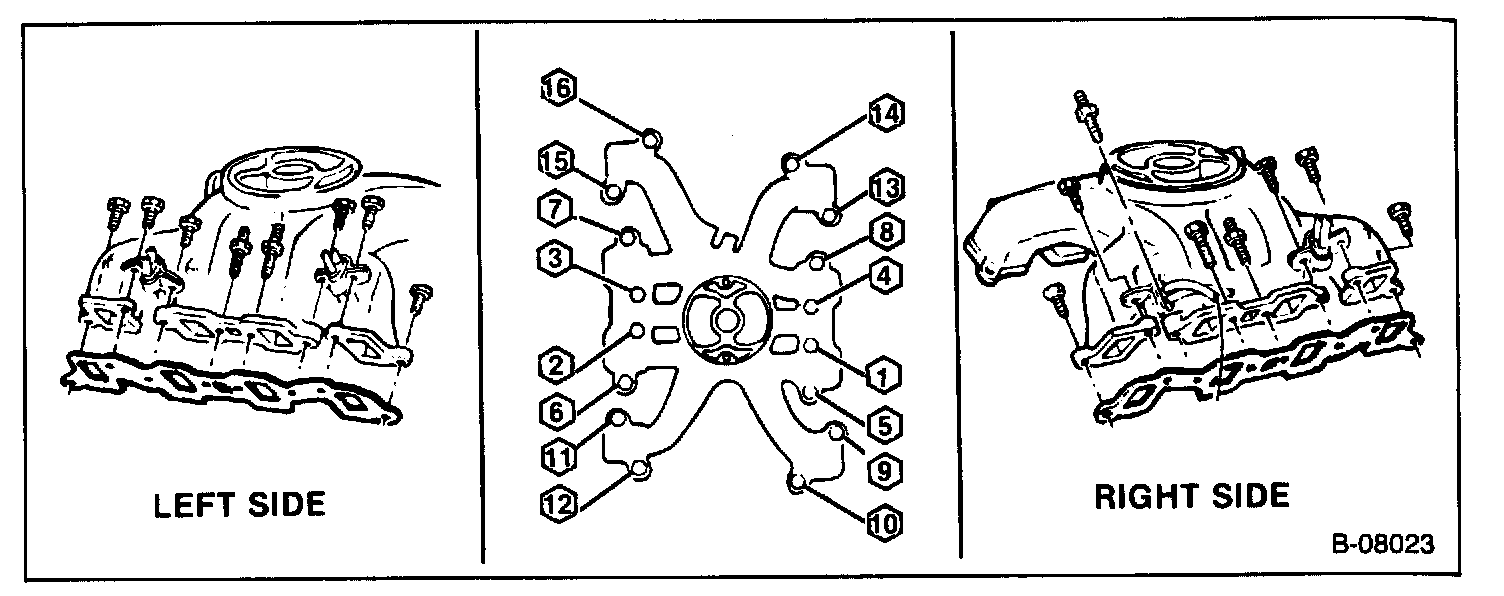

Intake Manifold Torque Sequence:

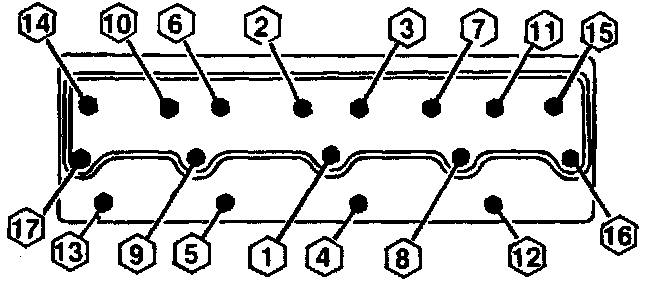

Cylinder Head Torque Sequence:
