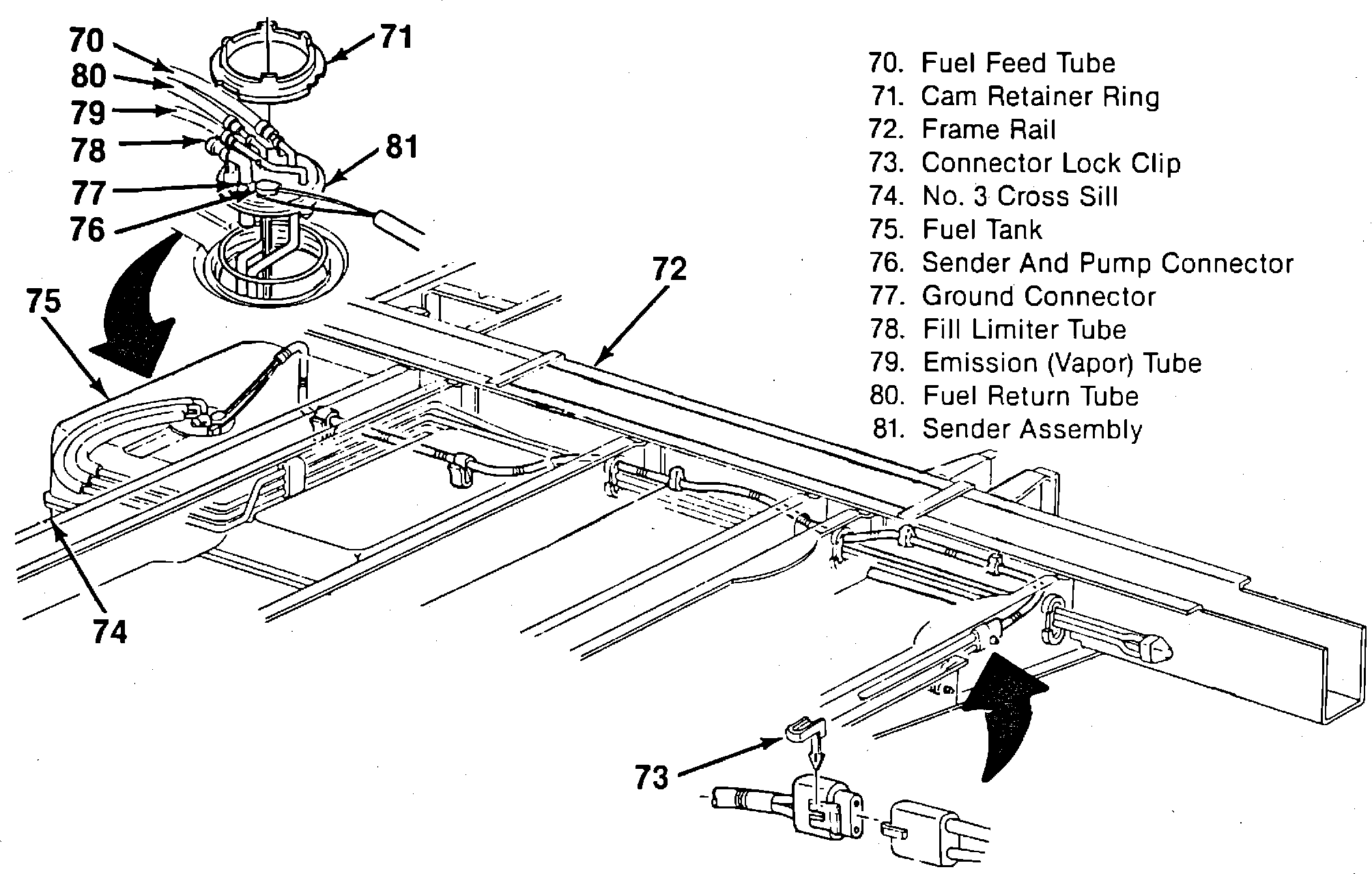

Fuel Sender Assembly

Fuel Gauge Sender Assembly:




In Fuel Tank

Applicable to: 1986 Astro Van & Safari
