Home >> Chevrolet >> 1985 >> G 10 Van V8-379 6.2L DSL >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

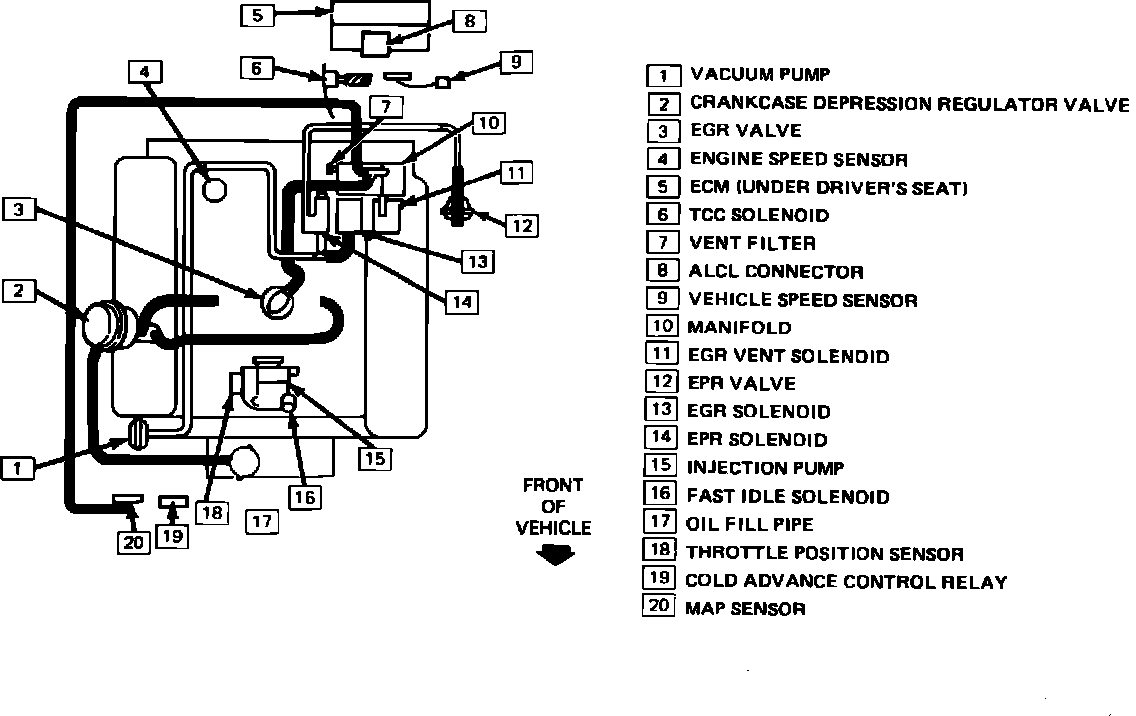

Fig. 118 Emission components locations. 1985 V8-379 Diesel G Series light duty emissions Calif.:
