Home >> Chevrolet >> 1985 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

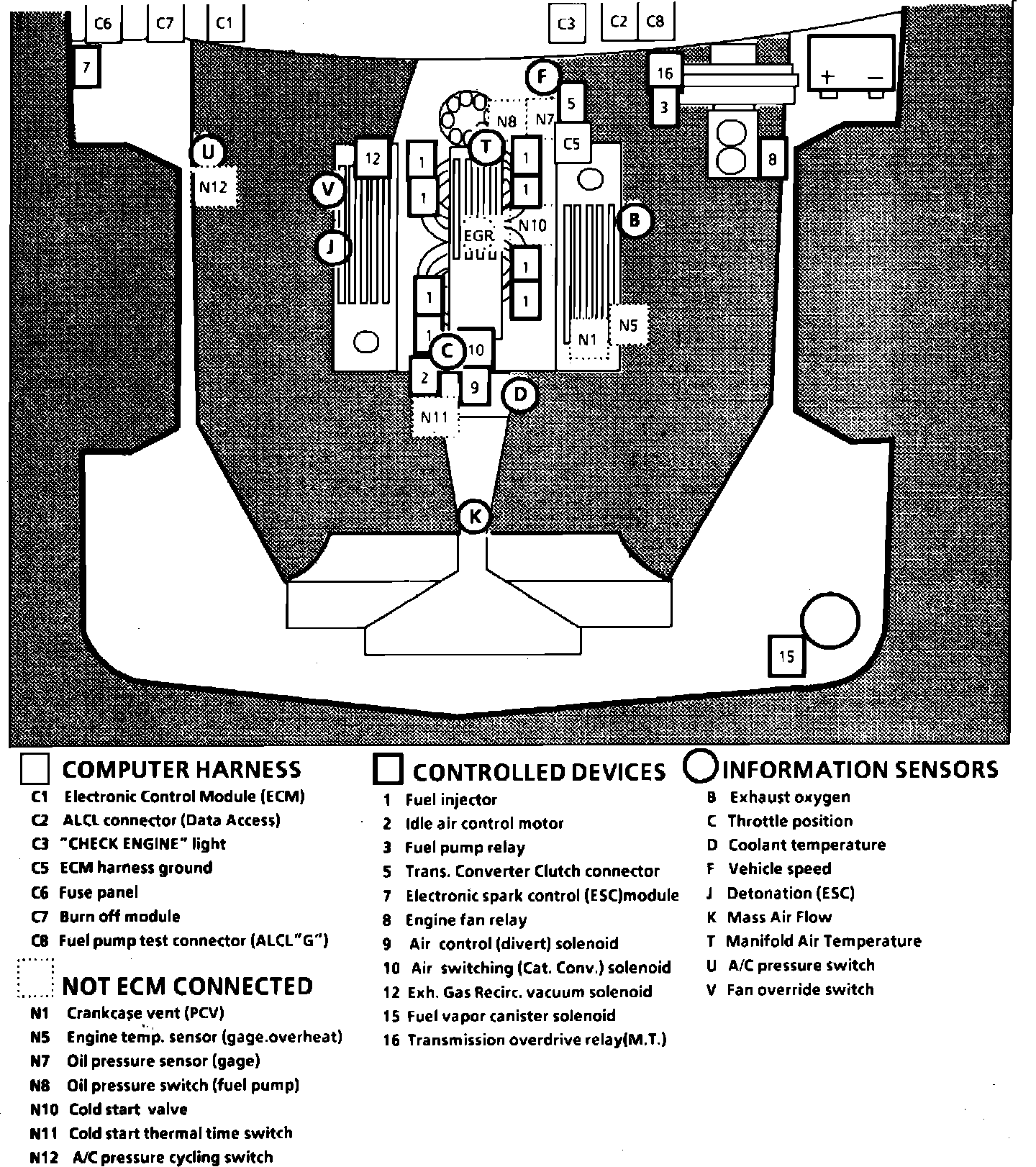

Fig. 31 Emission Component Location. 1985 Corvette W/V8-350/5.7L, PFI:
