System Specifications

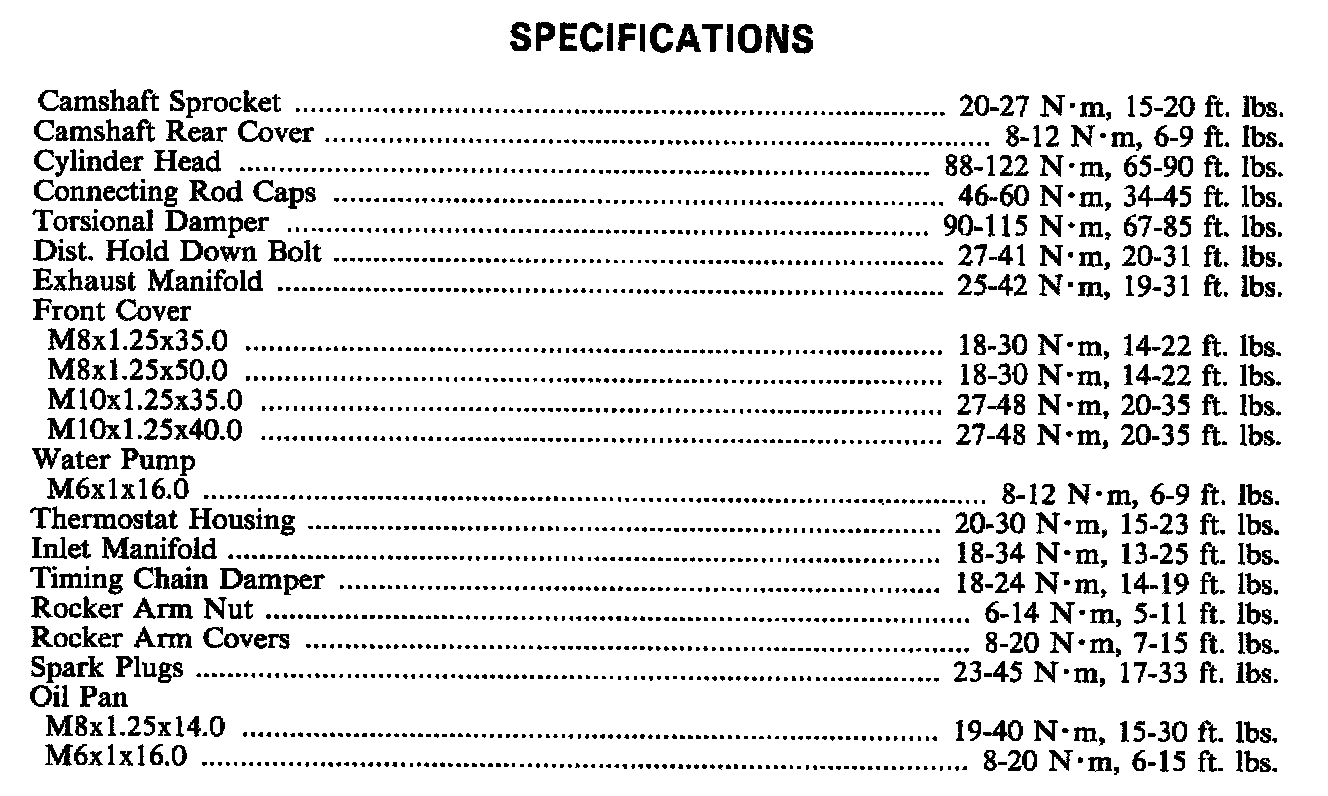

Torque Specifications:

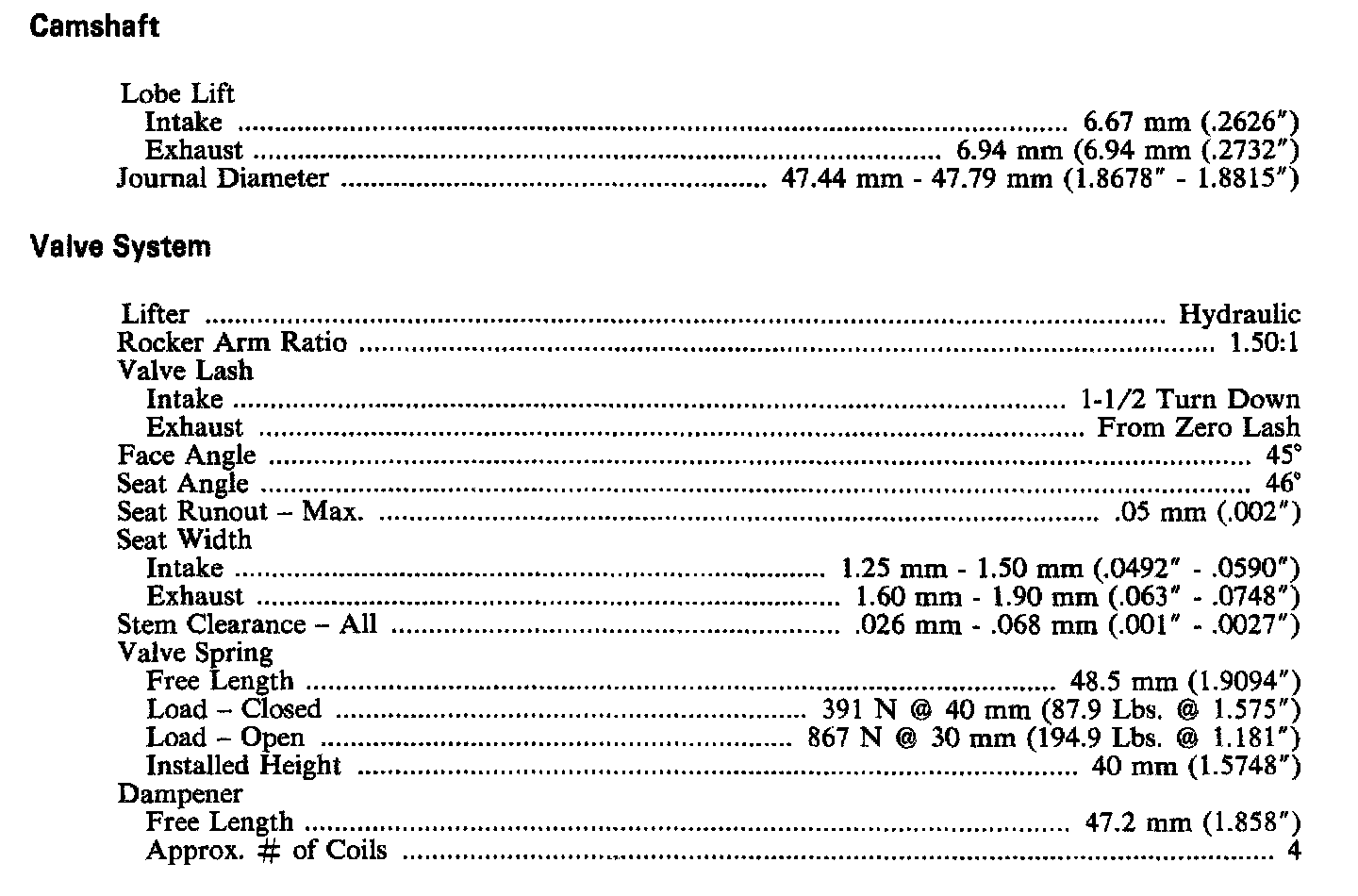

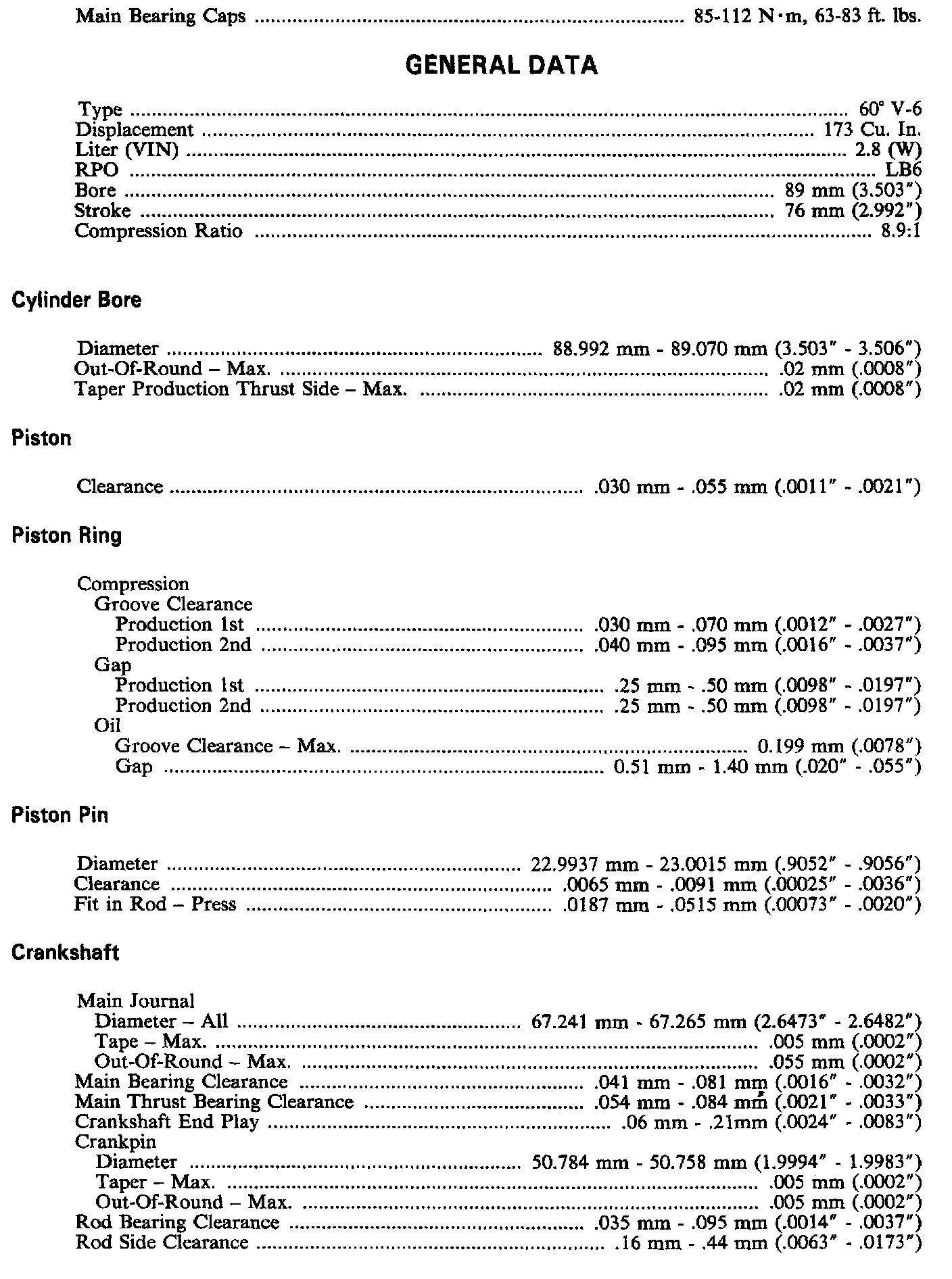

Continued Engine Specifications:

Continued Specifications:

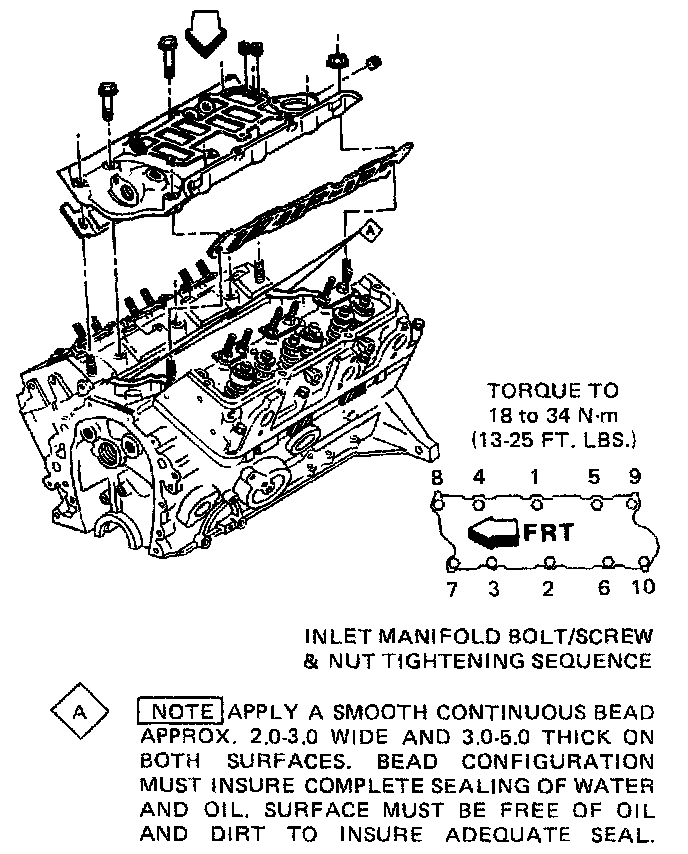

Intake Manifold Sequence:

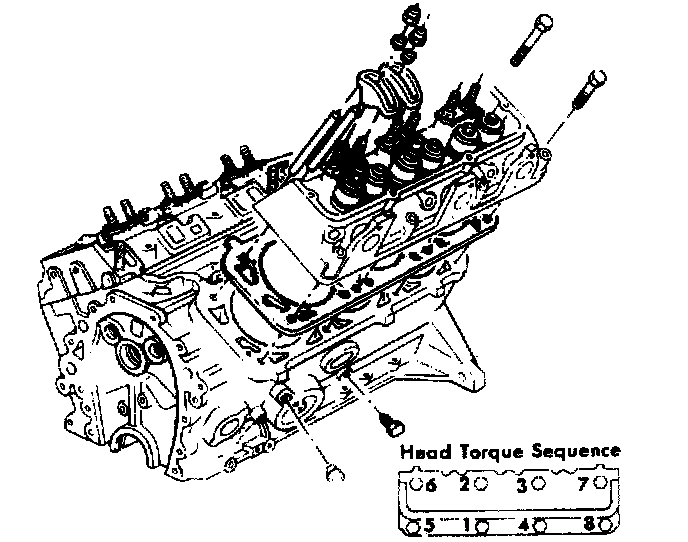

Cylinder Head Sequence:
