LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
1985
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
Engine Control Module

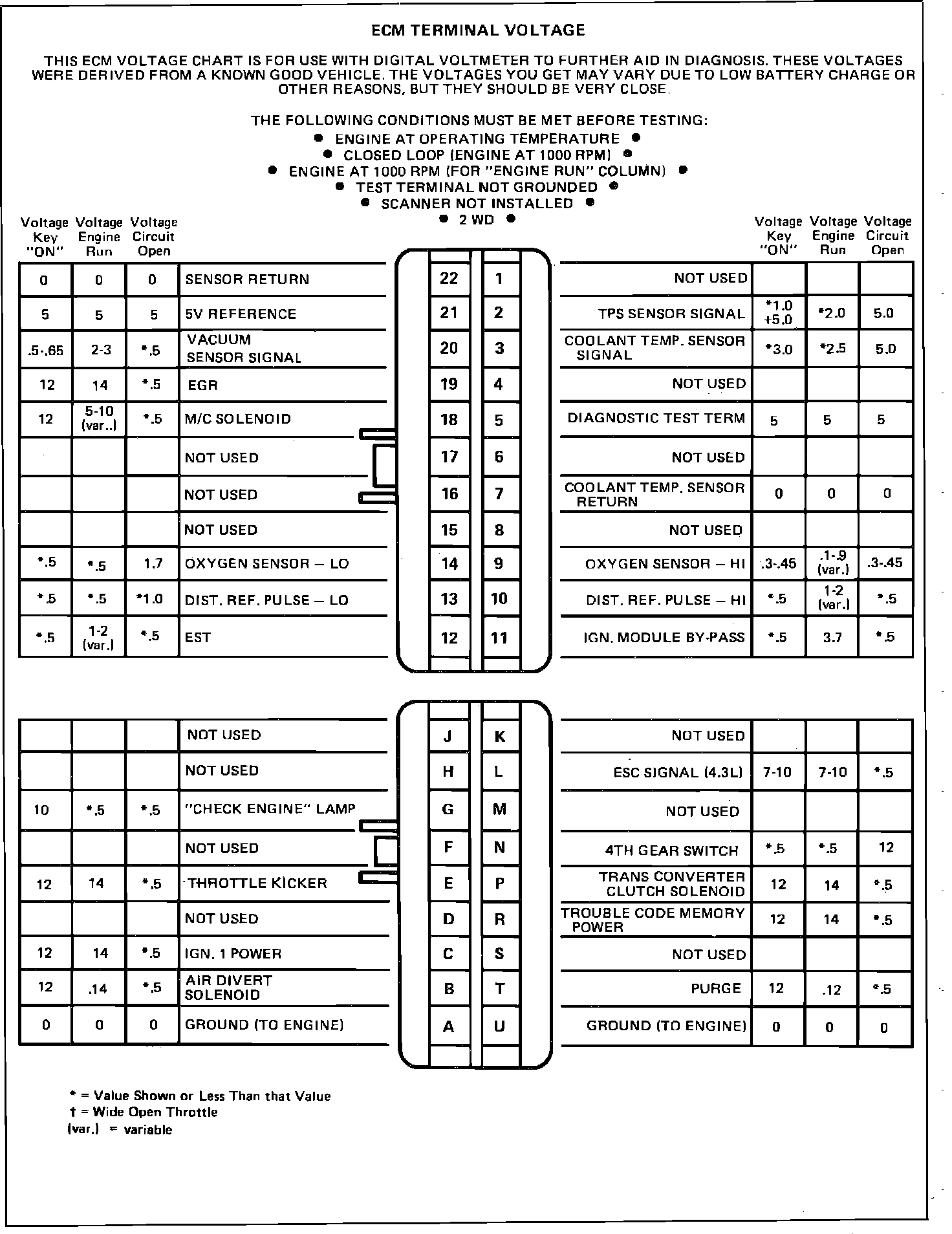

ECM Terminal Identification & Voltage Specifications:
