California Models

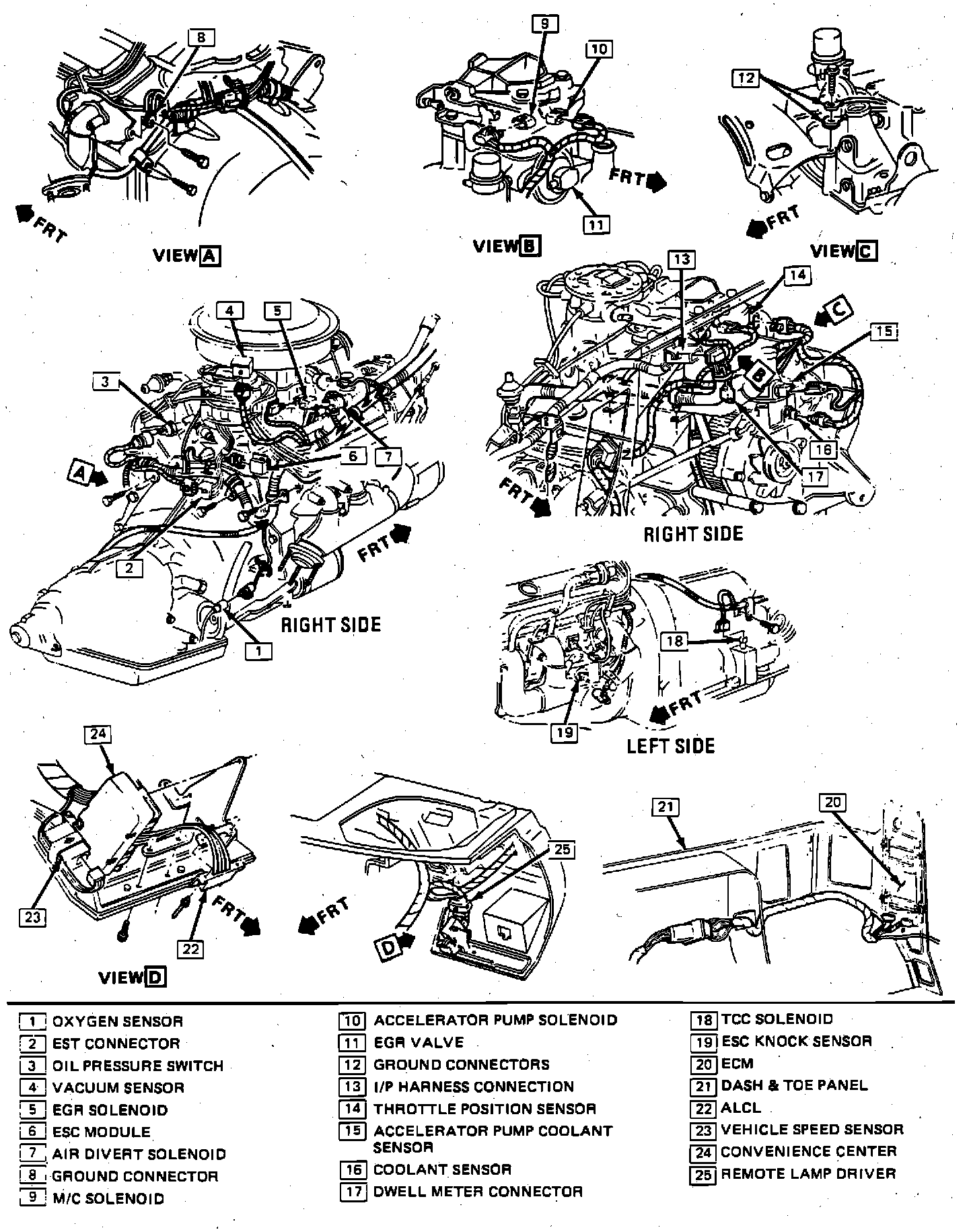

Rear RH Side Of Engine:




ECM Wiring:




Underhood Components:





Rear RH Side Of Engine
