Emission Control Systems: Locations

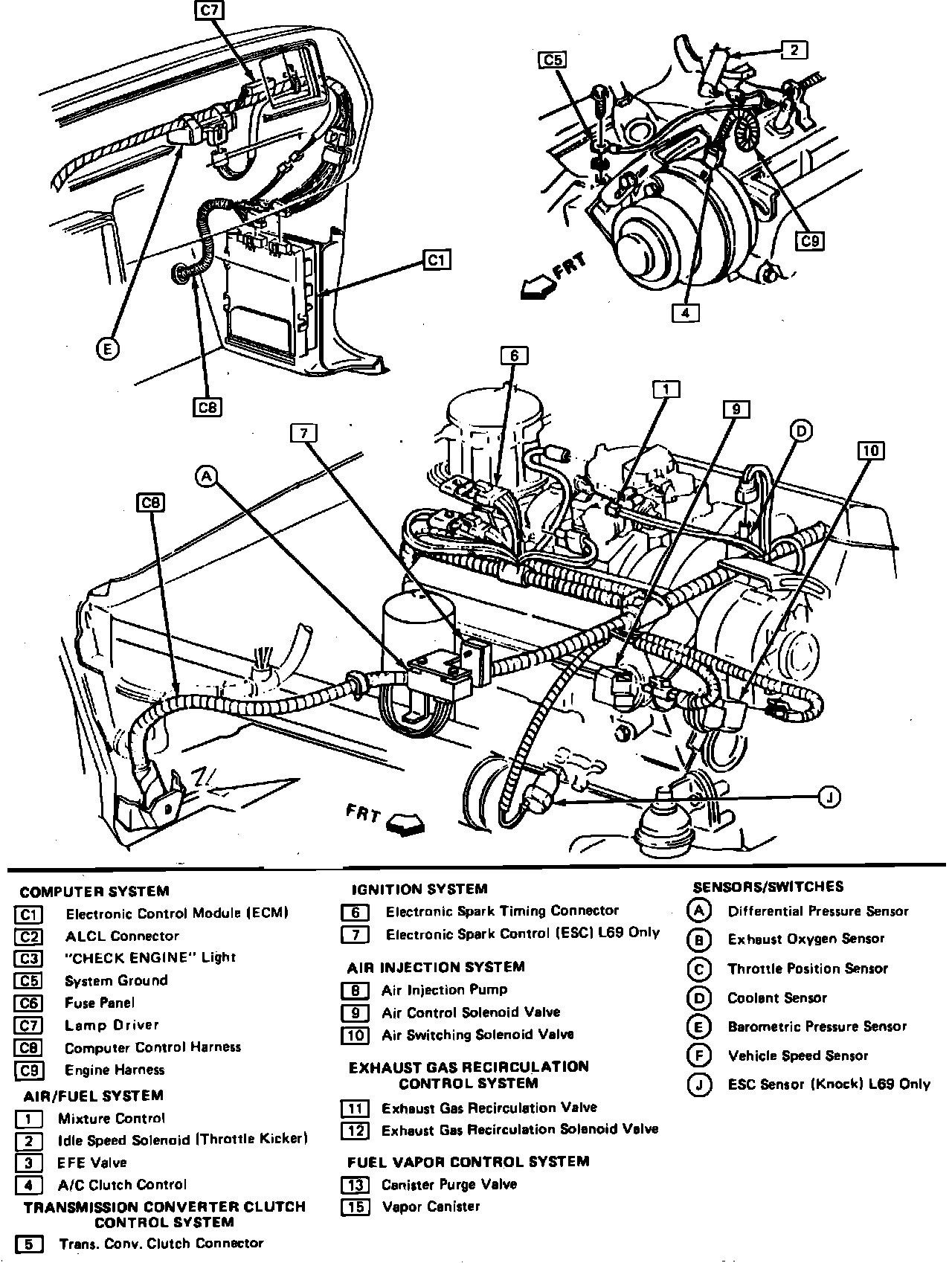

Fig. 12a Emission Control System Components (Part 1 of 2). 1984 V8-305 & 350 Chevrolet:

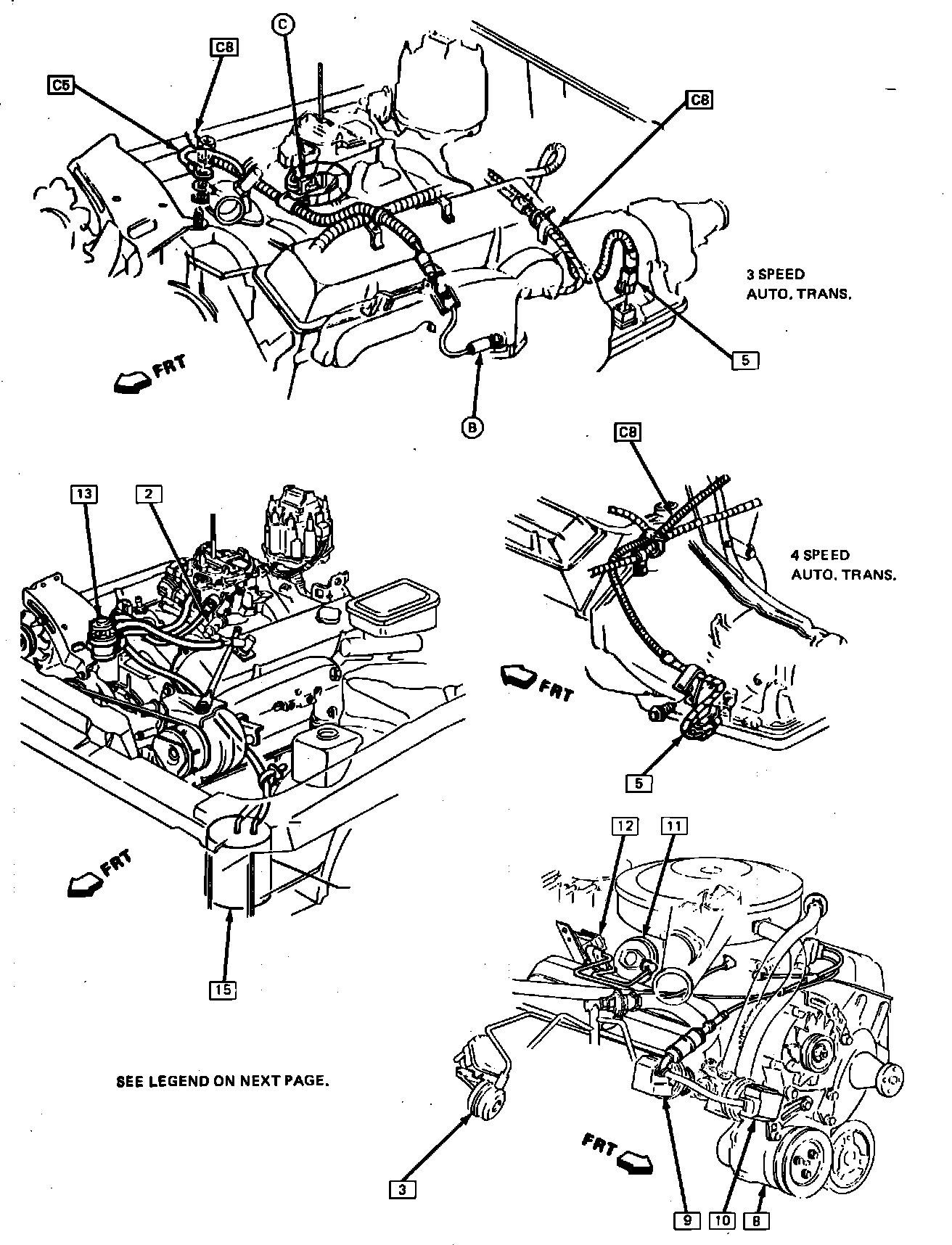

Fig. 12b Emission Control System Components (Part 2 of 2). 1984 V8-305 & 350 Chevrolet:
