Home >> Chevrolet >> 1984 >> Chevette L4-98 1.6L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Testing and Inspection

Air Injection: Testing and Inspection

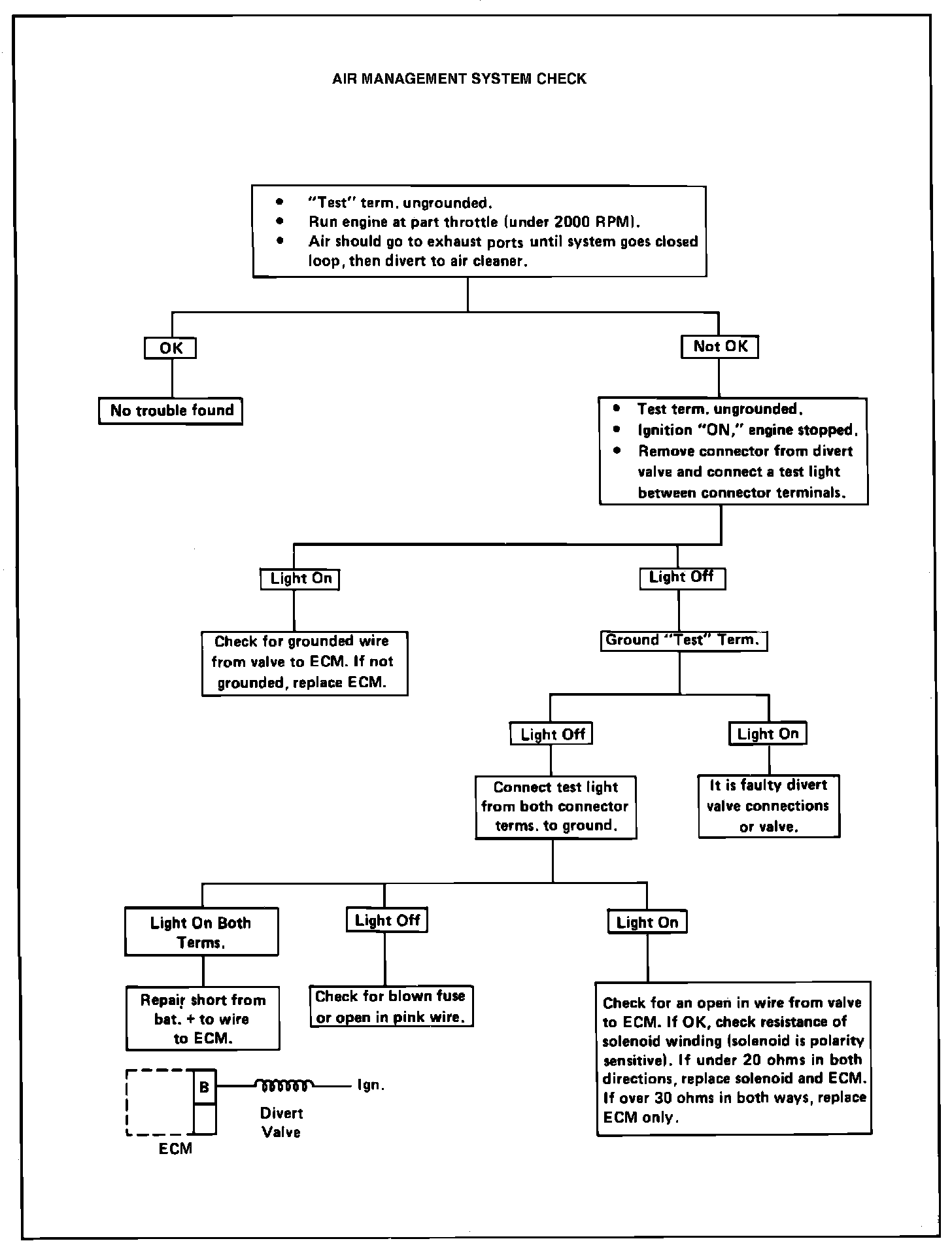

Fig. 26 Chart C-4 Air Management System Check:
