System Specifications

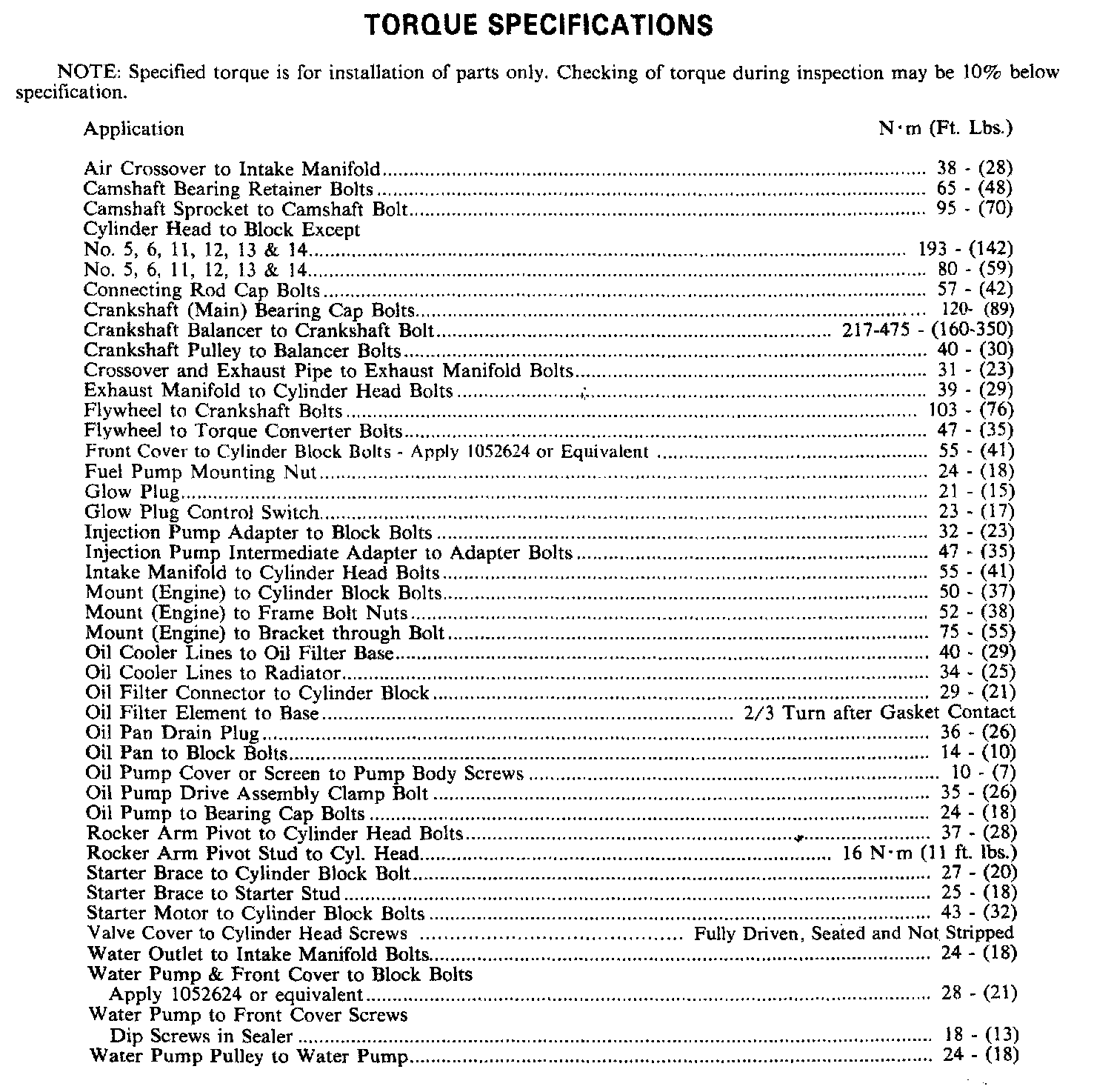

Torque Specifications:

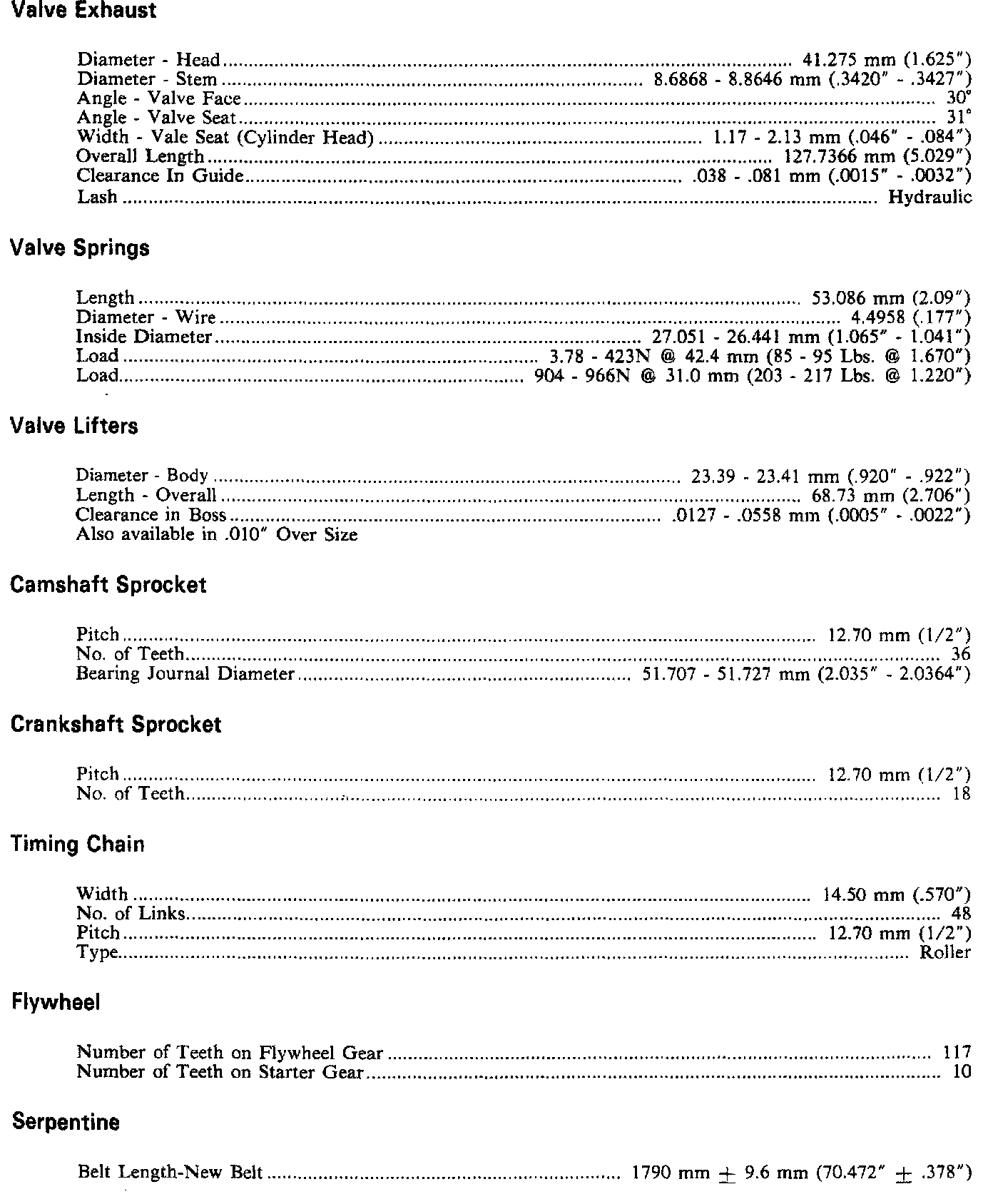

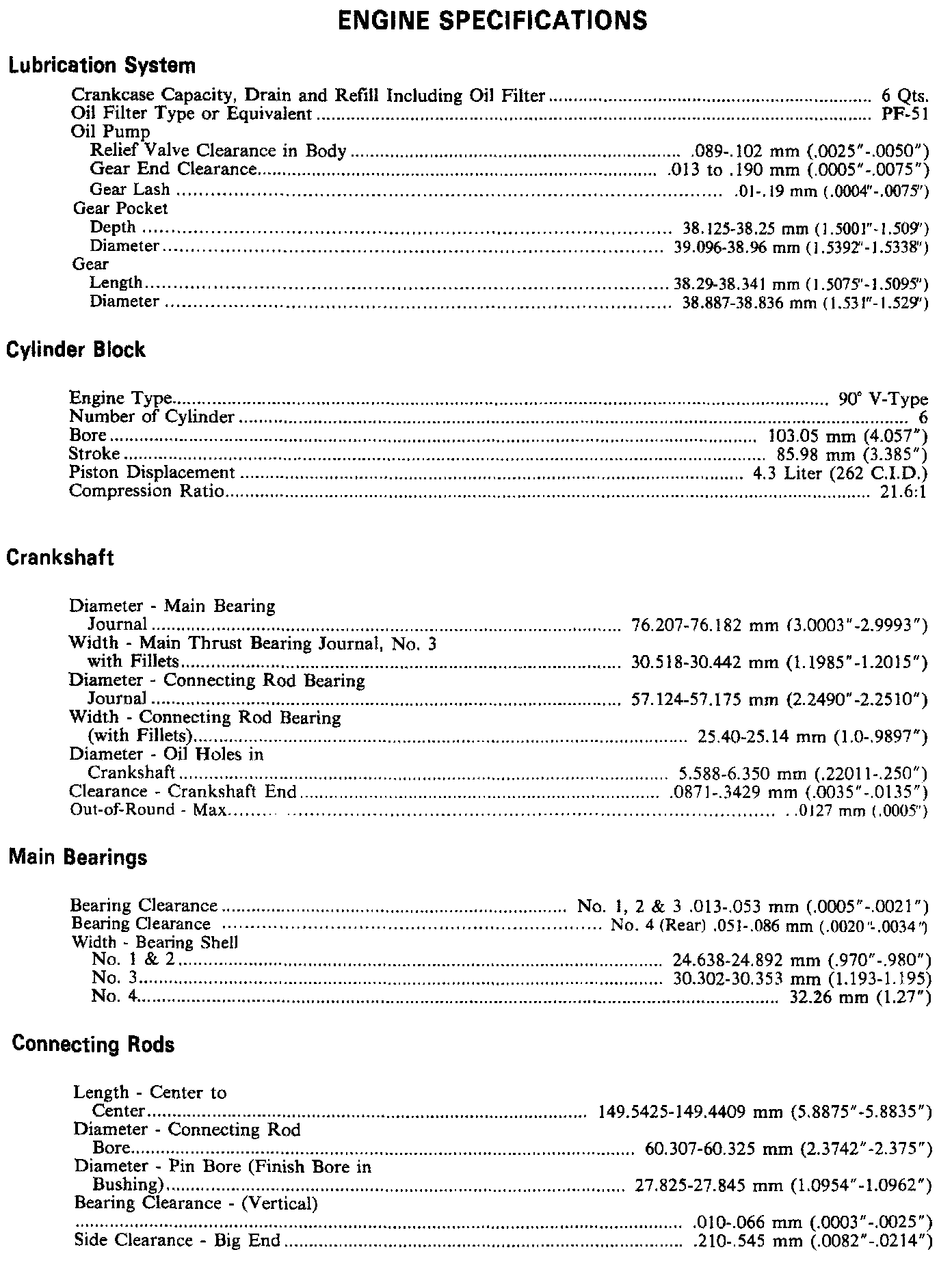

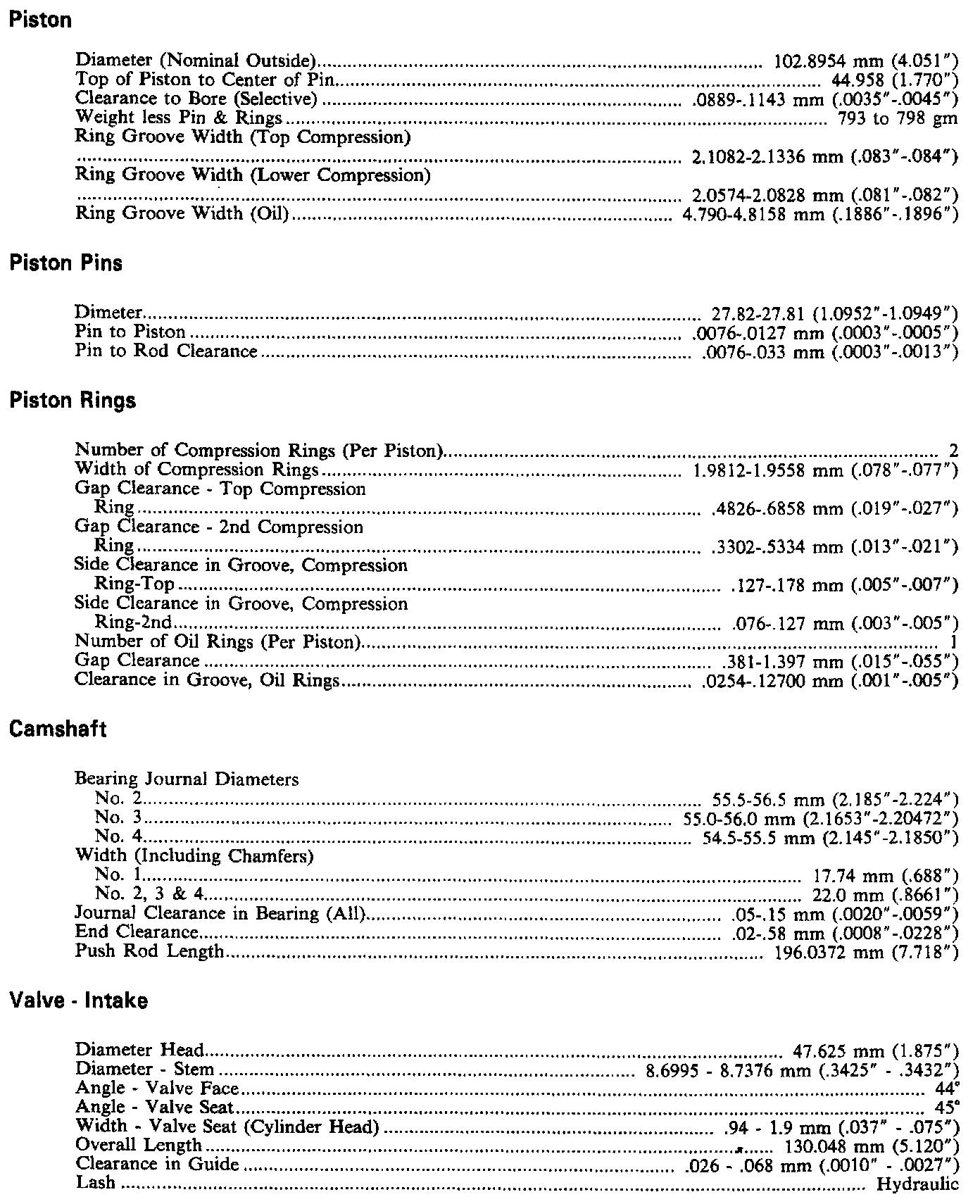

Engine Specifications:




Engine Specifications:




Engine Specifications:





Intake Manifold Torque Sequence:





Cylinder Head Torque Sequence:
