System Specifications

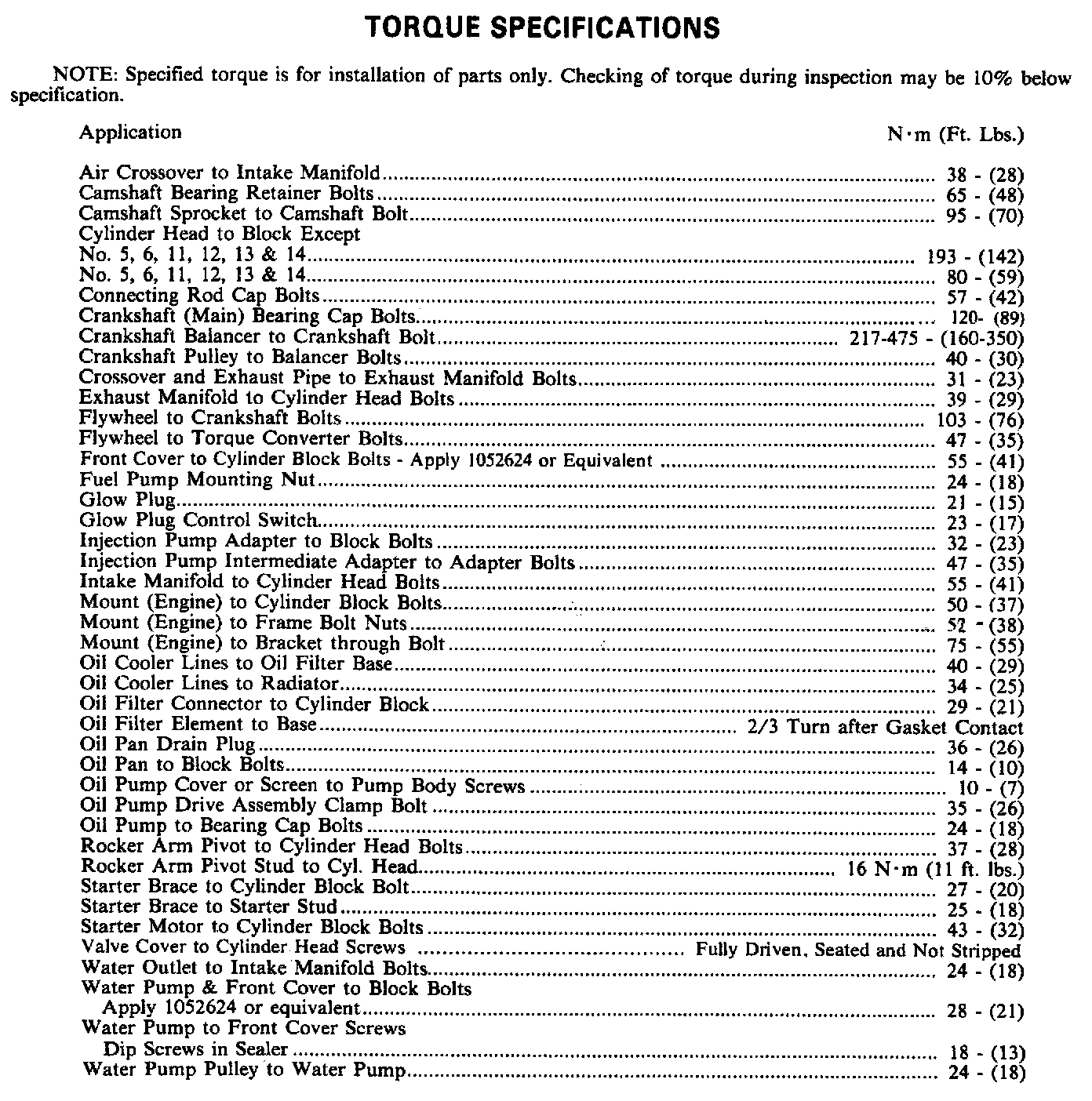

Torque Specifications:

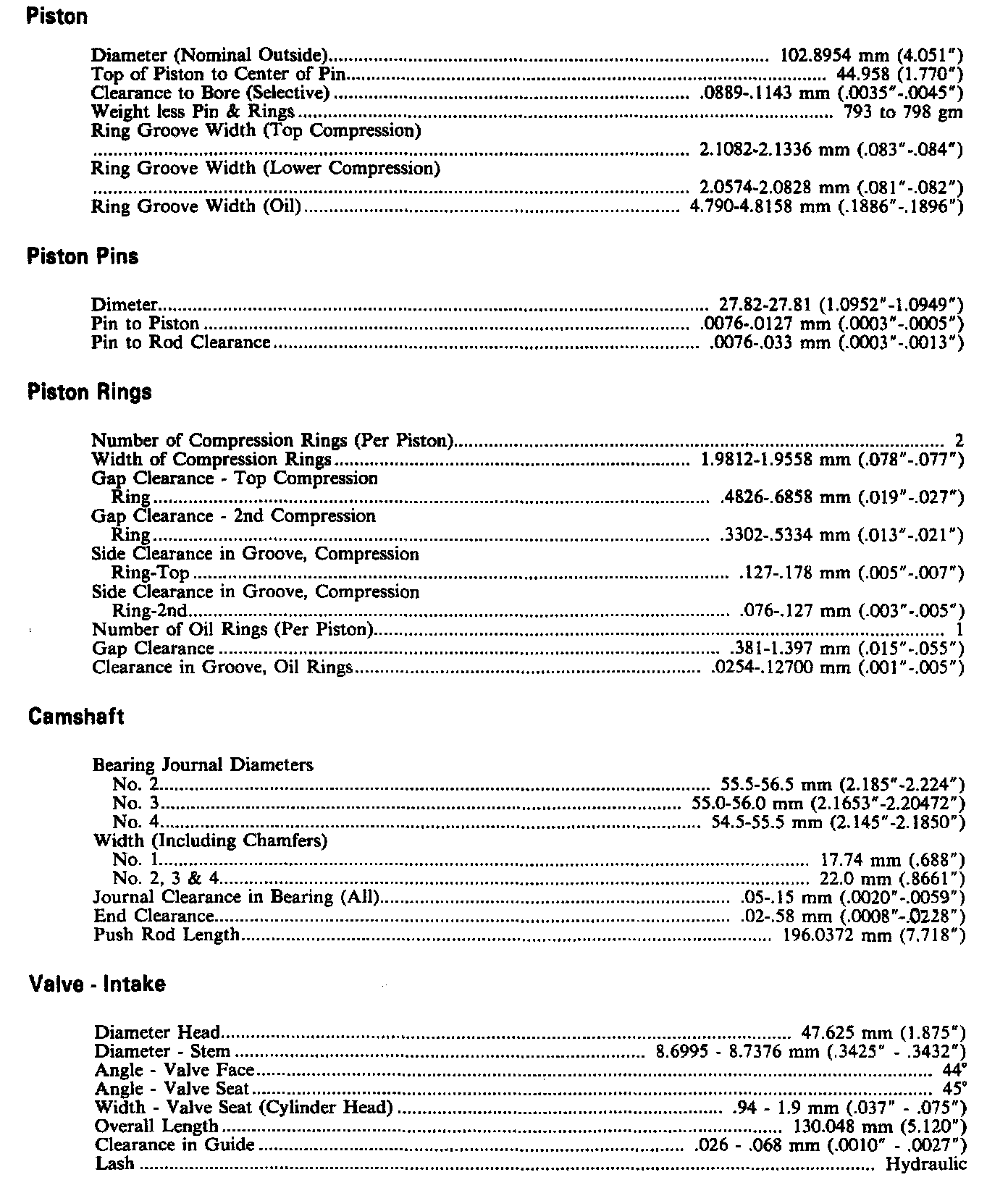

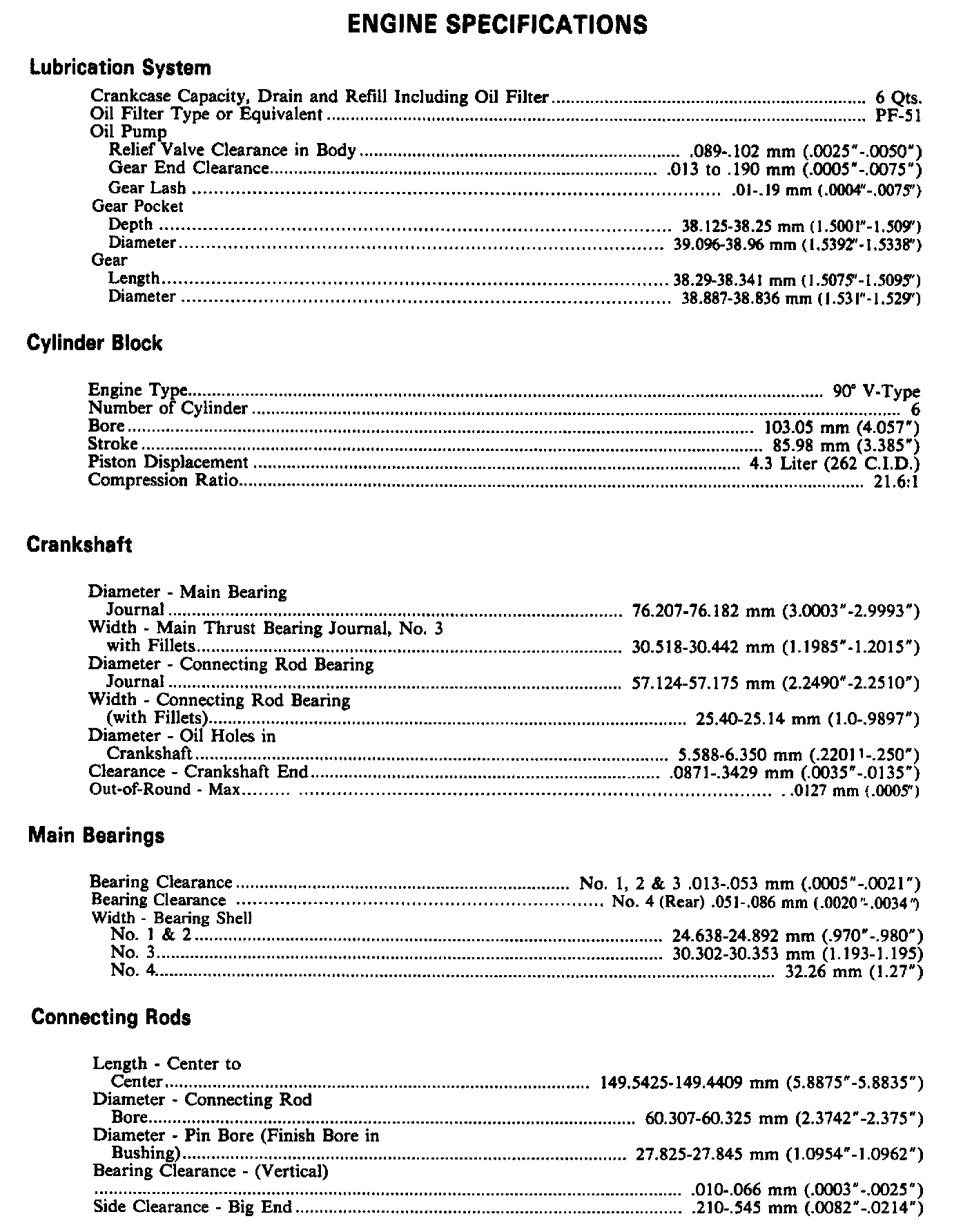

Continued Engine Specifications:

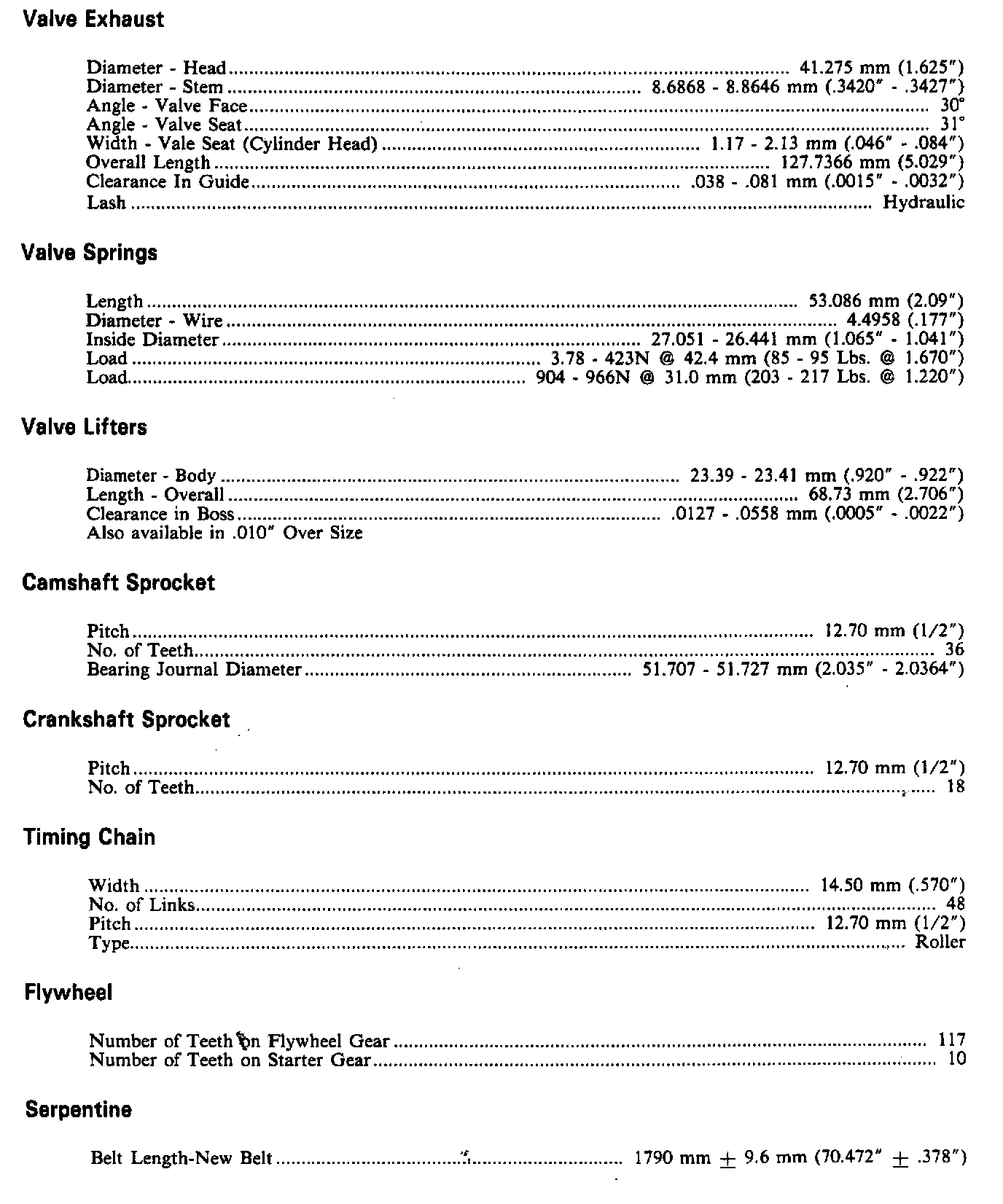

Continued Engine Specifications:







Intake Manifold Sequence:





Cylinder Head Sequence:
