Home >> Chevrolet >> 1982 >> Monte Carlo V6-229 3.8L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Electronic/Engine Control Module (ECM)

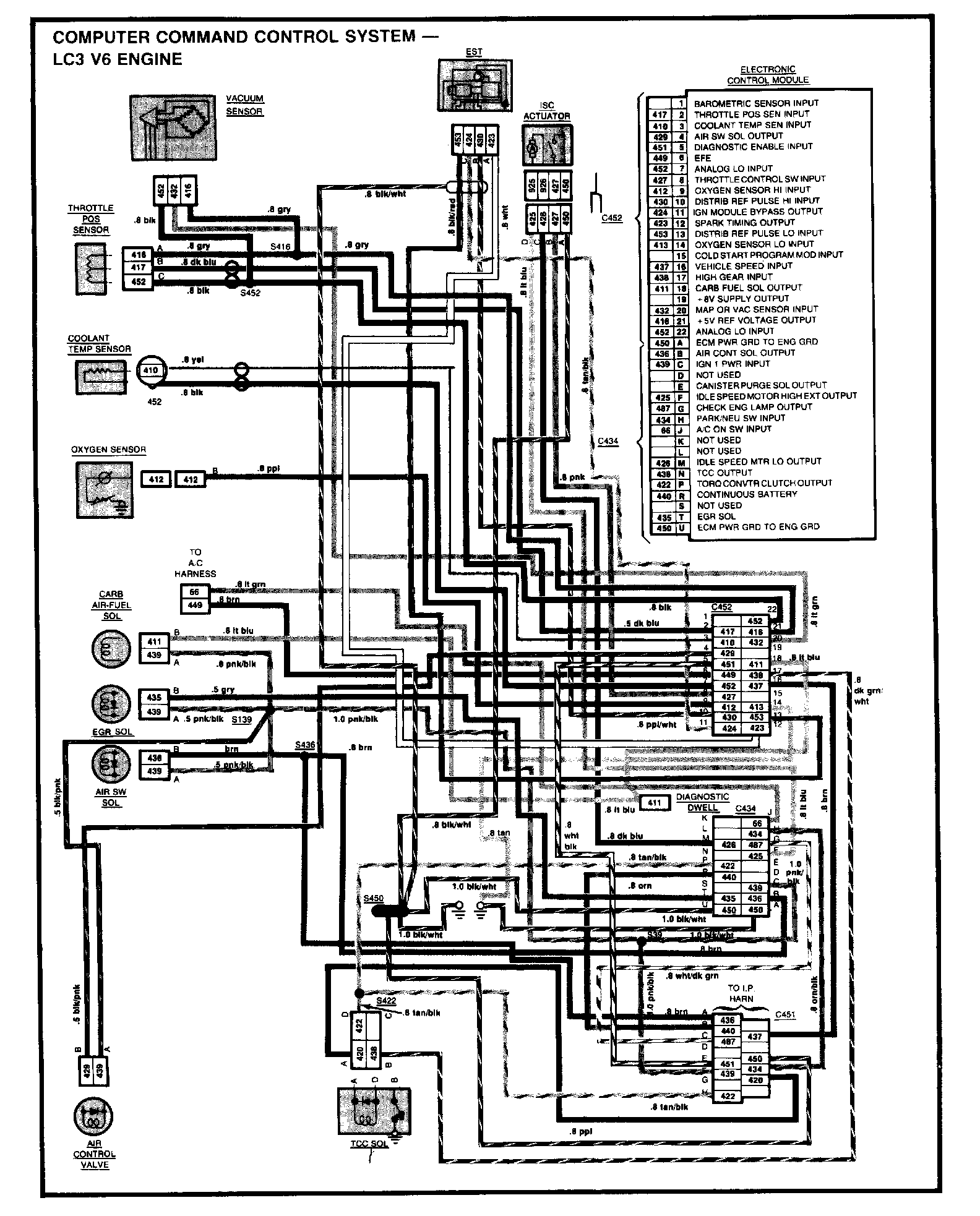

Electronic/Engine Control Module (ECM)
