Home >> Chevrolet >> 1982 >> EL Camino V6-231 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Idle/Throttle Speed Control Unit >> Testing and Inspection

Idle/Throttle Speed Control Unit: Testing and Inspection

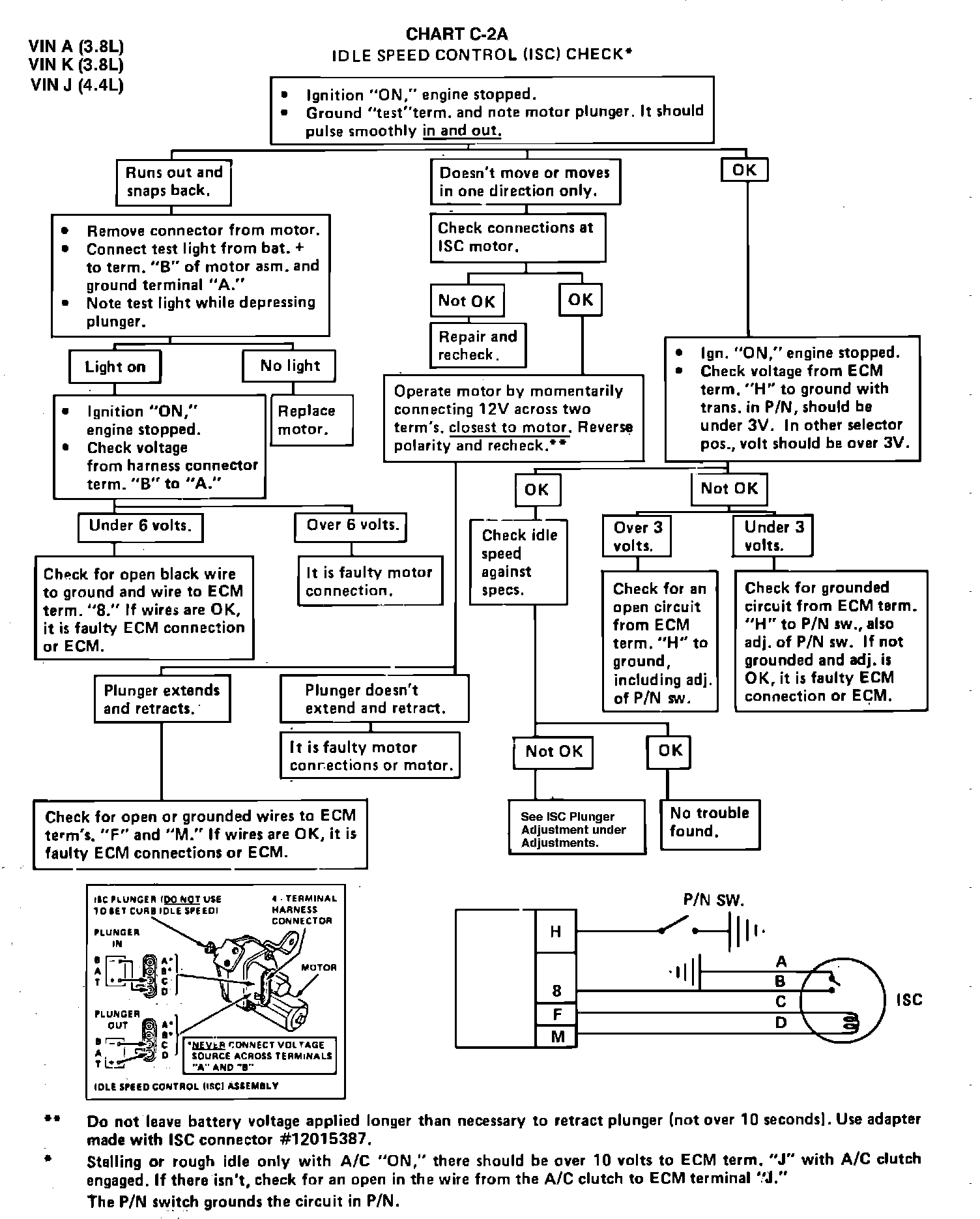

Chart C-2A - Idle Speed Control (ISC) Check:
