LEMON Manuals: Even more car manuals for everyone
Home >> Chevrolet >> 1982 >> Chevette L4-98 1.6L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Valve >> Testing and Inspection

EGR Valve: Testing and Inspection

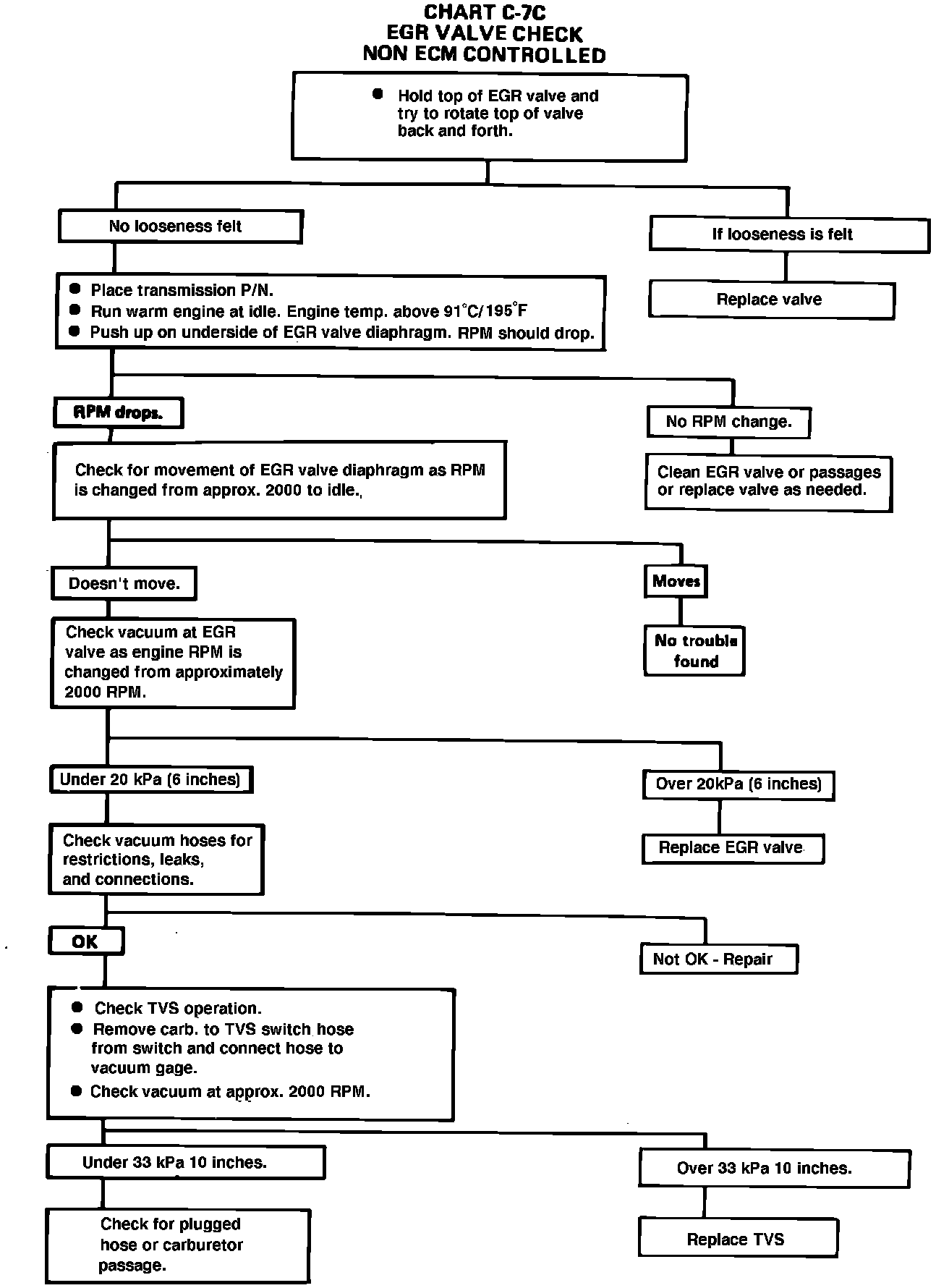

Fig. 042 - Chart C-7C EGR Valve Check Non-ECM Controlled.:
