Check Engine Light, Idle Speed Control

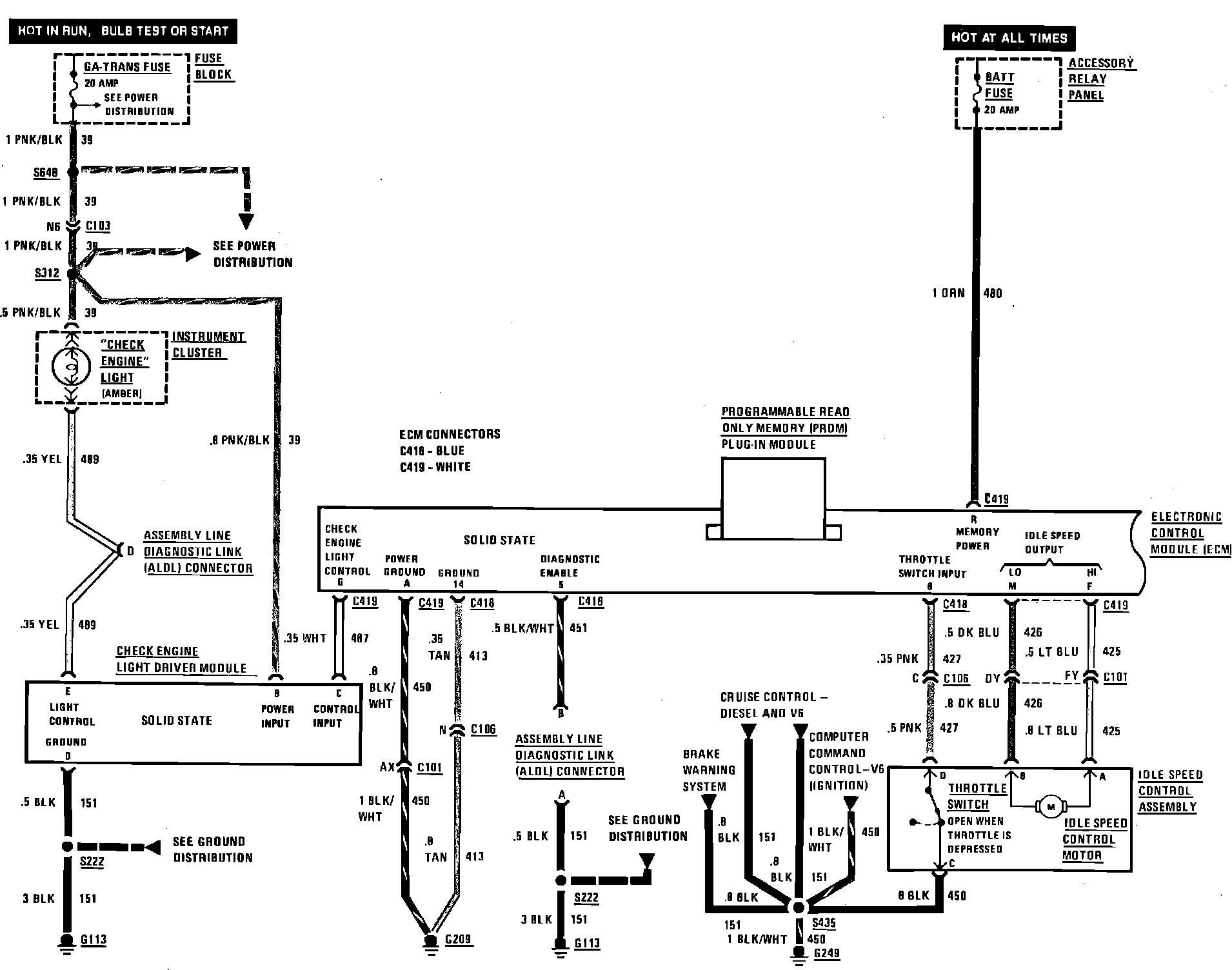

Computer Command Control (Check Engine Light, Idle Speed Control):
