Diagnostic Circuit Check - Full Function System
Diagnostic Circuit Check - Full Function System

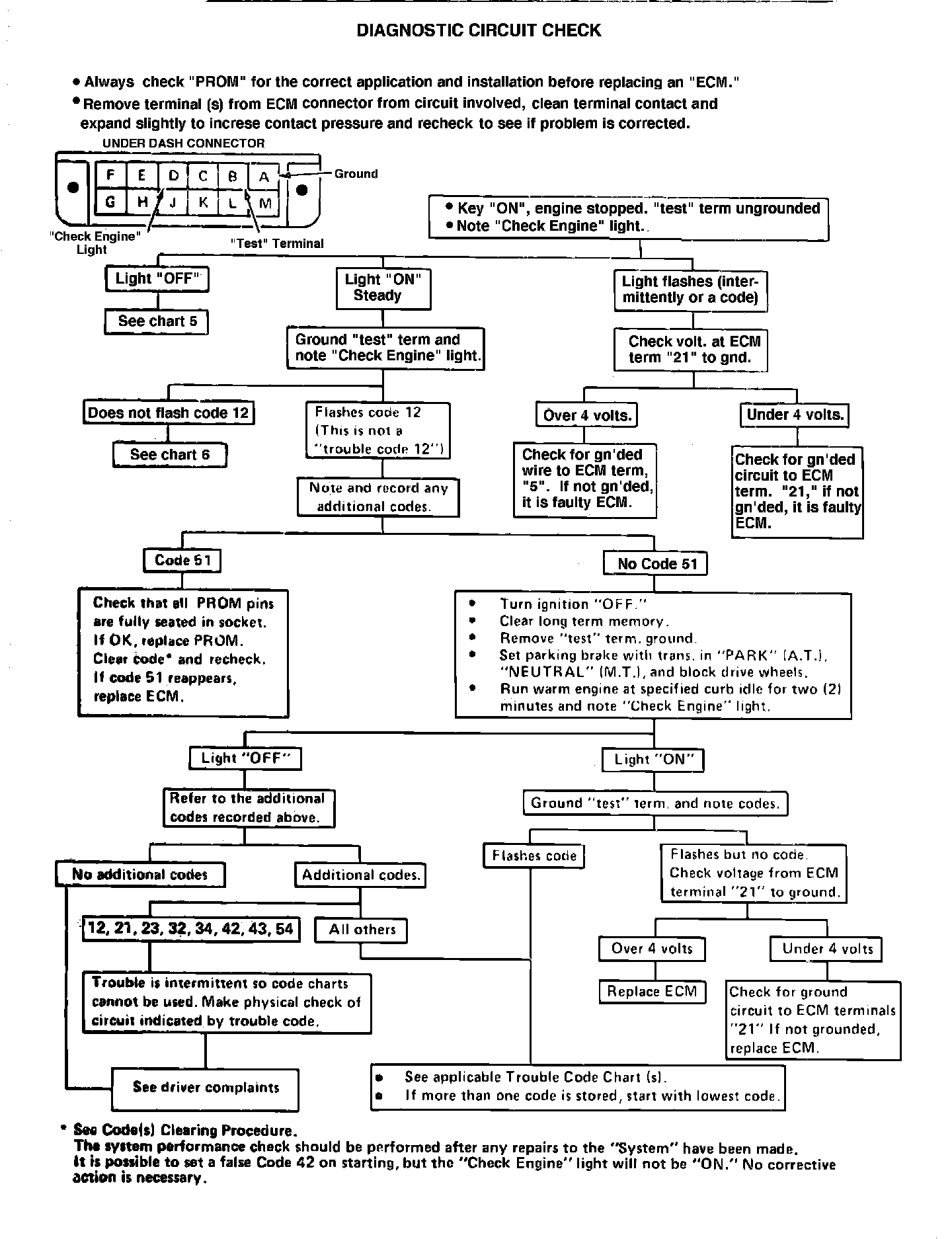

Fig. 004 -DIAGNOSTIC CIRCUIT CHECK:
