Home
>>
Chevrolet
>>
1982
>>
Chevette L4-98 1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

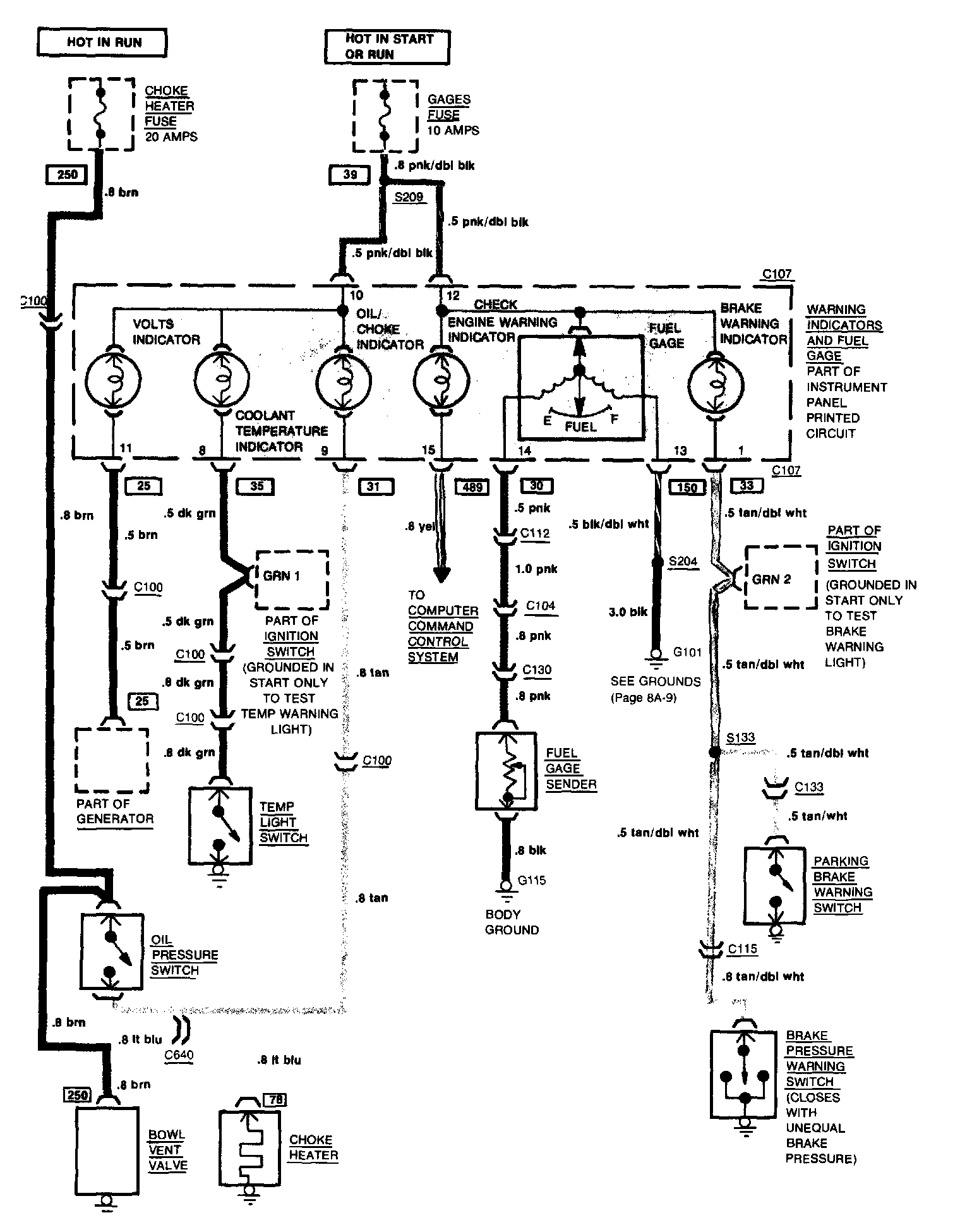

Temperature Warning Lamp/Indicator, Engine Cooling
Temperature Warning Lamp/Indicator, Engine Cooling
