Chevette L4-111 1.8L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

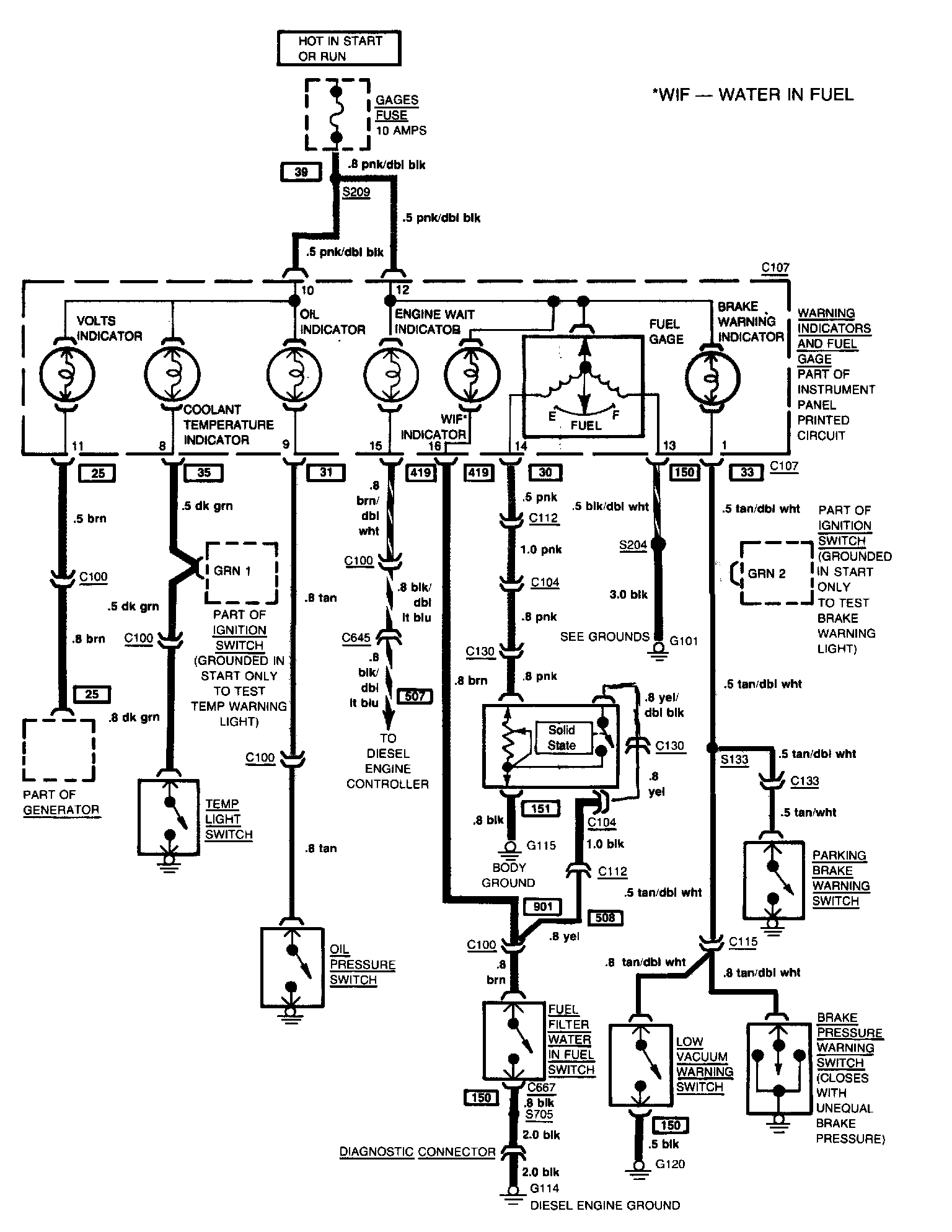

Temperature Warning Lamp/Indicator, Engine Cooling
Temperature Warning Lamp/Indicator, Engine Cooling
