Design and Clearance Specifications

Design and Clearance Specifications

3T40

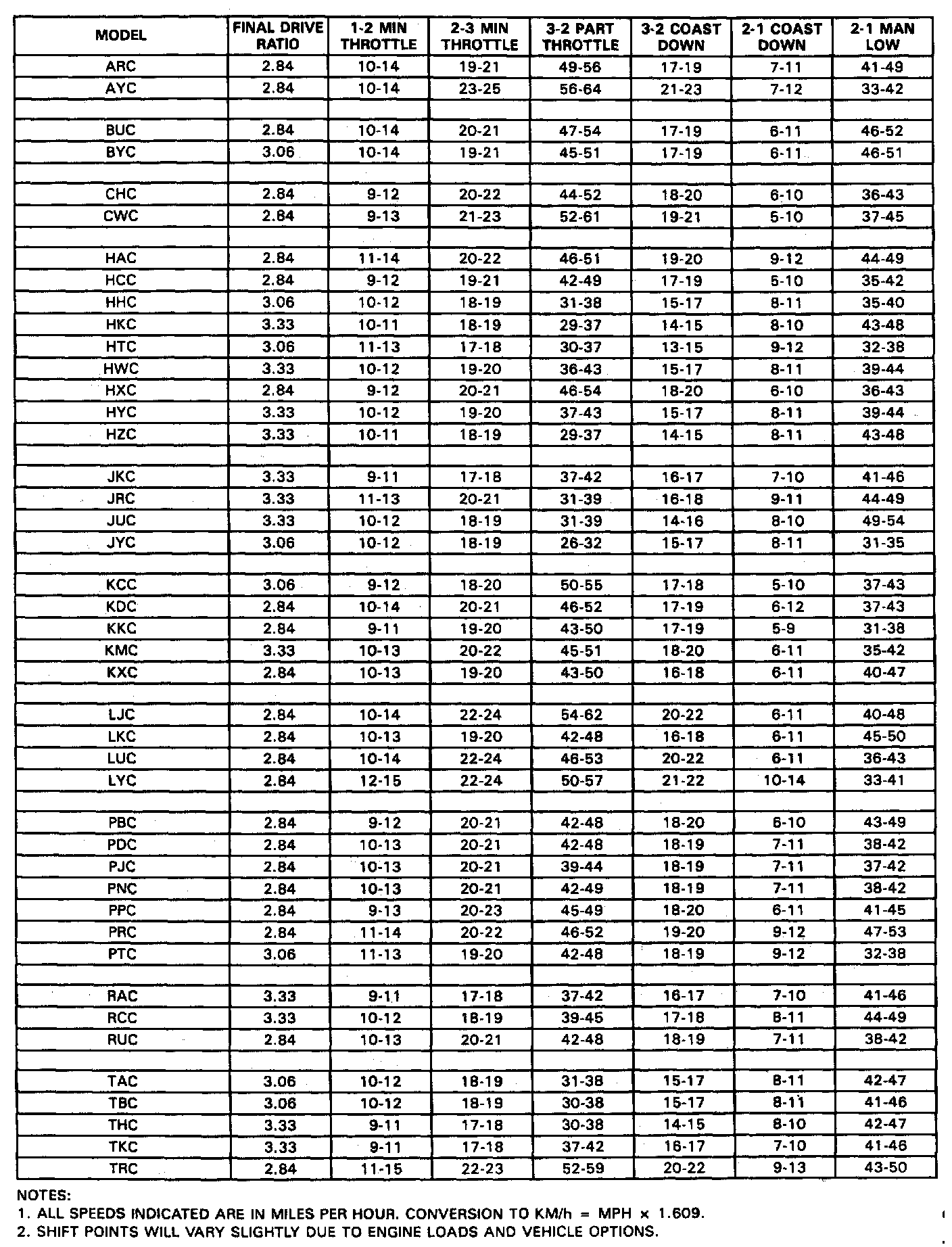

Shift Speed Chart:





Snap Ring Chart:





Lo Race Selective Spacer Chart:





Final Drive End Play Chart:

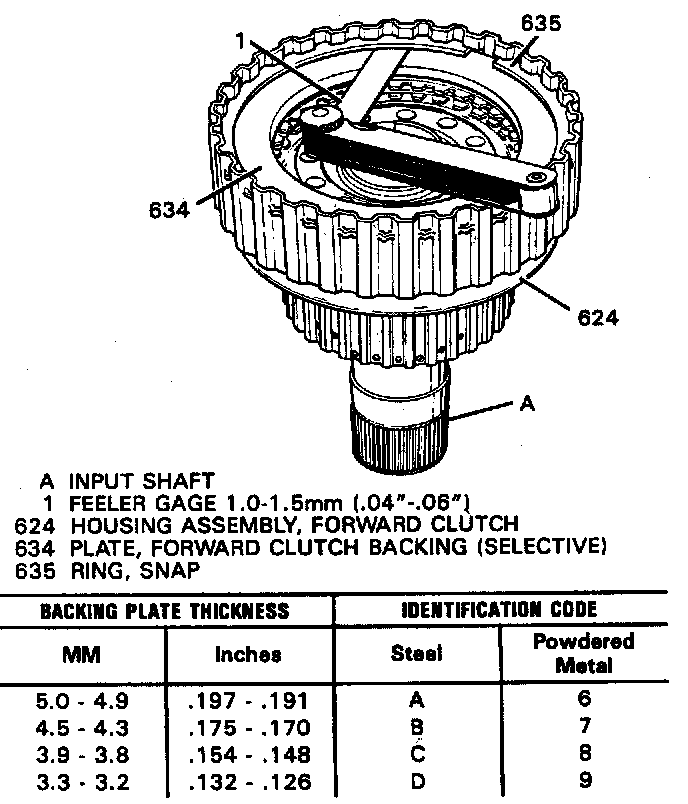

Forward Clutch Backing Plate Selection Chart:
