Fastener Specifications

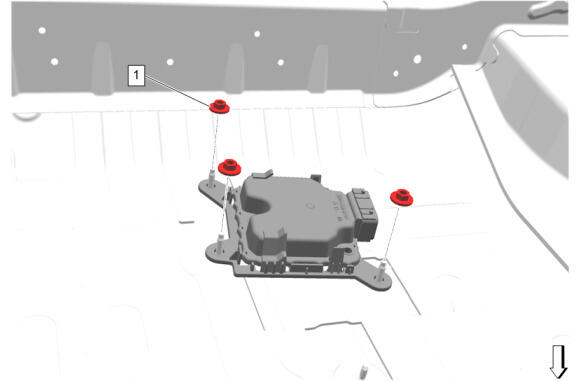

Electronic Suspension Control Module Bracket Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Electronic Suspension Control Module Bracket Nut [3x] | - | - | 9 N.m (80 lb in) | Suspension Controller Replacement |
