Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

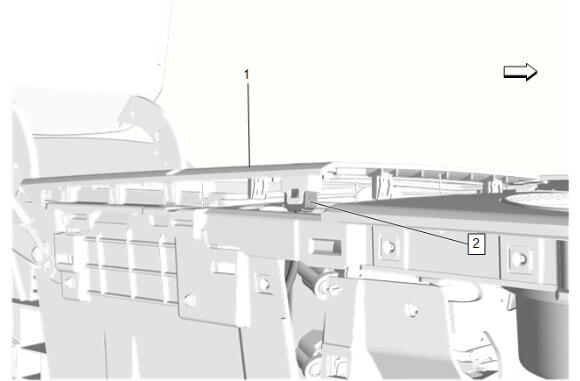

Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Remove
Front Floor Console Extension Bolt (2) - Remove
Using a flat bladed plastic trim tool, release the retaining clips.
Front Floor Console Extension Panel - Left Side (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat bladed plastic trim tool, release the retaining clips.
Reposition the component to access the tabs of the multimedia receptacle.
{If equipped} Disconnect the multimedia receptacle.
Front Floor Console Accessory Trim Plate (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Front Floor Console Extension Panel Bolt (1) - Remove
Using a flat bladed plastic trim tool, release the retaining clips.
Front Floor Console Upper Panel- Left Side (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat bladed plastic trim tool, release the retaining clips.
Front Floor Console Lower Applique - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat bladed plastic trim tool, release the retaining clips.
Front Floor Console Lower Applique - Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips and remove the front floor console applique (1).
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Cover Bolt (1) - Remove [4x]
Reposition the component to access the electrical connector.
Disconnect the electrical connector.
Front Floor Console Upper Panel (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat bladed plastic trim tool, release the retaining clips.
Front Floor Console Upper Panel Closeout (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Front Bracket Bolt (1) - Remove [7x]
Front Floor Console Intermediate Bracket- Left Side (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Using a flat bladed plastic trim tool, release the retaining clips.
Front Floor Console Extension Panel - Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Using a flat bladed plastic trim tool, release the retaining clips.
Front Floor Console Upper Panel- Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Front Bracket Bolt (1) - Remove [7x]
Front Floor Console Intermediate Bracket- Right Side (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips of the front floor console accessory switch mount plate (1) to access the audio player and USB receptacle tabs (2).
Disconnect the audio player and USB receptacle tabs (2) and position out the way.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Variable 1 Liner (1) - Remove
Using a flat-bladed plastic trim tool, release the remaining retaining clips.
Front Floor Console Accessory Switch Mount Plate (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Cup Holder Bolt (1) - Remove
Front Floor Console Intermediate Bracket Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector.
Front Floor Console Cup Holder (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Compartment Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Lift up the front floor console compartment (1) enough to access the fasteners of the wireless accessory charging module.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Wireless Charging System Module Bolt (1) - Remove [4x]
Disconnect the electrical connector.
Wireless Accessory Charging Module (2) - Remove
