Installation Procedure

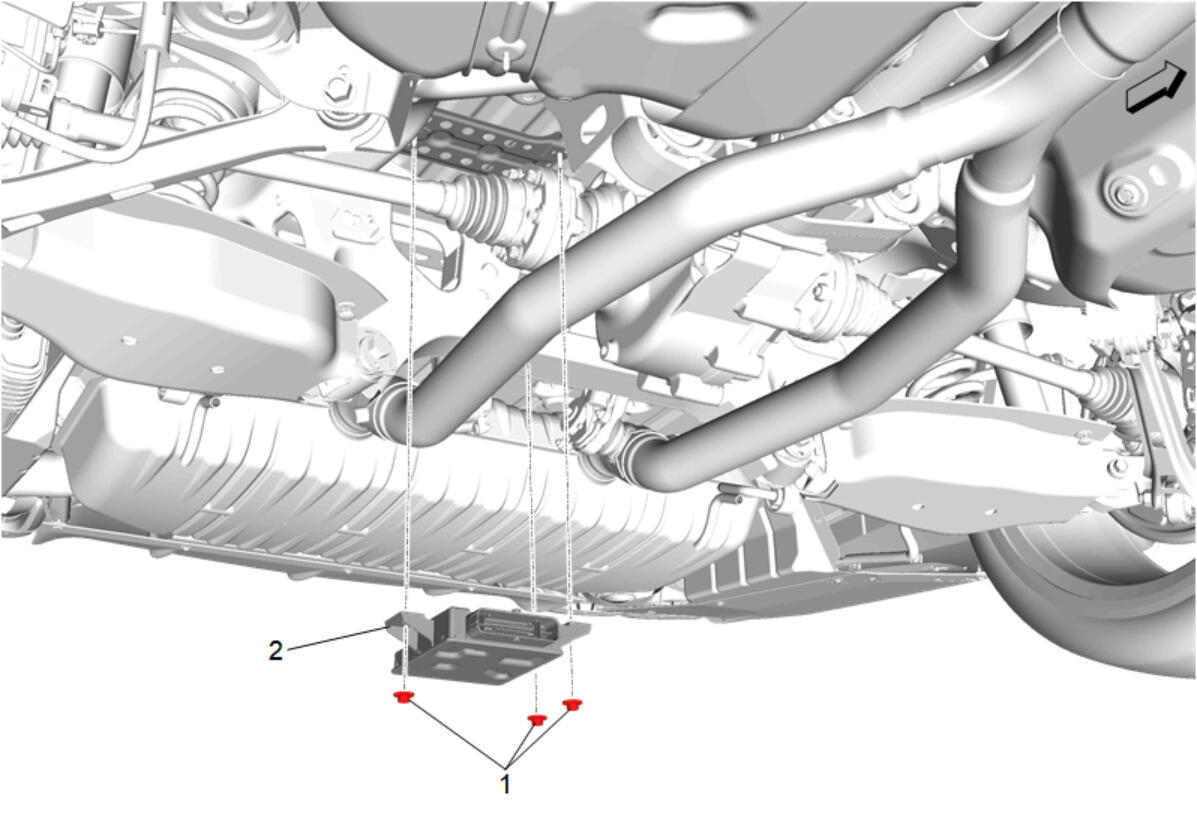

  1. GM5399176Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  3. Fuel Pump Power Control Module Nut (1) - Install and tighten [3x] - Fastener Specifications
  4. Connect the electrical connector.
  5. Lower the vehicle.
